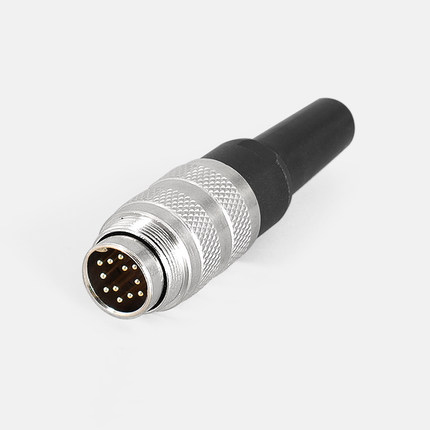

Elecbee Sensor connector M16 waterproof IP65 J09 male plug 12Pin connectors PG7
SKU: EB-400-3096-H
Favorites
Key Features
Features:
- Connector Series: M16 / J09
- Standard: IEC 61076-2-101
- Coding: A
- Pins: 2 3 4 5 6 7 8 12 14 19 24 Pin
- Gender: Male
- Connector Locking System: Fix the screw
- Ambient Temperature: -25°C~+85°C
- Connector Body: PA66+GF
- Contacts: Phosphorus copper with gold plated
- Screw/Nut: Brass with nickel plated
- Waterproof 0-ring: FKM
- Glue: Black epoxy resin
- Wire Jacket: PVC/PUR
Noted: J09 series connectors. It can be compatible with the Amphenol C091D series, Binder 423 series and 680 series. It is applied to industries such as instrumentation, sensors, automation control and communication.
Show More
In-Stock
Qty.
1
Unit Price
$ 6.26
Ext. Price
$ 6.26
$ 6.26
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
12 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated）
Rated Current
3A
Rated Voltage
60V
Connector Series
M16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
24AWG
Description
Elecbee Sensor connector M16 waterproof IP65 J09 male plug 12Pin connectors PG7
