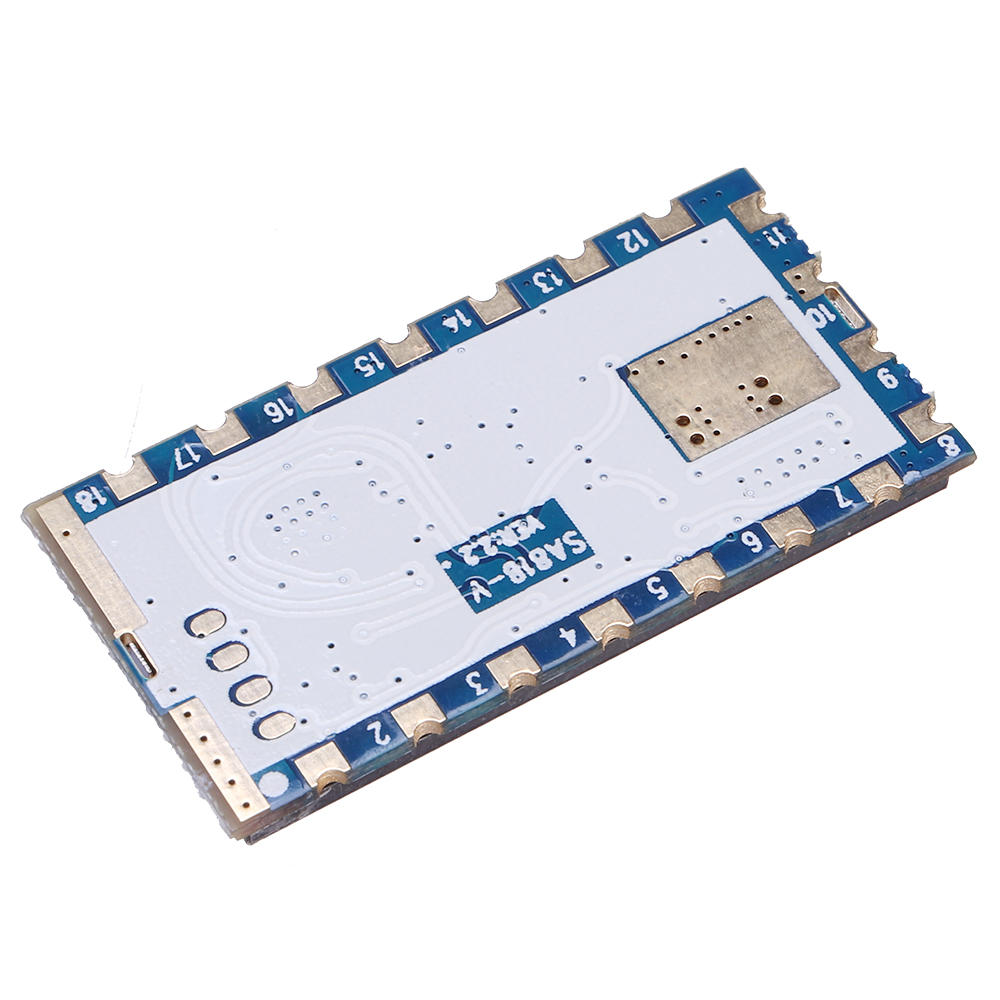

Elecbee SA818 VHF Very High Frequency 1W Wireless Walkie-talkie Module Intercom Module Embedded
SKU: EB0042853
Favorites
Key Features
● VHF band 134~174 MHZ
● Transmit receive frequency independent
● Bandwidth 12.5 KHz
● Output power up to 1W
● Open distance is 4-5 km
● High receiving sensitivity: -124 dBm
● Highly integrated small volume
● 38-level CTCSS analog sub-audio code
● 166-level positive phase, reverse phase CDCSS digital sub-audio
● 8 levels of squelch
● 8-level adjustable volume
● High and low power options (500mW-1W)
● Wide operating voltage 3.3-5.5 V
● Built-in EEPROM, data power-down save
● 1ppm TCXO crystal oscillator, stable performance
Show More
Datasheet
In-Stock
Qty.
1
Unit Price
$ 12.99
Ext. Price
$ 12.99
$ 12.99
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Model
SA818
Description
SA818 is a cost-effective integrated professional walkie-talkie module with built-in high-speed microcontroller, high-performance RF transceiver chip and RF power amplifier, and provides standard TTL serial port to communicate with the module, which can quickly and easily set the relevant parameters of the module and Transceiver function for control. Users only need to connect an audio amplifier, microphone, and speaker to this module to work as a small walkie-talkie. The simplified interface and ultra-small size make this module widely available, and can be easily and quickly embedded in various handheld devices to improve the overall performance of the terminal products.
1 x VHF Wireless Transceiver Module
