Elecbee 9:1 Impedance Transformer for Long-Wire Antennas, 100 kHz–50 MHz, BNC Female for SDR and HF Receivers

9:1 IMPEDANCE TRANSFORMER · 100 kHz–50 MHz · BNC FEMALE

Connect a Long-Wire Antenna to Your SDR or HF Receiver

This passive 9:1 transformer provides a convenient interface between a compatible long-wire antenna and receiver equipment with a BNC input across the supplier-specified 100 kHz–50 MHz range.

PASSIVE IMPEDANCE TRANSFORMATION

A Practical Interface for Long-Wire Reception

The transformer changes impedance at a 9:1 ratio to help interface a compatible high-impedance wire antenna with 50-ohm receiver equipment. It is a passive matching device—not an RF amplifier—and requires no external power.

CONNECTION PATH

Simple Antenna-to-Receiver Integration

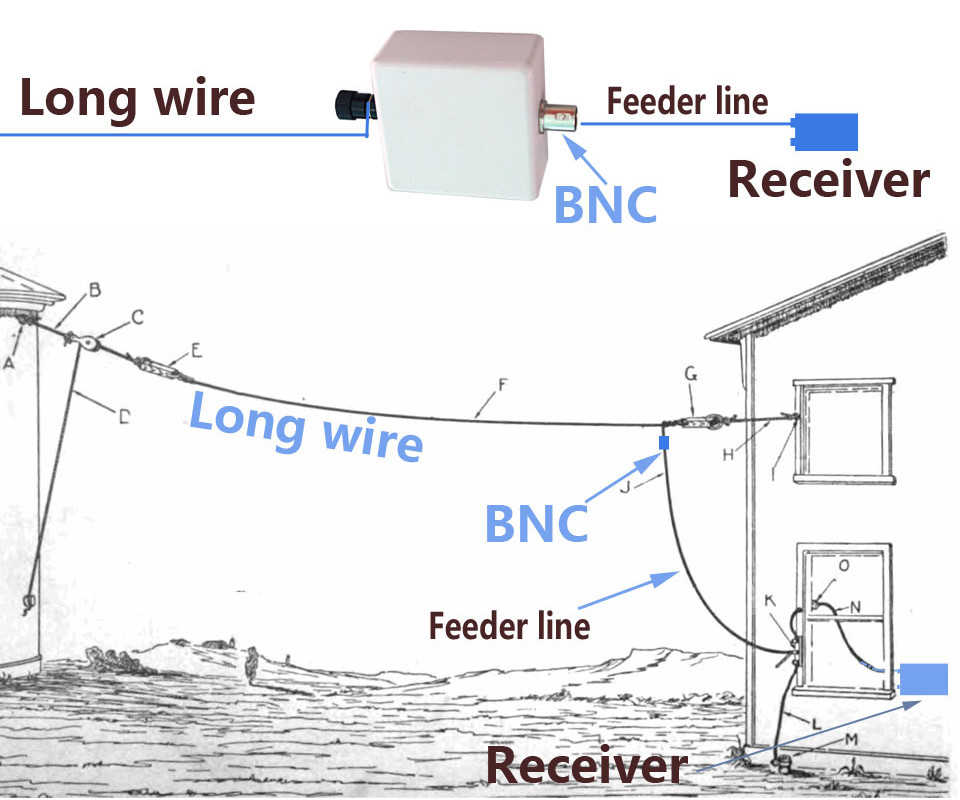

Connect the compatible long-wire antenna and ground or counterpoise as indicated by the product terminals, then connect the BNC female port to the receiver with the appropriate 50-ohm coaxial cable and mating BNC connector.

TECHNICAL DATA

Key Specifications

RECEIVING APPLICATIONS

For SDR, Shortwave and HF Listening Setups

Use with receiver equipment such as RTL-SDR, SDRplay, HackRF in receive mode, and HF or shortwave receivers that use a compatible BNC connection. Actual reception depends on antenna length, installation, grounding, local noise, propagation and receiver performance.

INSTALLATION NOTES

Check the Complete Antenna System

Use suitable outdoor installation practices and keep the antenna away from power lines. Select the coaxial lead and adapter required by your receiver; they are not identified as included with this item.
