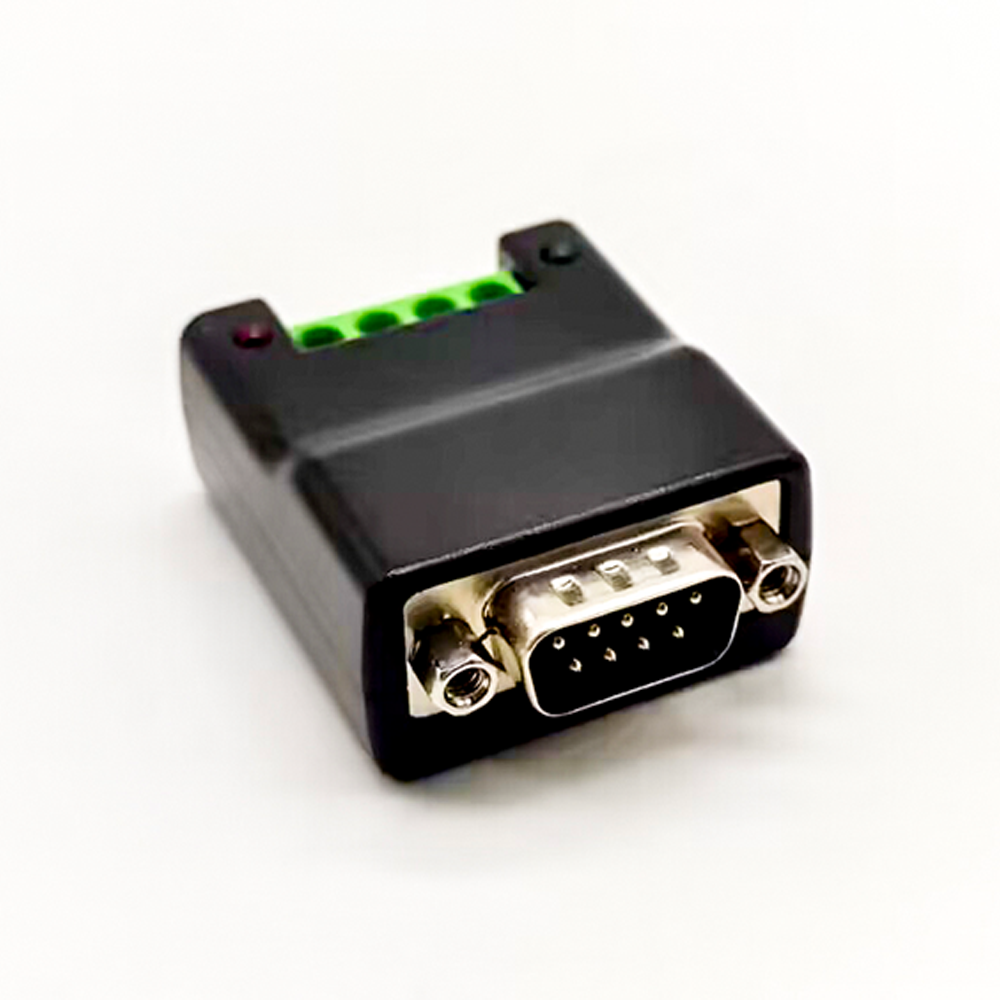

Industrial RS232 to RS485/RS422 Converter, DB9 Male to Terminal Block

Name: Industrial RS232 to RS485/RS422 Converter, DB9 Male to Terminal Block
Brand: Elecbee
SKU: EB-640-0076
Price: 1970 JPY
Availability: InStock

SKU: EB-640-0076

Favorites

Key Features

Industrial-Grade Reliability: Built-in 600W surge protection and 15KV ESD protection for stable operation in extreme environments (-40°C to 85°C).
Port-Powered Architecture: Operates directly via RS232 data lines; no external power supply required for simplified field deployment.
Flexible Connectivity: Supports full-duplex RS422 (4-wire) and half-duplex RS485 (2-wire) modes; includes jumper-selectable 120Ω termination.
Extended Signal Range: Extends serial communication distances up to 1.2 kilometers (4000 feet) without signal degradation.
Plug-and-Play Installation: Automatic data direction control; no software drivers, handshaking, or flow control configurations required.

Specifications

Show Similar Products >

Attribute

Value

Number of Rows

1st Contact Type

Male Pin

2nd Contact Type

Female Pin

Conversion Series

Different Series

Convert From(Adapter 1)

DB9

Convert To(Adapter 2)

Terminal

Adapter Style

Right angle

1st Connector Number of Positions

9 Pin

2nd Connector Number of Positions

5 Pin

Show Similar Products >

Description

This Industrial-Grade Serial Converter is designed for mission-critical applications requiring reliable data transmission between RS232 and RS485/RS422 interfaces. Whether in a server room or a remote industrial site, this converter ensures seamless communication across distances up to 1.2 kilometers.

The module is fully port-powered, eliminating the need for bulky external adapters. Key technical features include:

Automatic data direction detection for true plug-and-play operation
Wide baud rate support: 300 bps to 115.2 Kbps
Durable terminal block included for secure screw-down wiring
Rugged design capable of withstanding industrial temperature ranges

This device handles the conversion from full-duplex RS232 to either half-duplex (2-wire) RS485 or full-duplex (4-wire) RS422. The user-selectable 120-ohm termination jumper provides the flexibility needed for various network topologies, ensuring signal integrity in complex automation and control environments.
