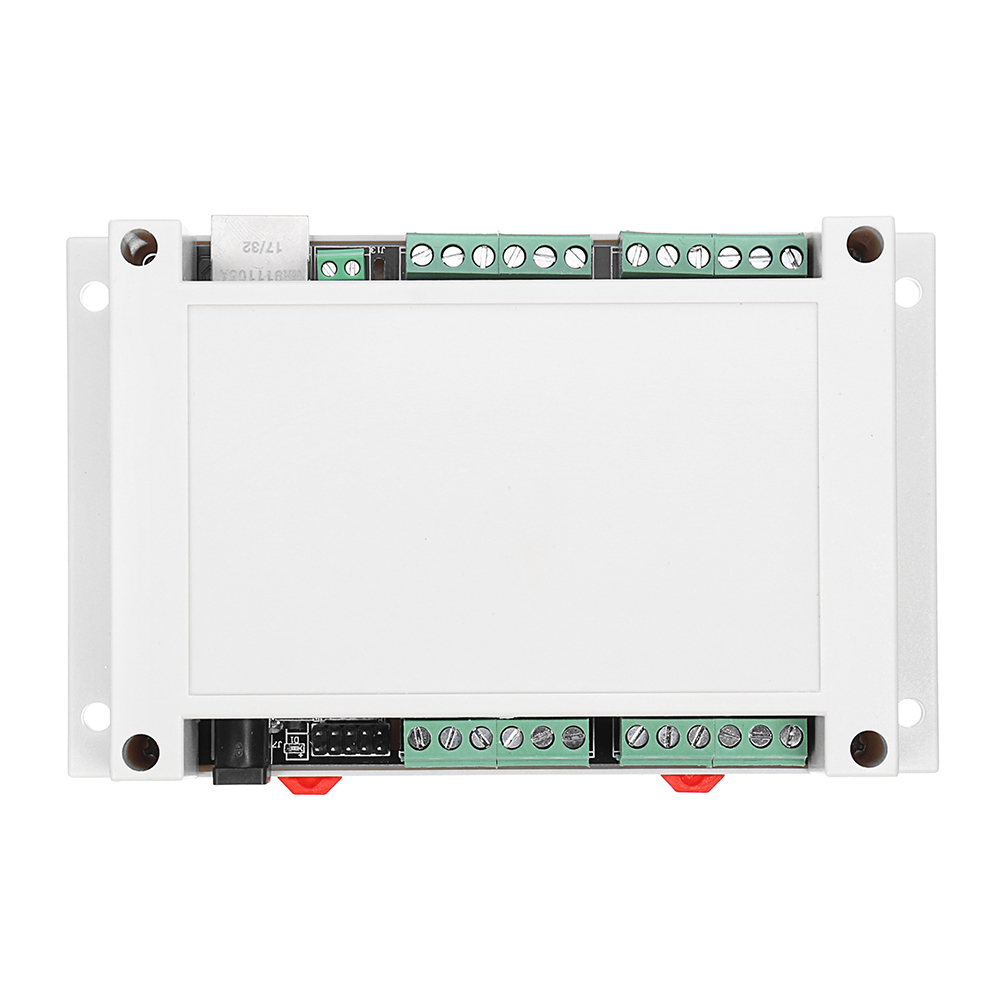

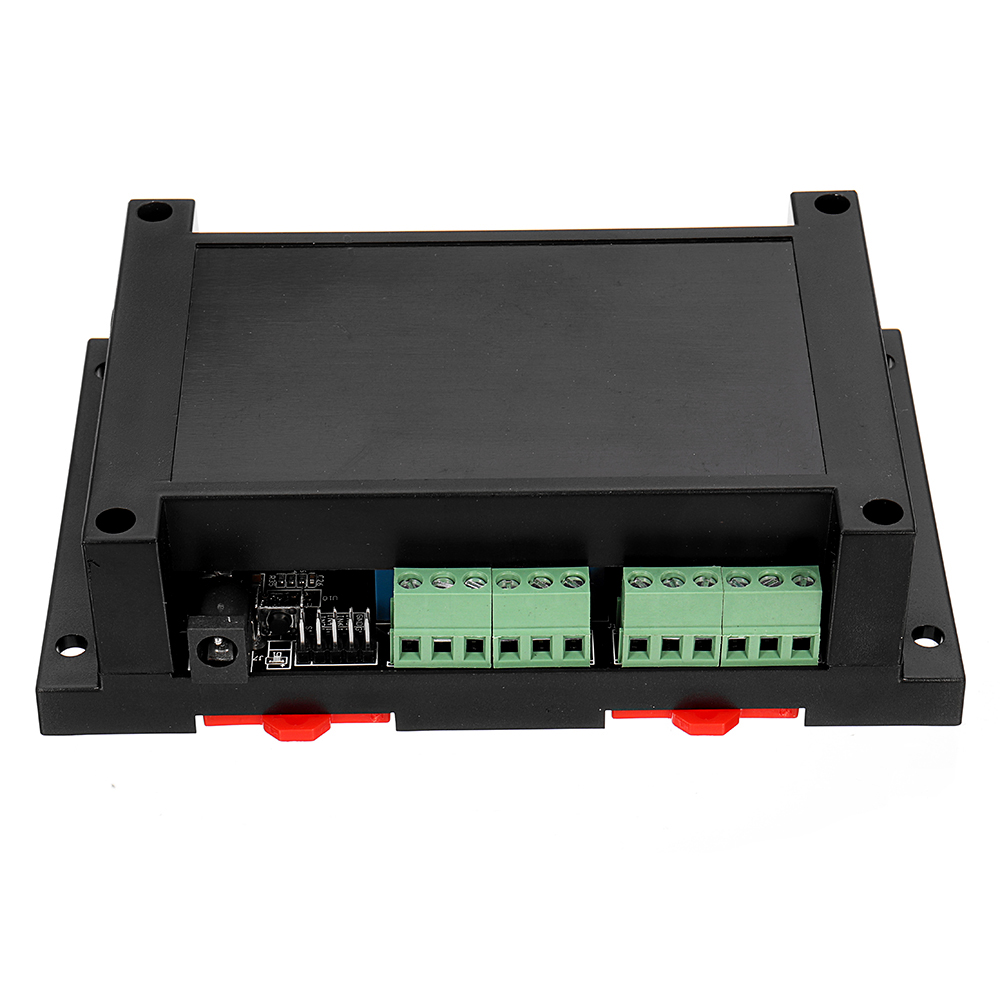

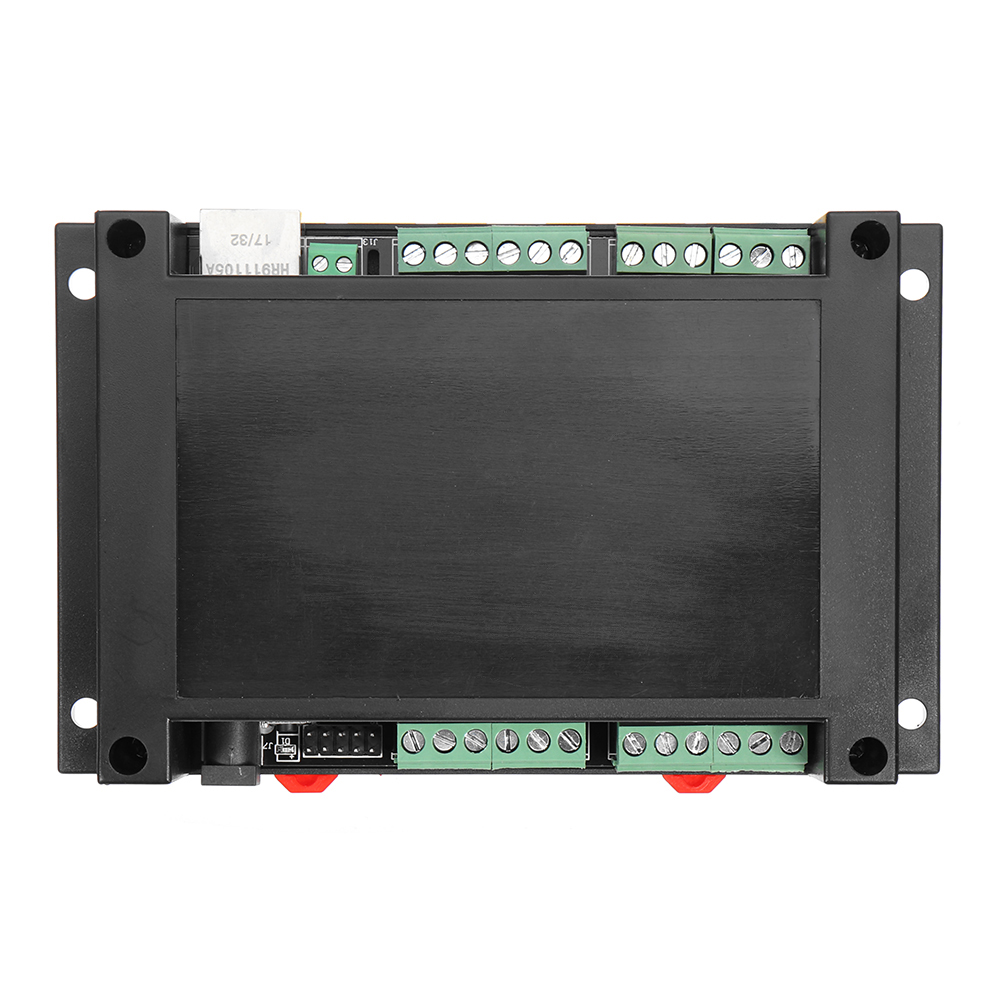

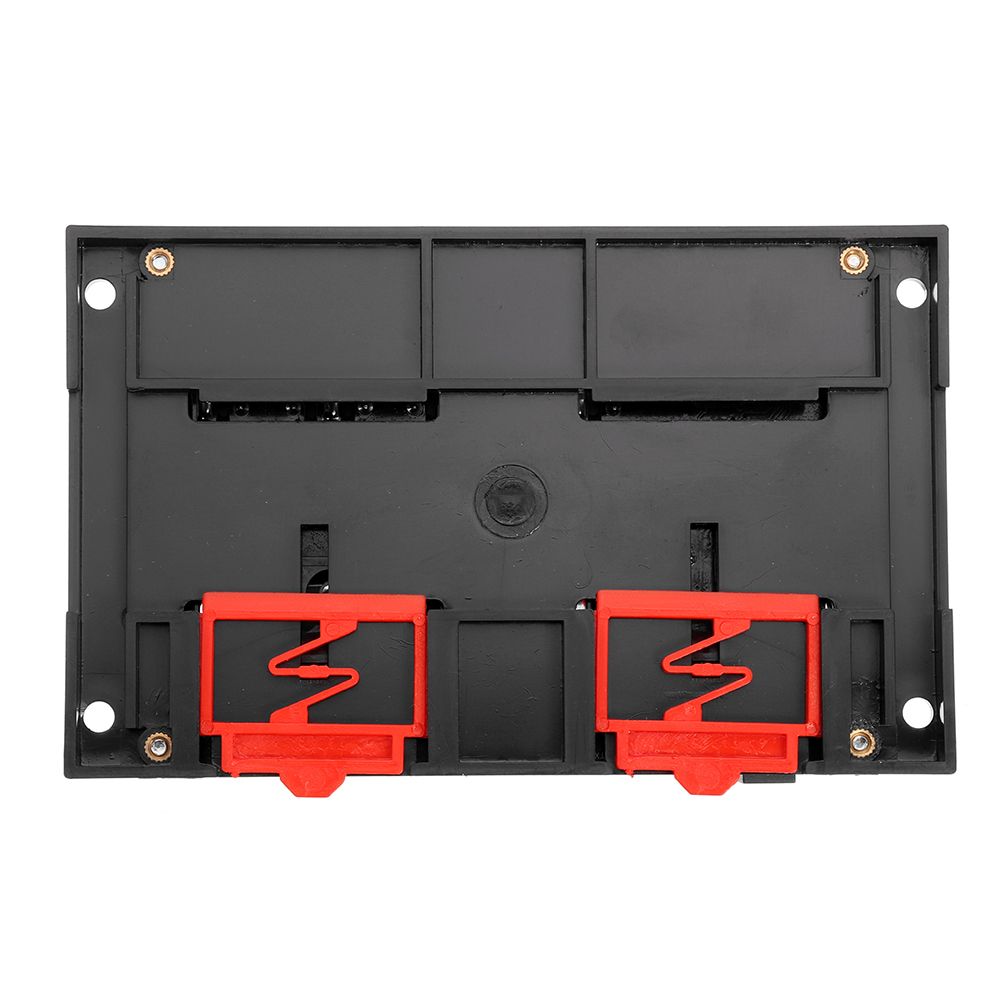

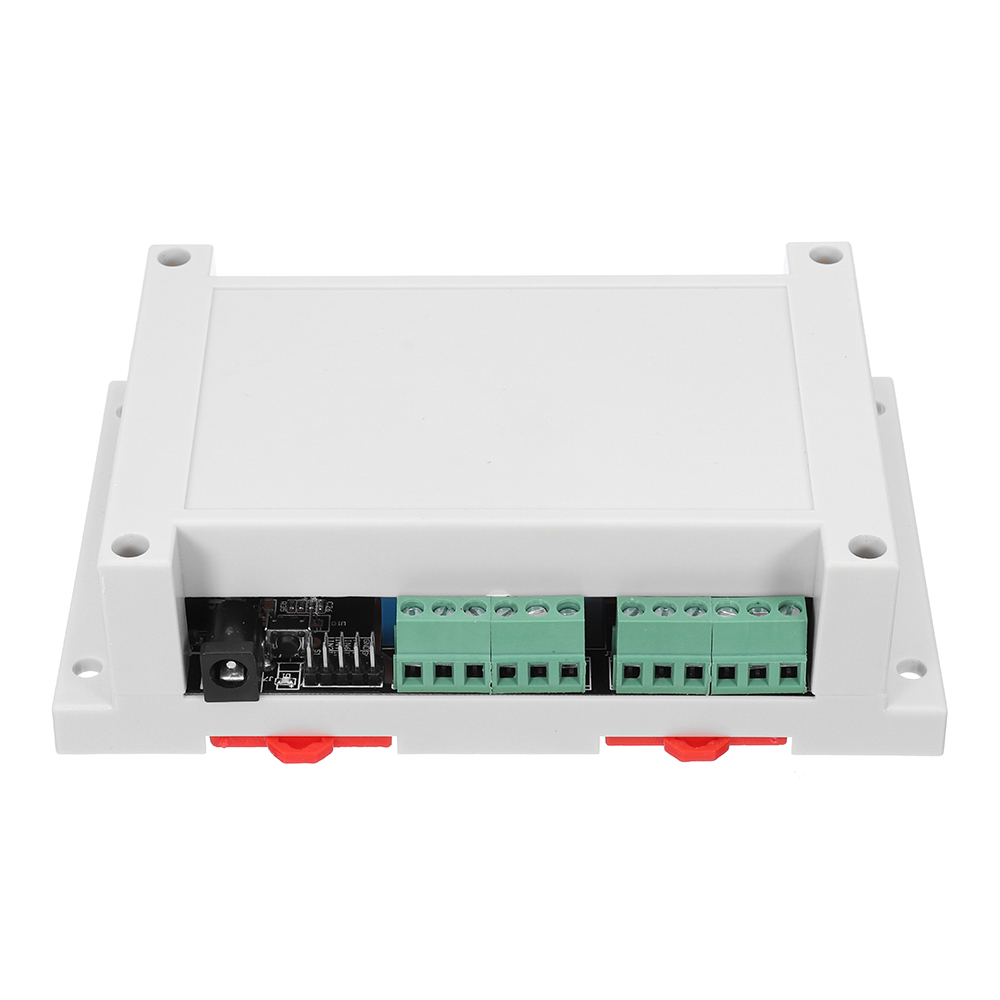

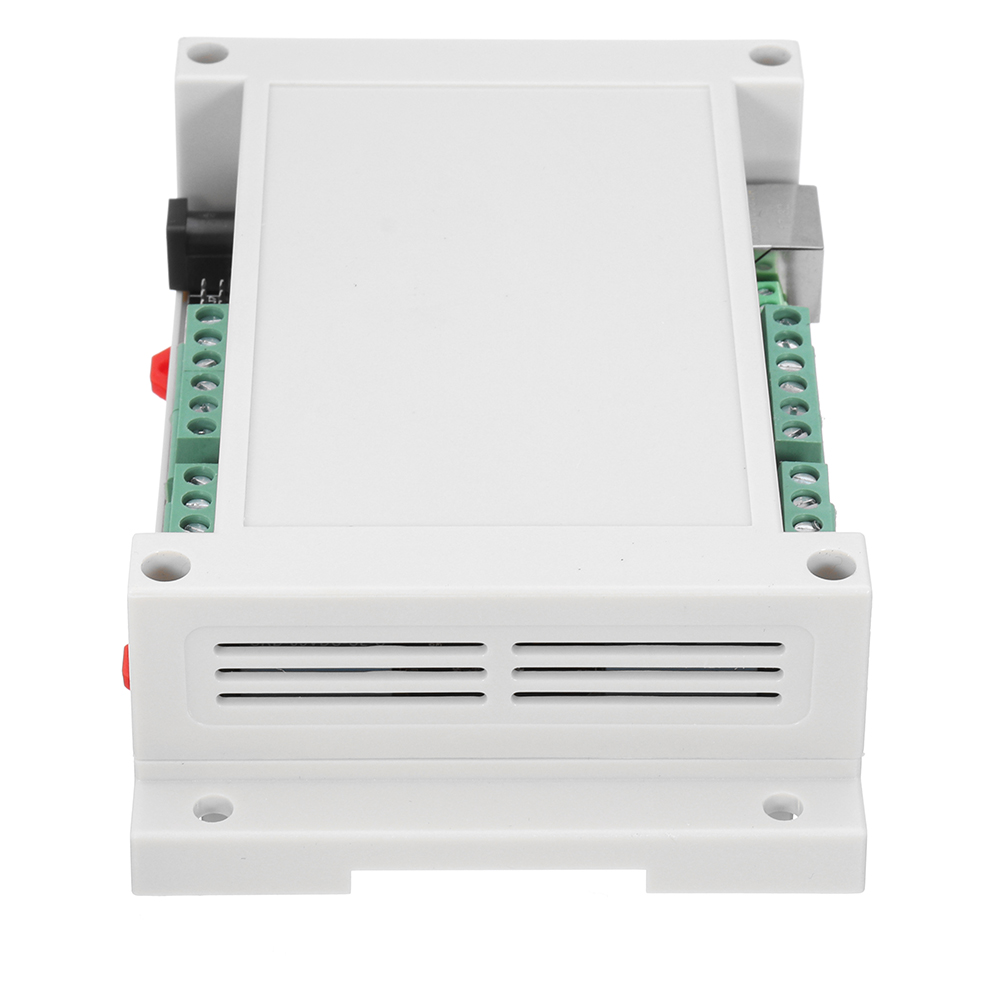

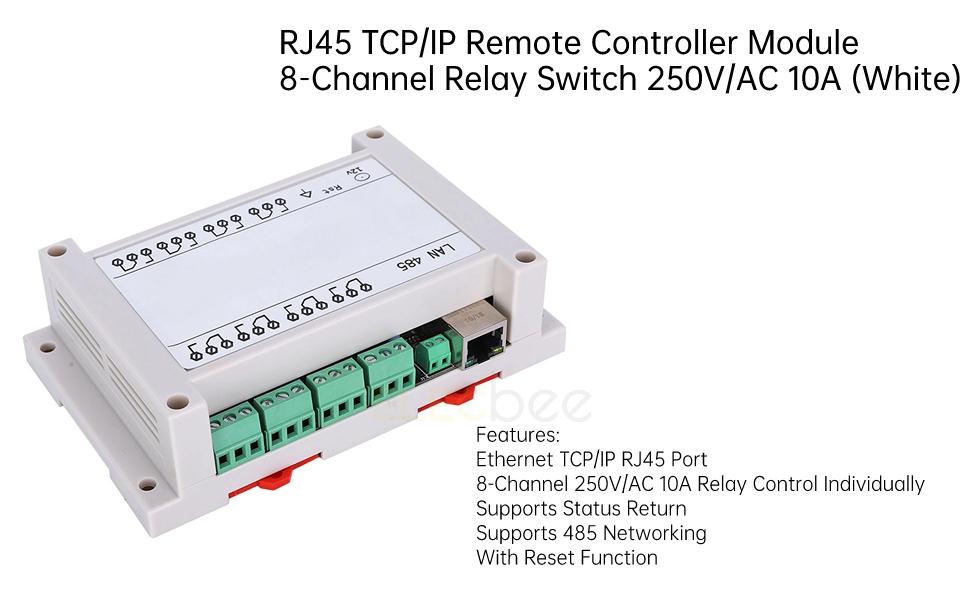

Elecbee RJ45 TCP/IP Remote Controller Module 8-Channel Relay Switch 250V/AC 10A with Case

SKU: EB0047256

Favorites

Key Features

Features:

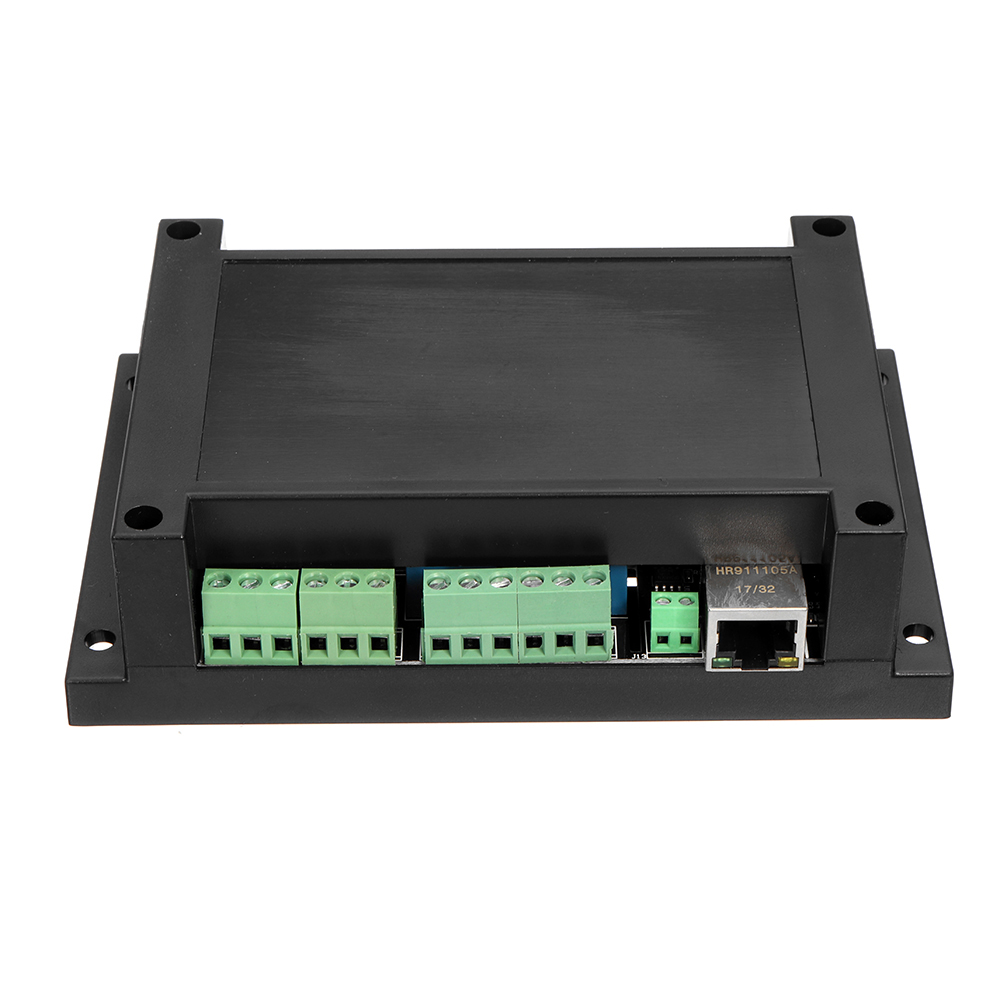

【TCP/IP RJ45 Port】: Our 8-channel remote control board module is equipped with Ethernet TCP/IP RJ45 port, and the IP port can be modified, it also supports 485 networking, so you can rest assured to use
【8-Channel】: This TCP/IP remote control relay switch adopts 8-Channel 250V/AC 10A relay control individually, which has 8 external control outputs and active low level, and they can control switch or sensor, etc
【Internal Circuit Our Ethernet RJ45 relay module supports Internal circuit protection, which has optocoupler to prevent from external voltage , so you don’t need to worry about the voltage problems
【Reset Function】: This 250V remote control board module owns reset function, users can make a short press to reset, and they can also make a long press to restore factory setting. And it also supports status return, which can display current status of the relays
【Re-engineering】: This AC 10A 8 channels relay module provides protocol for re-engineering, when connected to router, it allows access control via Android, Tablet, system from anywhere in the world with network

Datasheet

EB0047256

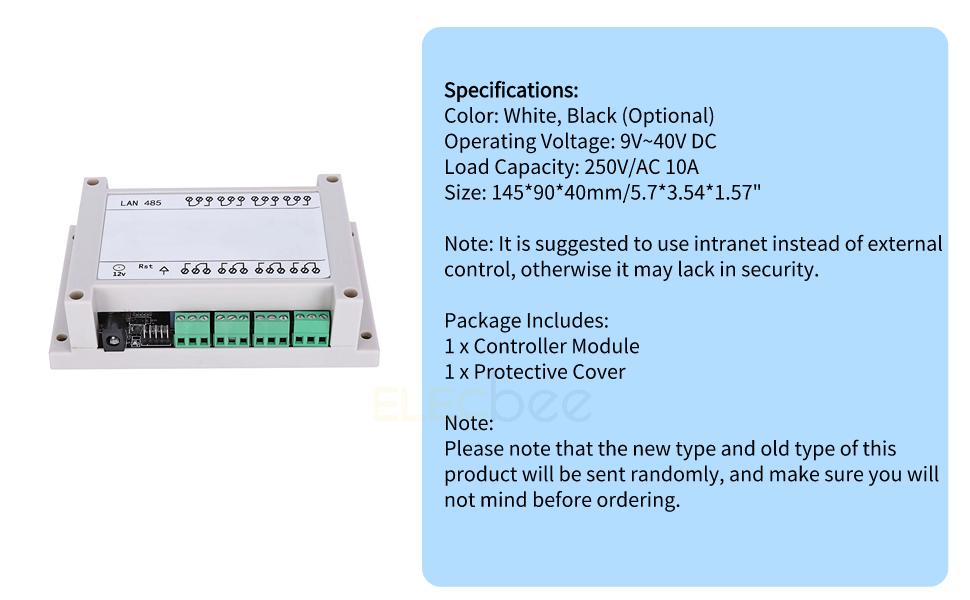

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Ethernet

Support

Show Similar Products >

Description

Manual: https://img.elecbee.com/ic/download/pdf/201807200256168CH-WEB-en-.pdf

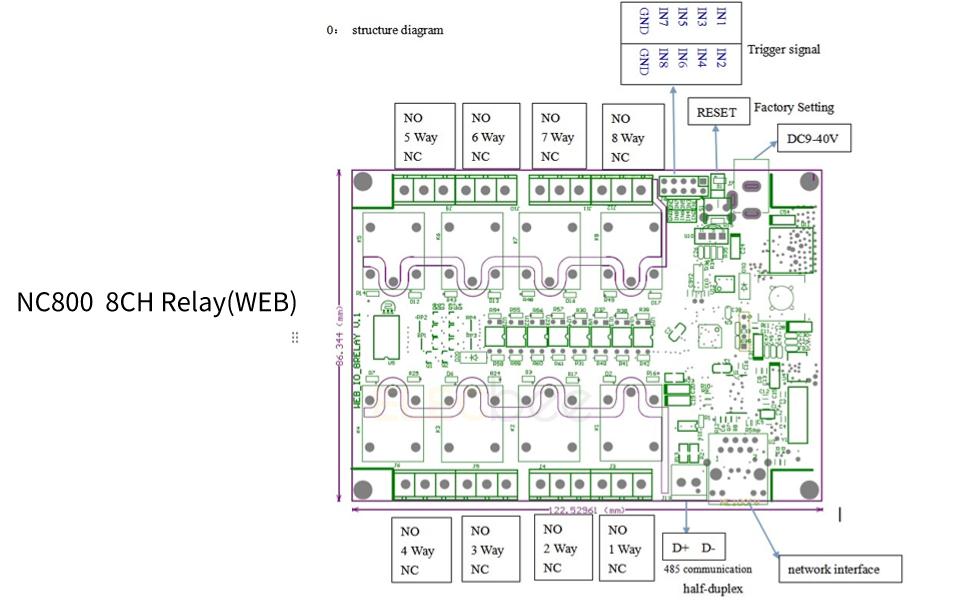

1： trigger signal input

IN1-IN8 has two way s to be inputted：A：Non-contact signal, release after IN ground

B：latch signal， IN ground can control the corresponding relay switch

2： serial port communication protocol

1 way open： FD 02 20 01 01 5D

1 way close： FD 02 20 01 00 5D

2 way open： FD 02 20 02 01 5D

2 way close： FD 02 20 02 00 5D

3 way open： FD 02 20 03 01 5D

3 way close： FD 02 20 03 00 5D、

4 way open： FD 02 20 04 01 5D

4 way close： FD 02 20 04 00 5D

5 way open： FD 02 20 05 01 5D

5 way close： FD 02 20 05 00 5D

6 way open： FD 02 20 06 01 5D

6 way close： FD 02 20 06 00 5D

7 way open： FD 02 20 07 01 5D

7 way close： FD 02 20 07 00 5D

8 way open： FD 02 20 08 01 5D

8 way close： FD 02 20 08 00 5D

1-8 way open： FD 02 20 F8 88 5D

1-8 way close： FD 02 20 F8 80 5D

Back: FB 21 55 xx XX FF : xx XX eac byte means 1ch high byte corresponding to the 16ch, low byte corresponding to 1ch

3： Network controller port

IP: 192.168.1.4

port number： 30000

4 Long press “RESET” till the light is out. Then it will restore the factory default IP and port number.

Features:

Ethernet TCP/IP RJ45 port, IP port can be modified.
WEB server allows accessing and controlling the relay via WEB.
8-Channel 250V/AC 10A relay control individually.
8 external control outputs and active low level can control switch or sensor, etc.
Provide protocol for re-engineering, when connected to router, it allows access control via for Android, Tablet, for Windows system from anywhere in the world with network.
Supports status return, can display current status of the relays
With Reset function, short press to reset, long press to restore factory setting.
Supports 485 networking.
Supports Internal circuit protection, with optocoupler to prevent from external voltage surge.

RJ45-TCPIP-WEB-Remote-Control-Board-With-8-Channels-Relay-Integrated-250VAC-485-Networking-Controlle-1311916
