Ultra-Wide Frequency Range: Operates from 0.1MHz to 3000MHz, making it suitable for VHF, UHF, and microwave frequency measurements.
Superior Measurement Accuracy: Features a return loss greater than 35dB for precise SWR (Standing Wave Ratio) characterization and tuning.
Universal SMA Connectivity: Equipped with standard SMA female connectors for easy integration with network analyzers and signal generators.
Compact & Lightweight Design: The 45x90mm PCB footprint and 28g weight make it highly portable for field testing and lab bench use.
Essential RF Tool: Ideal for measuring antenna performance, filter characteristics, and impedance matching in professional and DIY setups.

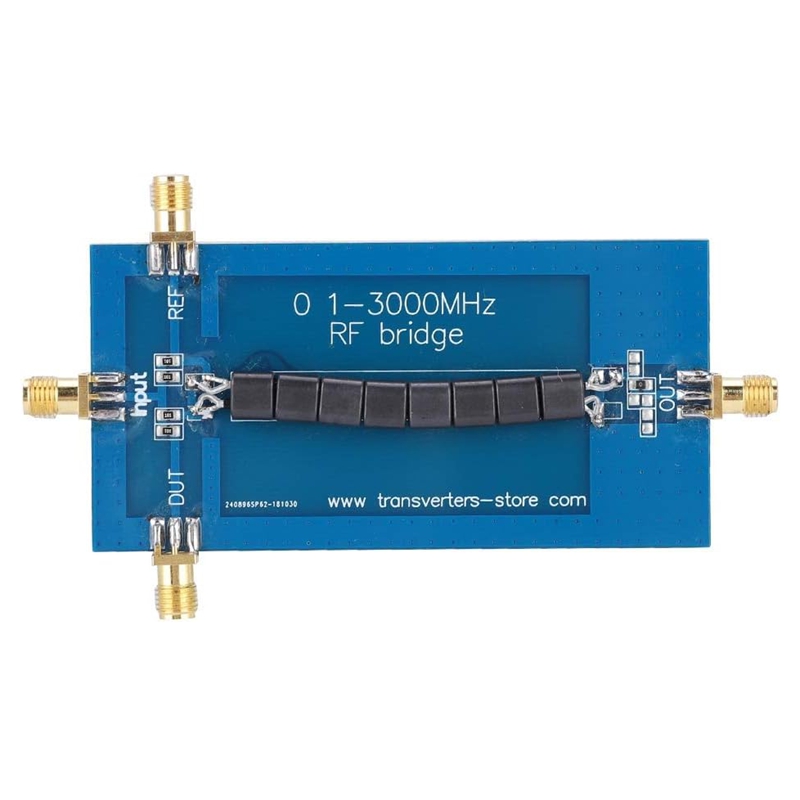

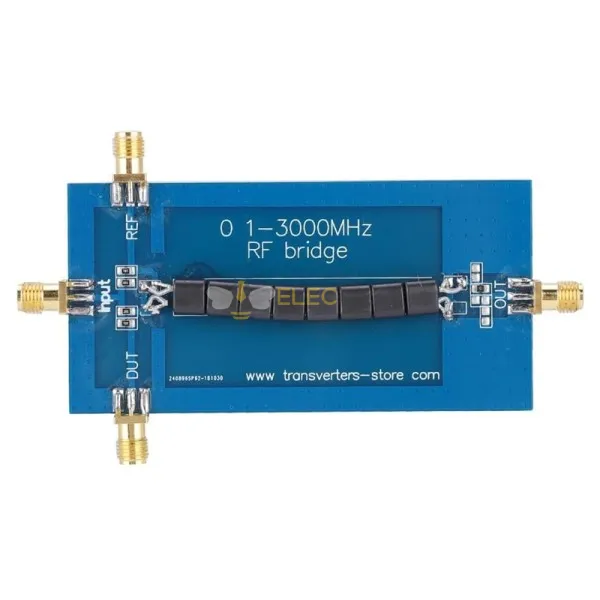

The Elecbee RF SWR Bridge is a precision measurement tool designed for RF engineers and radio enthusiasts who require accurate antenna tuning and circuit analysis. Covering a massive frequency spectrum from 0.1MHz to 3GHz, this bridge eliminates the need for multiple specialized components, providing a single, reliable solution for checking standing wave ratios across diverse bands.
Built on a high-quality PCB, this module is optimized for high directivity and low insertion loss. Key technical specifications include:
Whether you are performing maintenance on communication systems or developing new DIY radio projects, this RF Standing Wave Bridge delivers the stability and performance required for sensitive measurements. Its lightweight, 28-gram construction ensures it can be integrated into portable test kits without adding bulk, while the military-grade PCB ensures long-term durability under constant use.
