Elecbee HMC849 RF Switch Module Up to 6GHz 3-5V 50 Ohm SMA Female Input Output for RF Signal Routing

HMC849 DC-6GHz SPDT RF Switch Module

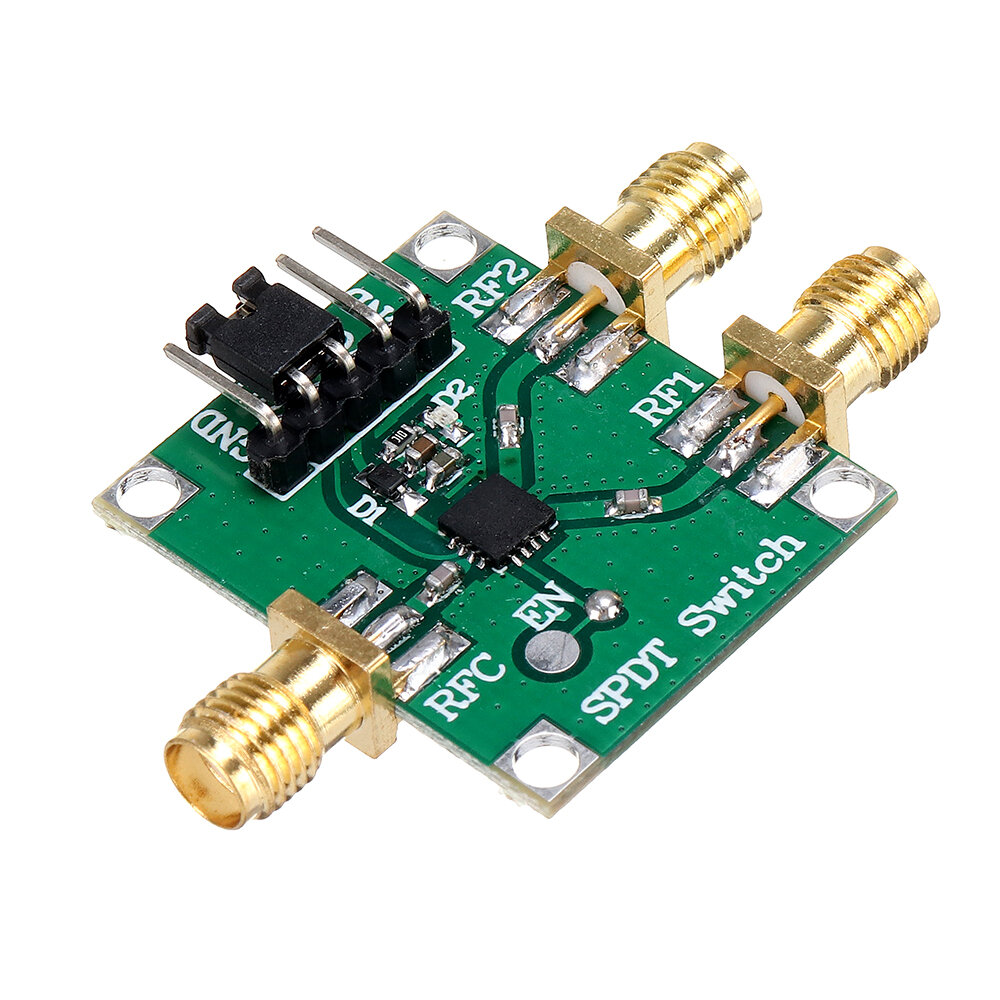

The Elecbee HMC849 RF switch module provides SPDT radio-frequency signal switching and path selection for RF test equipment, communication circuits and engineering prototypes. Its non-reflective RF switch architecture supports operation from DC to 6GHz with a 3-5V supply and 50Ω signal-path impedance.

Technical Specifications

• Brand: Elecbee
• Model: HMC849
• Product type: SPDT RF switch module
• Switch architecture: Non-reflective
• Operating frequency range: DC to 6GHz
• Supply voltage: 3-5V DC
• RF input and output impedance: 50Ω
• RF interfaces: SMA female connectors
• SMA structure: External thread with female center contact
• PCB dimensions: 25 × 30mm, excluding the protruding SMA sections
• Insertion loss and isolation: Refer to the applicable module S21 parameter data

RF Testing and Signal-Routing Applications

The module is suitable for RF signal-path selection, laboratory measurements, wireless communication development, RF test fixtures, transceiver prototypes and embedded radio-frequency equipment. Its SPDT configuration allows a common RF path to be switched between two signal paths in compatible system designs.

50Ω RF System Integration

The 50Ω RF architecture supports integration with compatible spectrum analyzers, signal generators, coaxial cable assemblies and communication circuits. SMA female interfaces connect with compatible SMA male cables, adapters and RF test leads.

Engineering Integration

The compact 25 × 30mm PCB supports integration into RF prototypes, laboratory fixtures and embedded assemblies. Before use, verify the module control connections, supply requirements, insertion loss, isolation and S21 performance against the intended operating frequency and system design.
