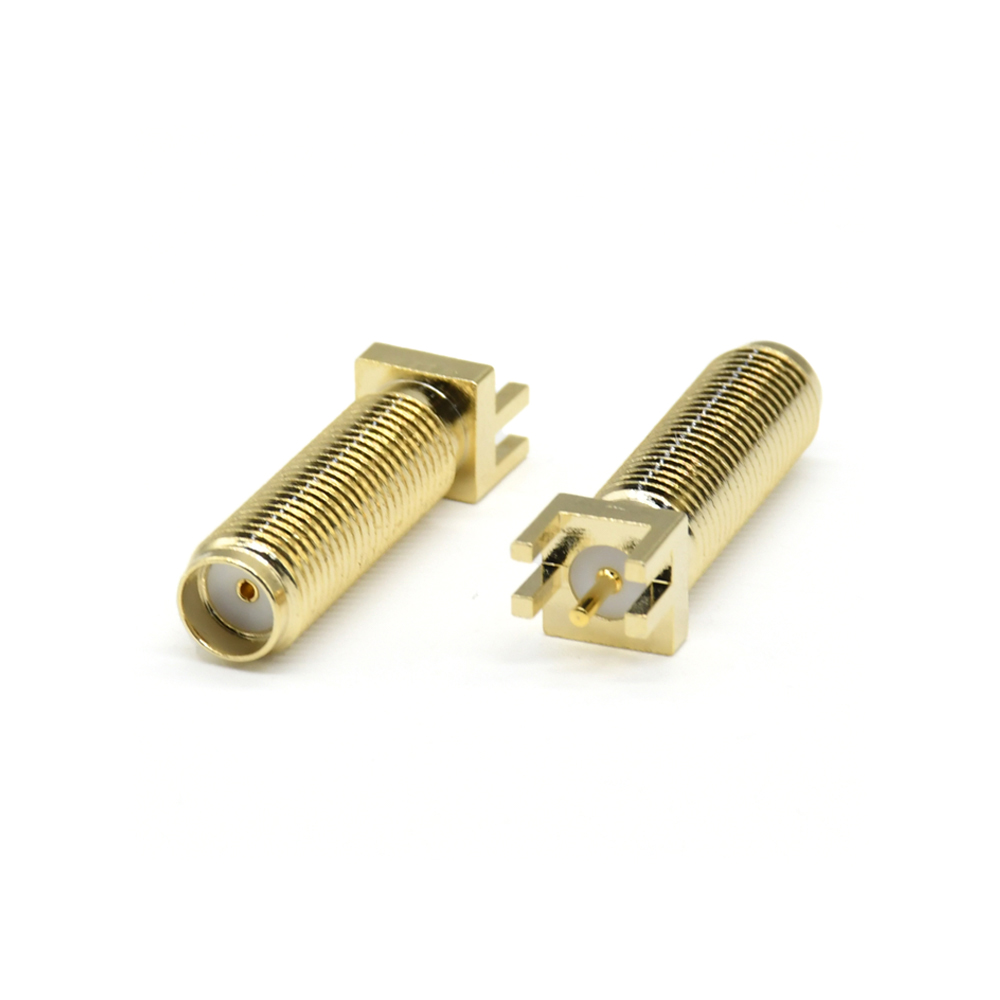

RF Jack, SMA Female for PCB, Board Edge Mount, Long Screw, Assembly
SKU: EB-SMA-BMT-ST-F-L-6-011
Favorites
Key Features
- SMA Jack interface with Female Socket contact
- Board Edge, End Launch; Panel-mount with Bulkhead - Front Side Nut
- Solder contact termination and Solder shield termination
- 50 Ohms impedance; rated up to 6 GHz
Show More
Datasheet
In-Stock
Qty.
1
Unit Price
$ 1.67$ 1.96
Ext. Price
$ 1.67$ 1.96
$ 1.67$ 1.96
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Board Edge, Straddle Mount
Mounting Feature
Bulkhead - Front Side Nut
Termination
Solder
Contact Type
Female Pin
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
SMA
Color
Gold
Fastening Type
Threaded
Orientation
Straight
Shield Termination
Solder
Description
EB-SMA-BMT-ST-F-L-6-011 is a SMA Jack with female socket contact for PCB, panel, antenna, and RF equipment designs. It uses a board edge, end launch; panel-mount configuration with bulkhead - front side nut and is specified for 50 Ohms impedance with operation up to 6 GHz. The connector supports Solder contact termination, Solder shield termination, threaded for reliable RF interconnection in wireless devices, antenna systems, RF modules, and test fixtures.
