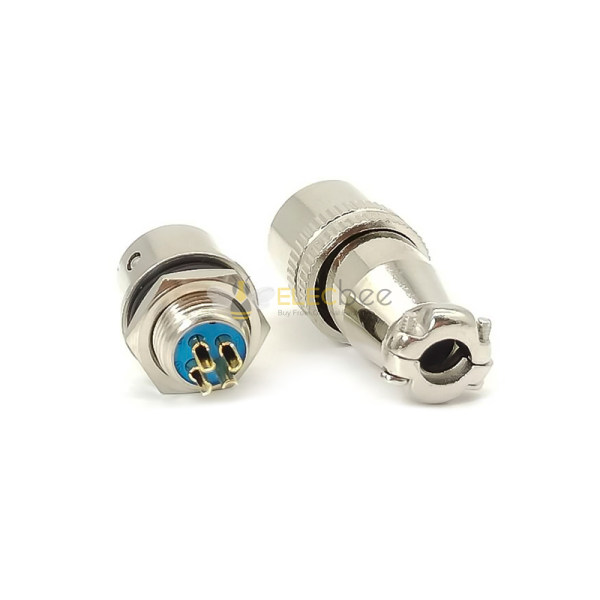

Elecbee Quick Aviation Connector XS9 4P Terminal Cable Connector

SKU: EB-408-4003
Favorites

Key Features

Quick Connection: This XS9 4 pin straight circular connector set uses a push-pull ball lock for fast mating and release and includes a plug and receptacle.
Contact Finish: Gold-plated copper alloy contacts provide good conductivity and resist corrosion and oxidation.
Compact Installation: The compact, lightweight design supports rear nut bulkhead mounting with solder cup termination. Rated for 3A and 200V. The receptacle is sealed.
Applications: This circular instrumentation connector supports communication, video, navigation, marine, rail and electromechanical equipment wiring.

Show More

Specifications

Number of Positions:
2 Pin3 Pin4 Pin5 Pin
In-Stock
Qty.
1
Unit Price
$ 1.78
Ext. Price
$ 1.78
$ 1.78
Qty.
Unit Price
Ext. Price
10+
$1.69
$ 16.90
100+
$1.51
$ 151.00
Inquiry for more quantity?
Specifications
Show Similar Products >
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder Cup
Contact Type
Male，Female Pin
Shell Finish
Nickel Plated
Number of Positions
4 Pin
Operating Temperature
-20℃~+85℃
Rated Current
3A
Rated Voltage
200V
Connector Series
XS9
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Bakelite
Insulation Color
Blue
Show Similar Products >
Description
XS8 · XS9 · XS10

Find the size.
Match the contacts.

Compact push-pull circular connectors with zinc-alloy shells and gold-plated copper contacts. Compare the three series before selecting a plug, receptacle or set.

Push-pull ball lockGold-plated copperCable / panel options
Separate XS-series plug and receptacle examples
Interface examples shown separately; contact counts must match in a mating pair.
Series comparisonMaterials & constructionDimensions & contactsSpecifications

Three sizes. Different contact choices.

SeriesPanel-cutout referenceContact options
XS88 mm2 / 3 / 4 contacts
XS99 mm2 / 3 / 4 / 5 contacts
XS1010 mm2 / 3 / 4 / 5 contacts

Cutout values identify the illustrated panel versions; they are not the outer shell diameters. Check the drawing for your mounting variant.

Metal housing. Conductive contacts. Secure cable entry.

01

Zinc-alloy shell

The metal housing surrounds the contact insert and carries the mating and mounting features.

02

Gold-plated copper contacts

Copper contacts with gold plating are specified for the XS8 / XS9 / XS10 series shown here.

03

Push-pull ball lock

The push-pull interface and retaining balls provide the quick connection mechanism.

04

Nut, washer and rear clamp

Panel versions use the illustrated nut and washer. Cable versions include a two-screw rear clamp. Mounting details vary by style.

Choose how the connector mounts

01

Cable plug

Female-contact cable plug with rear cable clamp.

02

Panel receptacle

Round bulkhead receptacles; front-nut and rear-nut XS8 options appear in the current range.

03

Inline receptacle

Cable-side receptacle for an inline connection; match the selected series and contact count.

Dimensions stay with the configuration

Keep each series with its own drawing. Expand a drawing for the panel and cable-side views; use “Enlarge drawing” to inspect a detail.

XS8 · panel / cable views and contact arrangements
XS8 panel and cable connector dimensionsEnlarge drawing
XS8 2, 3 and 4 contact arrangements, viewed from pin sideEnlarge drawing

The XS8 contact chart specifies standard mounting and a pin-side view. Other pin counts must not reuse this arrangement.

XS9 · assembly and face view
XS9 assembly dimensions and face viewEnlarge drawing
XS10 · assembly and face view
XS10 assembly dimensions and face viewEnlarge drawing
Additional size and assembly references
XS8 · alternative panel and inline dimensionsEnlarge drawing
XS9 · alternative panel and inline dimensionsEnlarge drawing
XS10 · alternative panel and inline dimensionsEnlarge drawing
XS family illustrated mated assembly length referenceEnlarge drawing

These reference drawings show different configurations. They do not define one interchangeable panel opening or one universal assembly length.

Dimensions and contact patterns apply to the illustrated configurations. Match the exact part, mounting style and mating orientation before making the panel or wiring the connector.

Specifications by series

ItemXS8XS9
Rated current3 A6 A
Rated voltage250 V250 V
Temperature range−55°C – +85°C−55°C – +85°C
Insulation resistance≥ 1000 MΩ≥ 1000 MΩ
Contact resistanceConfirm selected part≤ 0.005 Ω
Mating cycles5001000
Relative humidity93% (+40°C)Confirm selected part
Solder-cup bore reference1 mmConfirm selected part

Check the rating for the selected series and part. Confirm XS10 electrical and environmental ratings separately. Dimension illustrations are references, not machining tolerances.

Compact connections for equipment

For communication equipment, instrumentation, computers and mechanical or transport equipment where the selected part meets the installation and electrical requirements. Verify the environment and any required qualification for the exact application.

Complete the connection

01

Match the interface

Use the same series, contact count and compatible pin/socket arrangement on both halves.

02

Check the installation

Confirm panel thickness, opening, fixing method, cable diameter and clearance for the cable clamp.

03

Select the supplied part

Choose a plug, receptacle or matched set as listed for the selected item. Sealing and electrical ratings must be checked for that part.
