Elecbee Push Pull Self-Locking Connector B Series 2B ZCG Fixed socket with two nuts - Back panel mounting Female 7Pin
SKU: EB-ZCG.2B.307.CLL
Favorites
Key Features
- Self-locking design for secure, reliable connections.
- 7-pin female socket with durable back panel mounting.
- Includes two nuts for easy and stable installation.
- Compatible with Elecbee B Series 2B ZCG connectors.
Show More

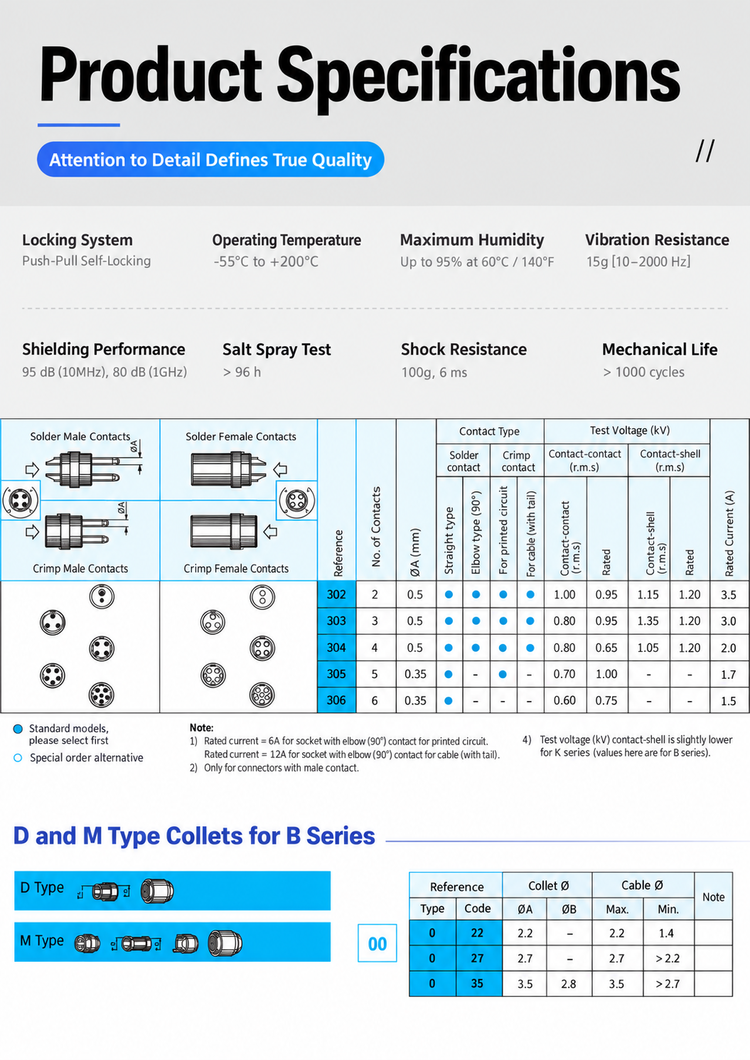

Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
7 Pin
Operating Temperature
-55℃~+250℃
Shielding
Shielded
Ingress Protection
IP50
Rated Current
3.5A
Features
Waterproof
Connector Series
2B
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Insulation Color
White
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
S
Perfect for our industrial control panel. The 7-pin configuration and G-key alignment prevent misconnections, and the back-panel mounting is solid.
E
Good push-pull locking mechanism—snaps in securely. Only wish it had IP67 rating since it's used near damp areas.
A
Excellent EMC shielding with full 360° screening. No more signal noise in our test rig after switching to these connectors.
S
Works as described, but took time to install due to tight nut spacing on the panel. Would help with a wrench included.
L
High-density 2B series saves space on our equipment. Reliable connection every time we plug in.
