ProMicro Pin Compatible: Designed with the exact footprint and pinout of the original ProMicro, making it a drop-in wireless upgrade for custom keyboards.
Multi-Protocol Wireless: Powered by the nRF52840 SoC, supporting Bluetooth 5.0, Zigbee, Thread, and 2.4GHz for versatile IoT and HID connectivity.
Ultra-Low Power Design: Optimized for battery life with a 20uA standby current and a dedicated software switch to cut LED power for maximum efficiency.
Advanced ARM Core: Features a high-performance ARM Cortex-M4 processor (64MHz) with 1MB Flash and 256KB RAM for complex firmware like ZMK.
Integrated Battery Management: Includes an on-board 3.7V Lithium battery interface and charging circuit, simplifying portable and wireless project builds.

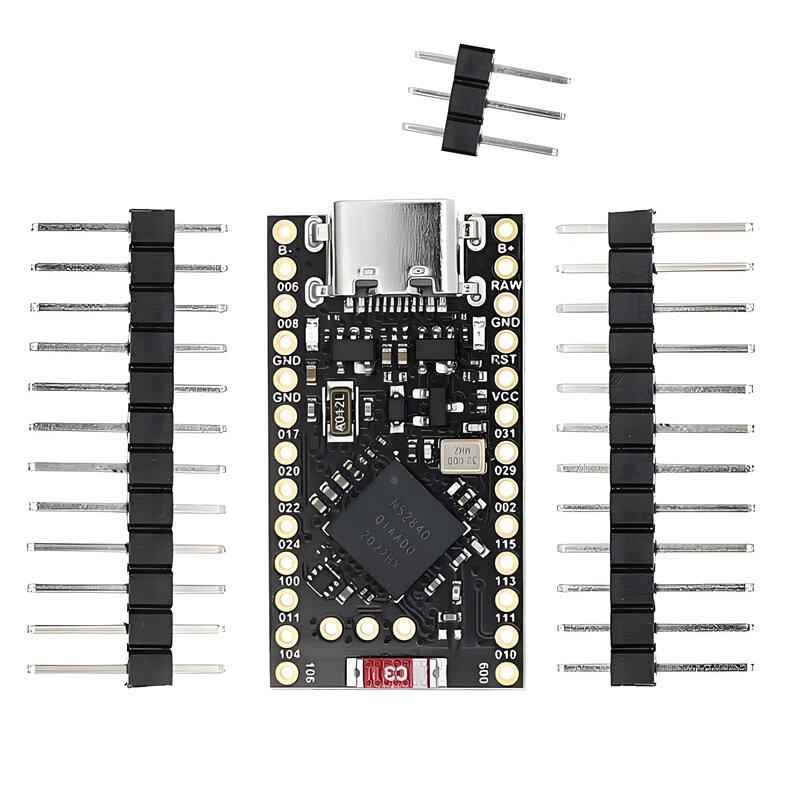

The Elecbee ProMicro NRF52840 is the ultimate wireless upgrade for the custom mechanical keyboard community and IoT innovators. By maintaining ProMicro pin compatibility, this board allows you to transform almost any wired ProMicro-based keyboard into a high-performance Bluetooth or Zigbee wireless device. It solves the power-drain issue of standard controllers by offering an ultra-low 20uA standby current, perfect for long-lasting portable gear.
Technical hardware and SoC specifications:
Technical product information: The board features a built-in 3.7V Li-Po battery connector and charging management chip. A unique software-controlled power switch allows users to disable the onboard LED, reducing power consumption to approximately 1mA during active use and 20uA in standby. With 1MB Flash and 256KB RAM, it provides ample space for advanced wireless keyboard firmware and complex mesh networking applications.
