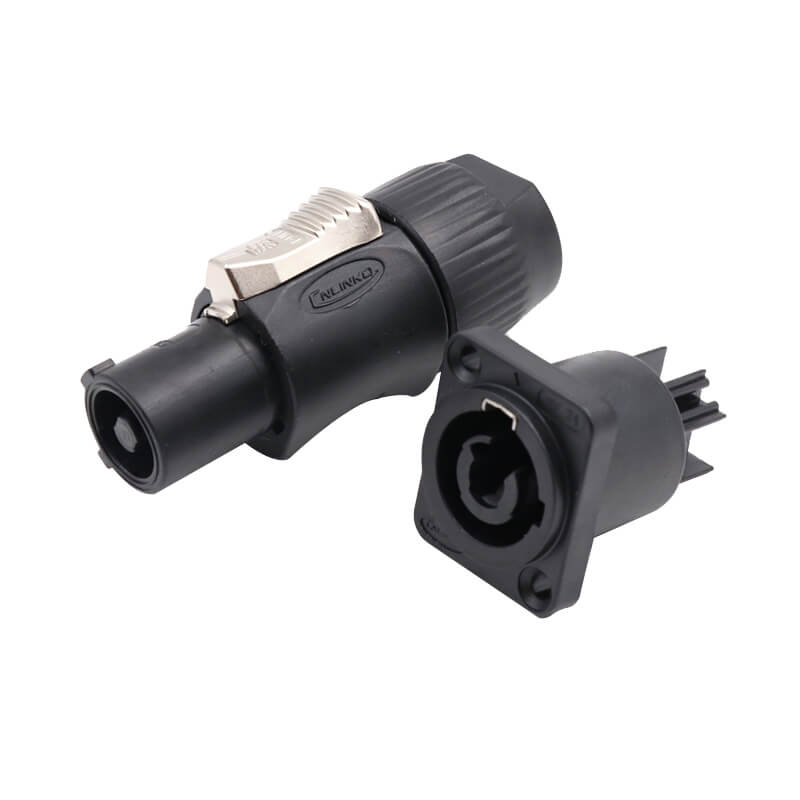

Elecbee Powercon 3 Pin Plug And Socket Waterproof Connectors IP44
SKU: EB-046-0028
Favorites
Key Features
YF-24 connectors
Locking 3-pin device connector with contacts for neutral, straight, pre-installed safety ground.
Large current capacity 20A/250VAC.
Use different colors (blue input) for input and output (grey output) control to avoid the possibility of matching each other.
Quick and easy locking system.
Use American imported beryllium copper for silver plating double quality assurance, increase current stability and effective temperature rise control.
Waterproof products meet IP68/IP67 protection level in assembled state.
Rated current: 20A rms.
Unique inner core copper pin anti-export design.
Also it is widely used in audio, video and power devices.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Termination
Solder
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Rated Current
20A
Rated Voltage
250VAC
Connector Series
YF
Color
Black
Fastening Type
Bayonet
Orientation
Straight
Shell Material
PBT
Contact Material
Copper Alloy
Cable Diameter
14AWG~12AWG
Description
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
A****t
These Powercon connectors are solid! The color-coded blue (input) and gray (output) makes wiring a breeze. Perfect for my outdoor LED setup and they’ve held up well in light rain thanks to the IP44 rating.
D****n
Good quality waterproof connectors. The 20A/250VAC rating gives me confidence when powering my stage lights. Locking mechanism is secure, though inserting can be a bit tight at first.
n*****
Exactly what I needed for connecting display panels quickly. The YF24 design allows daisy-chaining and extended wiring—huge time saver during installation.
i****r
Works fine and looks durable. Took a little effort to lock the first few times. Not fully submersible, but okay for occasional moisture exposure as advertised.
G****n
Reliable connection every time. Great for audio gear too. Love that they support left/right docking—makes cable management much cleaner on tight stages.
