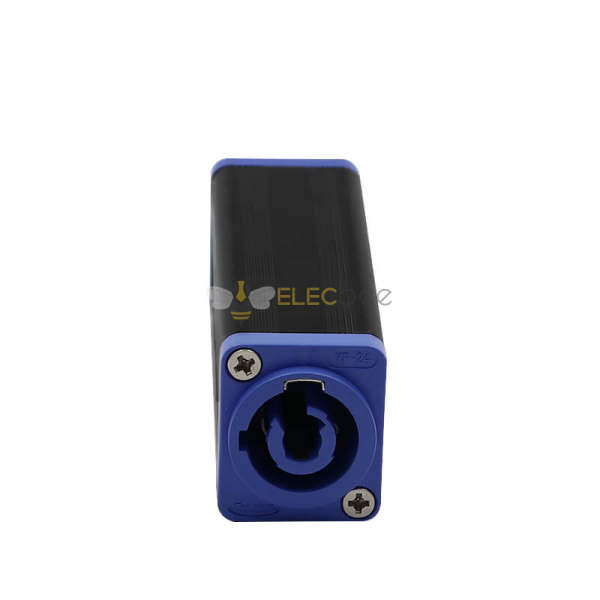

Elecbee Portable Powercon Supply Panel Box Electrical Connector Plug And Socket Adapter
SKU: EB-046-0001
Favorites
Key Features
YF-24 connectors
Locking 3-pin device connector with contacts for neutral, straight, pre-installed safety ground.
Large current capacity 20A/250VAC.
Use different colors (blue input) for input and output (grey output) control to avoid the possibility of matching each other.
Quick and easy locking system.
Use American imported beryllium copper for silver plating double quality assurance, increase current stability and effective temperature rise control.
Waterproof products meet IP68/IP67 protection level in assembled state.
Rated current: 20A rms.
Unique inner core copper pin anti-export design.
Also it is widely used in audio, video and power devices.
Show More
In-Stock
Qty.
1
Unit Price
$ 15.34
Ext. Price
$ 15.34
$ 15.34
Qty.
Unit Price
Ext. Price
10+
$14.57
$ 145.70
20+
$13.81
$ 276.20
100+
$12.27
$ 1227.00
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Termination
Screw Terminal
Contact Type
Female Pin
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Ingress Protection
IP44
Rated Current
20A
Rated Voltage
250VAC
Connector Series
YF
Color
Blue
Fastening Type
Bayonet
Orientation
Straight
Shell Material
PBT
Contact Material
Copper Alloy
Cable Diameter
14AWG~12AWG
