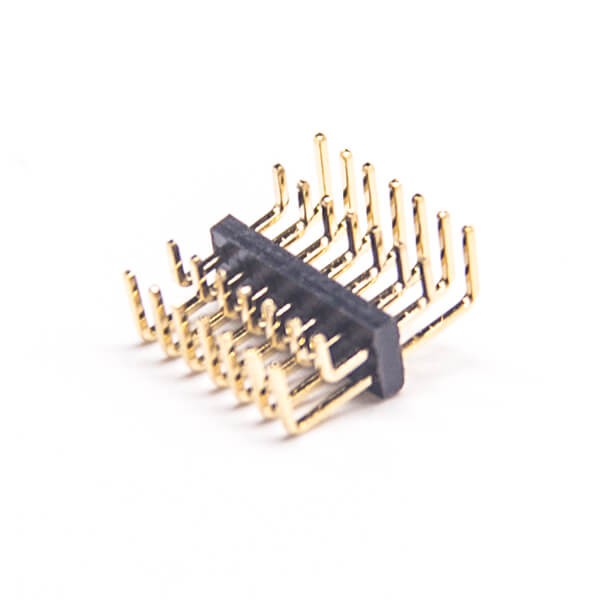

Elecbee Pin Header 1.27mm Right Angle Dual Row Through Hole 2x7 pin U Type

SKU: EB-609-0053

Favorites

Key Features

Features:

Pin Header Connector,Male/Plug,Right Angled/90°, 14pin,1.27mm,DIP,Dual Row，Uxa0 Type,Solder，Gold Plating,H1.0mm,Square,Black
Normally associated with ribbon cable connectors, or worked as recipients for jumpers
consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Applicationxa0

Electronic device
Home appliances
Electrical instruments
Automotive: Car navigation LCD panel and so on.
Lighting industry
The above applications are typical but not limited, these products are widely use in many fields

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

m****i

Perfect for my car navigation repair—right angle design saved space on the LCD panel. Gold plating ensures solid connection after multiple reflows.

B****s

Good quality pin header, fits exactly as described. Soldered cleanly with no issues during wave process. Just wish it came in a static-safe bag.

?****z

Used in a home automation project—dual row U-type made routing easy. Withstands -40°C to +105°C no problem. Great value from OEM factory.

?****?

Works fine for low-voltage apps, but insertion force feels slightly tight. Still reliable at 1.5A and PA6T insulation is solid.

R****s

Exactly what I needed for ribbon cable setup. 1.27mm pitch is precise, and black insulator resists heat well during reflow.
