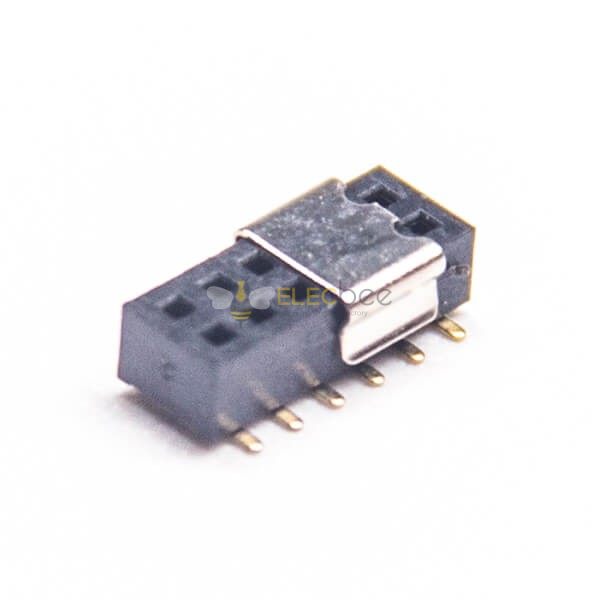

Elecbee 3pcs SMT Female Header 1.27 Gap Double Row 180 Degree 2*6 12Pin Stragiht
SKU: 3XEB-609-0052
Favorites
Key Features
Features:
- Female Header Connector,Female/Jack,Straight/180°,12Pin,1.27mm,SMT,Double Row,Solder Type，Gold Plating,H2.1mm,Square,Black
- Normally associated with ribbon cable connectors, or worked as recipients for jumpers
- consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application
- Electronic device
- Home appliances
- Electrical instruments
- Automotive: Car navigation LCD panel and so on.
- Lighting industry
- The above applications are typical but not limited, these products are widely use in many fields
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Rows
2
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Female Pin
Number of Positions
12 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+105℃
Contact Finish
Gold Plated
Insulating Materials
PPA
Insulation Color
Black
Pitch
1.27mm
