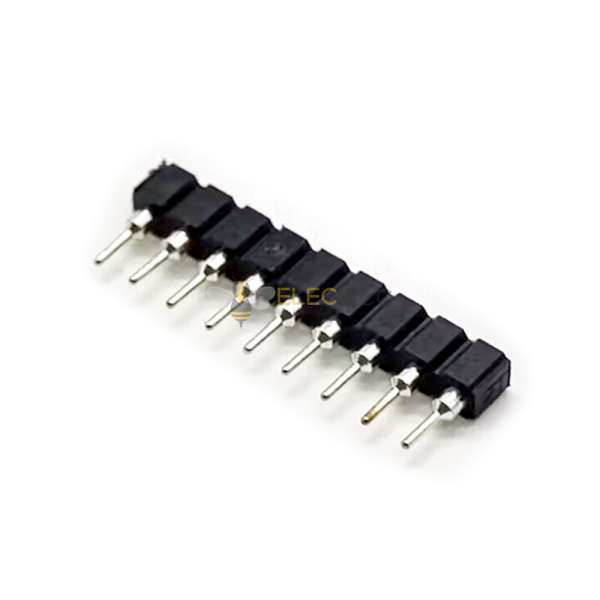

Elecbee Female Header Single Row Circular Holes DIP Type 2.54mm Picth
SKU: EB-609-0068
Favorites
Key Features
Features:
- Female Header Connector,Female/Jack,Straight/180°,2.54mm,9Pin,Single Row,Circular Holes,DIP Type,Solder Type，Tin Plating,H3.0mm,Circular, Black
- Normally associated with ribbon cable connectors, or worked as recipients for jumpers
- consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Applicationxa0
- Electronic device
- Home appliances
- Electrical instruments
- Automotive: Car navigation LCD panel and so on.
- Lighting industry
- The above applications are typical but not limited, these products are widely use in many fields
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Rows
1
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Female Pin
Number of Positions
9 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+105℃
Contact Finish
Gold Plated
Insulating Materials
PPA
Insulation Color
Black
Pitch
2.54mm
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
