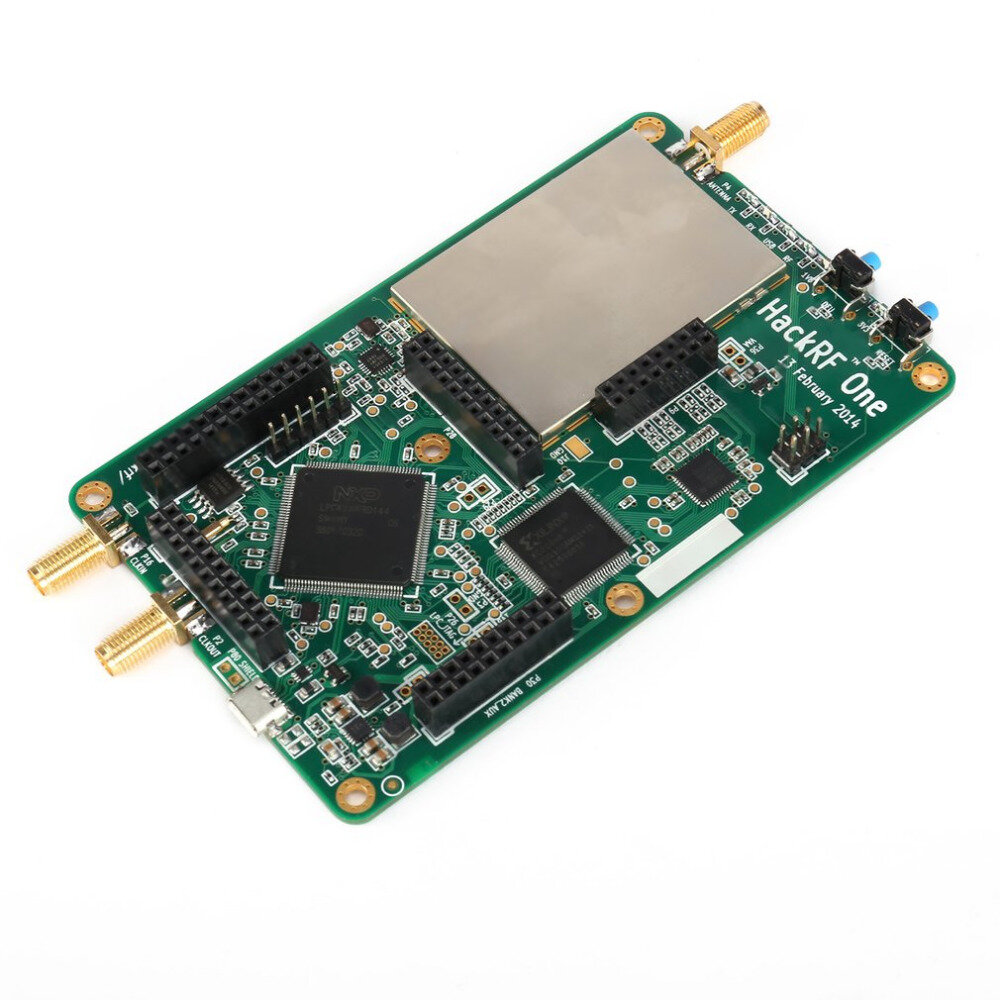

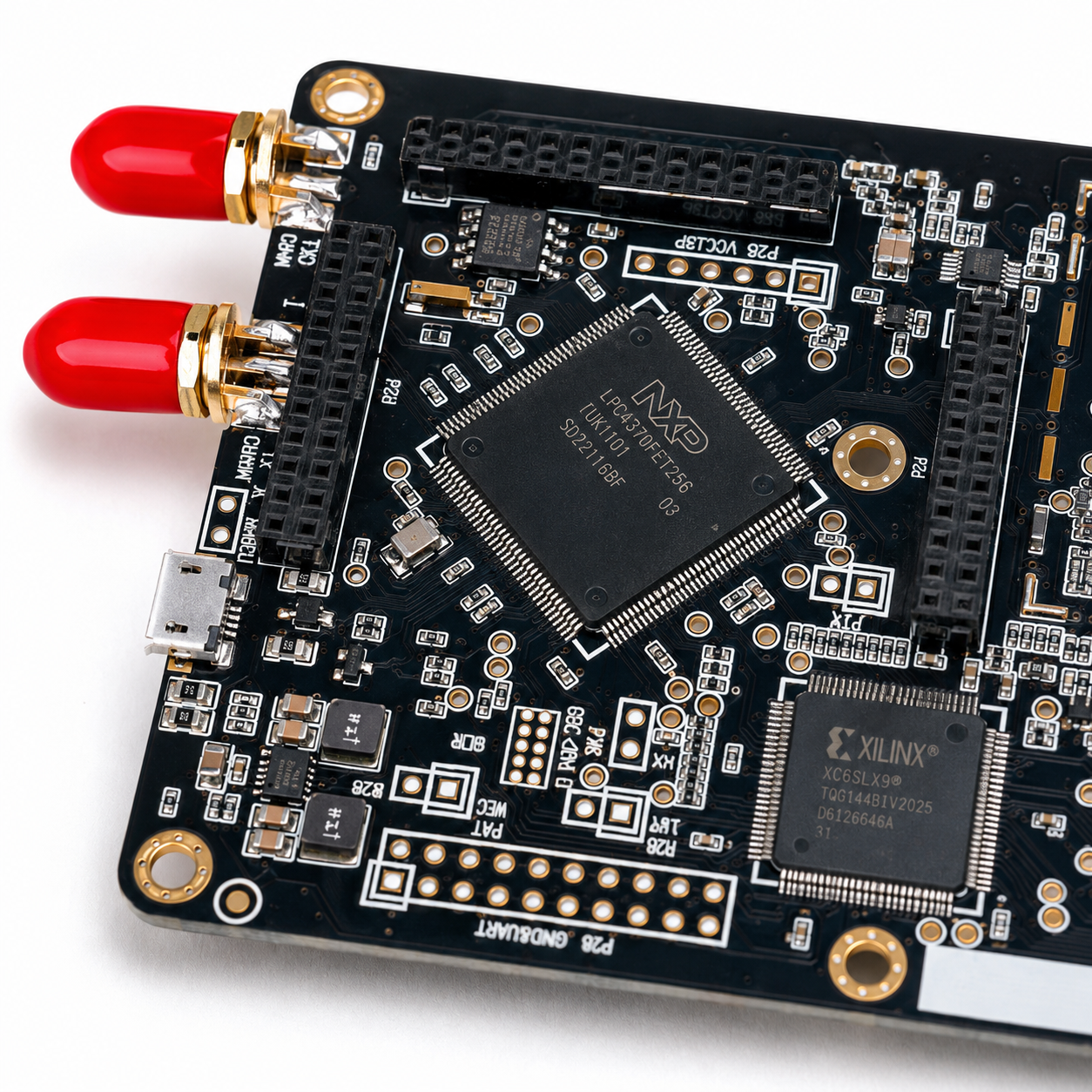

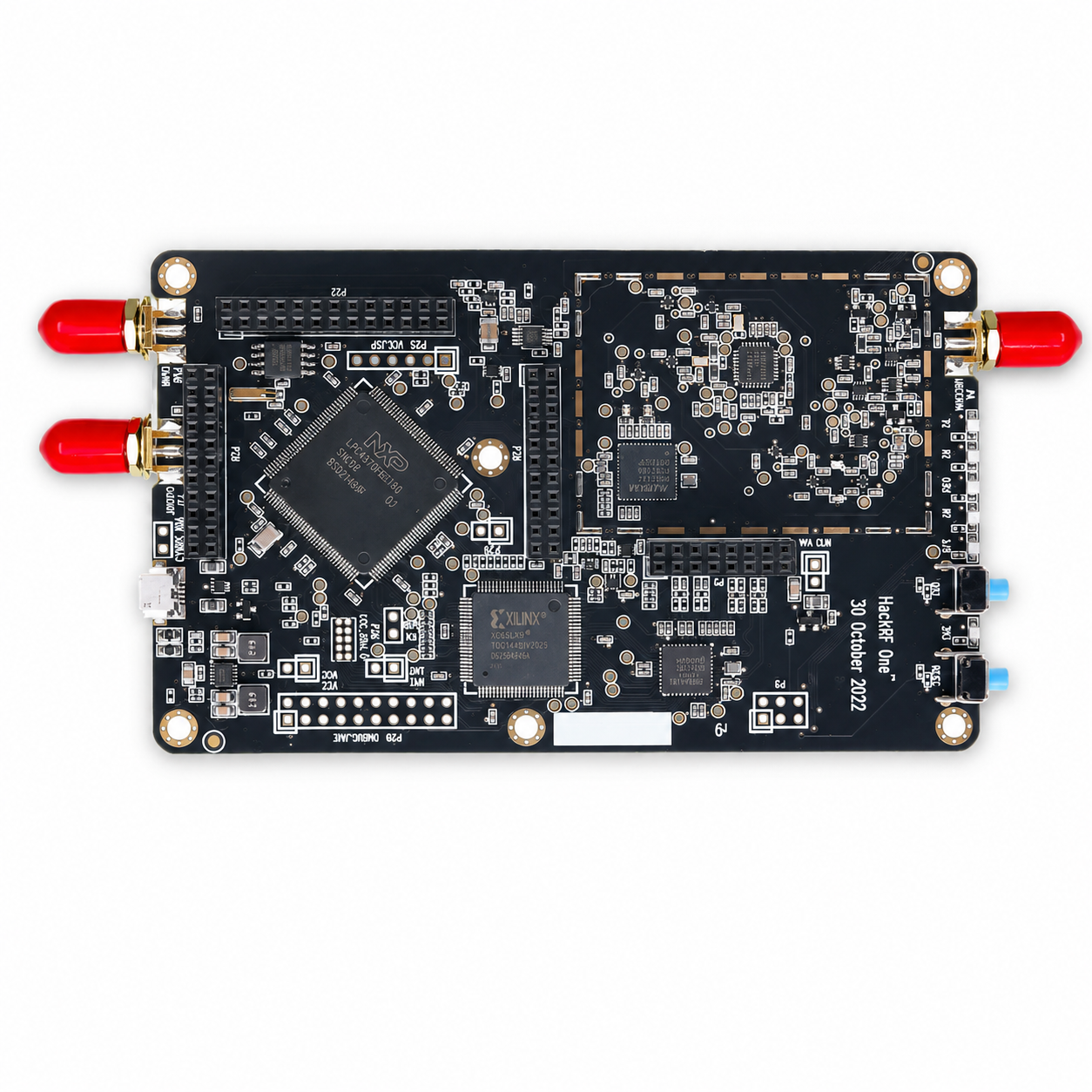

Elecbee HackRF One F1B02 SDR Development Board 1MHz-6GHz 20MHz Bandwidth 8bit ADC DAC RF Module with Aluminum Case

The Elecbee HackRF One F1B02 SDR Development Board is a wideband software-defined radio (SDR) platform designed for RF signal analysis, wireless communication research, spectrum monitoring, and embedded RF development. Supporting a frequency range from 1MHz to 6GHz, this SDR module enables engineers, researchers, and developers to work across multiple wireless protocols and radio technologies using a single hardware platform.

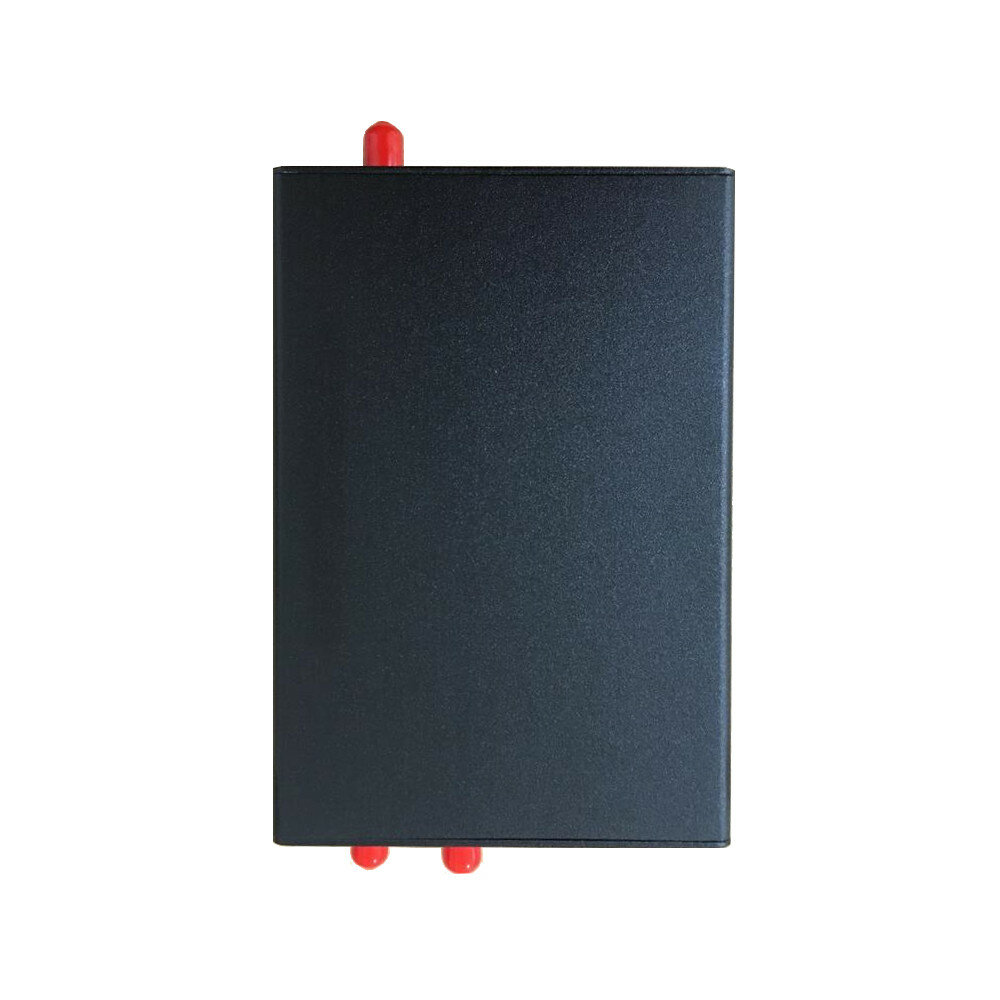

This version includes the F1B02 main board with aluminum enclosure, providing improved physical protection and stable operation for laboratory testing, RF experimentation, and development environments.

The HackRF One platform supports 20MHz real-time bandwidth, 8-bit ADC/DAC precision, and up to 20Mbps sampling rate, making it suitable for SDR applications including signal capture, protocol analysis, RF transmission testing, spectrum scanning, and wireless security research.

Designed for compatibility with popular SDR software ecosystems such as GNU Radio, SDR#, HDSDR, and other open-source SDR tools, this module supports flexible integration into embedded systems, RF laboratories, educational platforms, and wireless communication projects.

Technical Specifications:

• Frequency Range: 1MHz-6GHz
• Real-Time Bandwidth: 20MHz
• ADC/DAC Resolution: 8-bit
• ADC/DAC Sample Rate: 20Mbps
• Maximum TX Power: 10dBm
• Maximum RX Input Power: -5dBm
• 64QAM Transmission EVM: 1.5%
• Resampling Bandwidth: 20MHz
• PCB Size: 12 x 7.5cm

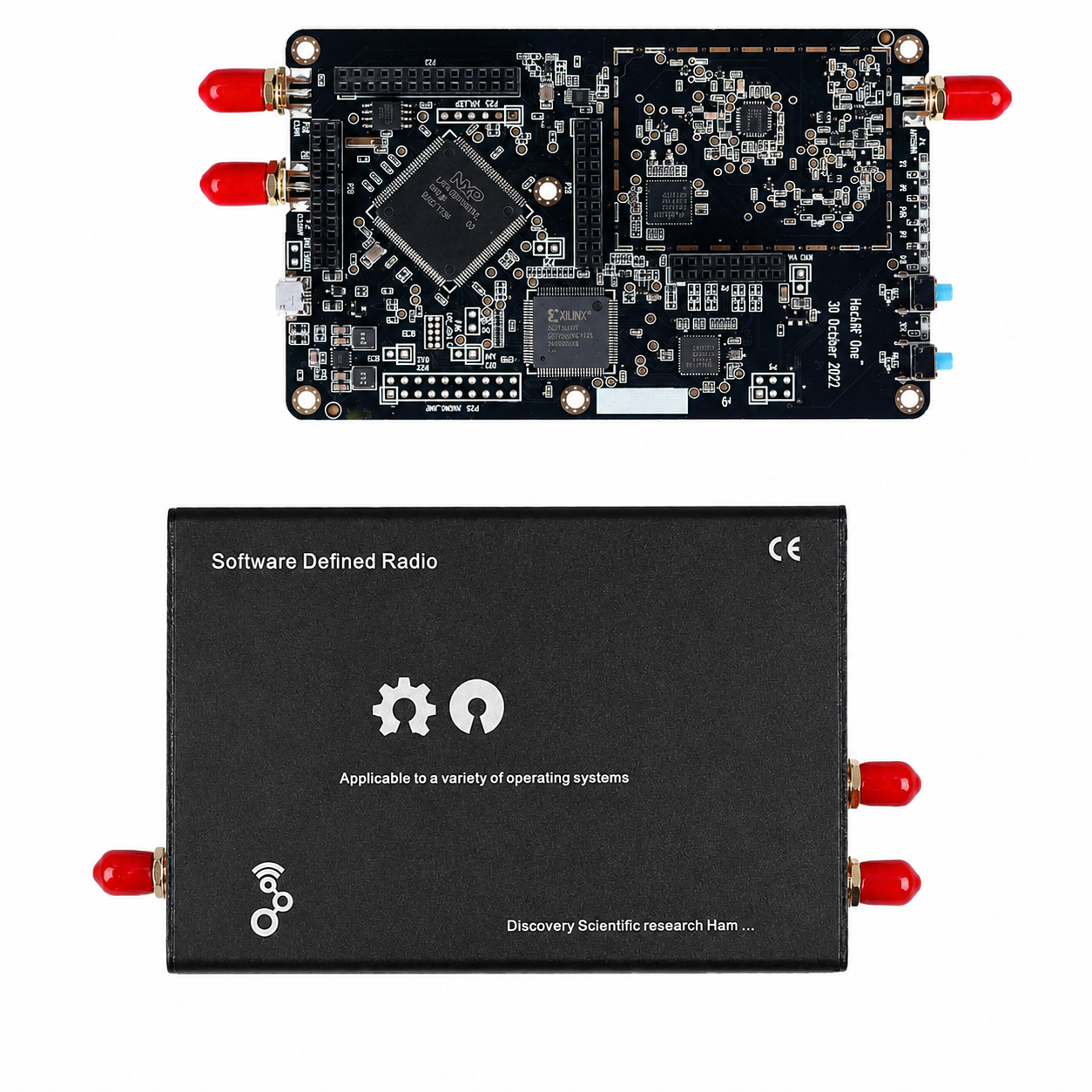

• Configuration: F1B02 Main Board + Aluminum Case

This SDR development platform is suitable for RF engineering, wireless communication testing, embedded development, IoT experimentation, antenna analysis, signal processing education, and spectrum research applications.
