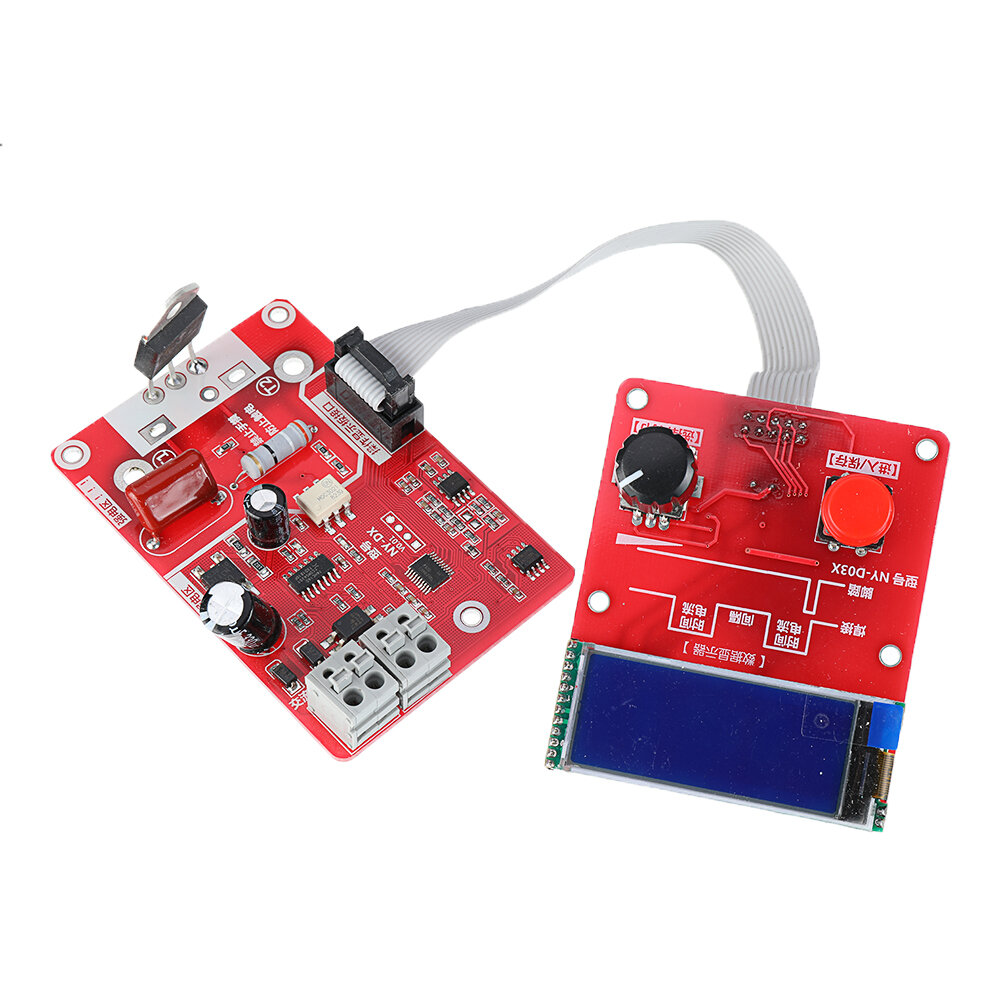

Elecbee NY-D03 100A/40A Spot Welder Time and Current Controller Dual Pulse Control Board LCD Display 100A
SKU: 1664787
Favorites
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Model
D03
Description
Main Features:
1. Multiple specifications, up to 5 sets of parameters can be set, allowing you to switch welding material and directly call parameters, without re-setting.
2. Chinese LCD interface, intuitive operation, convenient.
3. The welding pulse is in the mode of the double pulse. If the welding time is set to 0 at any time, it will become single-pulse welding.
4. Live network voltage compensation can automatically adjust the output according to the changes of mains electricity, to ensure that the effective heat of each welding under the same welding parameters remains the same, and the welding spots are uniform.
5. Parameters are adjusted to encoder input mode, which is more accurate and convenient.
6. With welding counting function, the counting range is 0000-9999, so that you can do "know" welding, and can save electricity
7. Time input 0-99 cycles, unit cycles (one cycle is 20ms) current input (30-99).
8. The whole board adopts STM8 industrial single-chip microcomputer as the main control core.
9. Strong and weak electricity is isolated by optical coupling, which makes the operation safer.
10. The power cord and foot pedal switch wire are equipped with fast connecting terminals without screws, which is more convenient and reliable.
11. Design a reliable zero-crossing detection circuit to ensure accurate phase shifting of SCR.
12. This controller is compatible with the 40A-100A thyristor.
Package includes:
1 x Control Board with LCD Display
|
Num. |
/ |
NY-D01 |

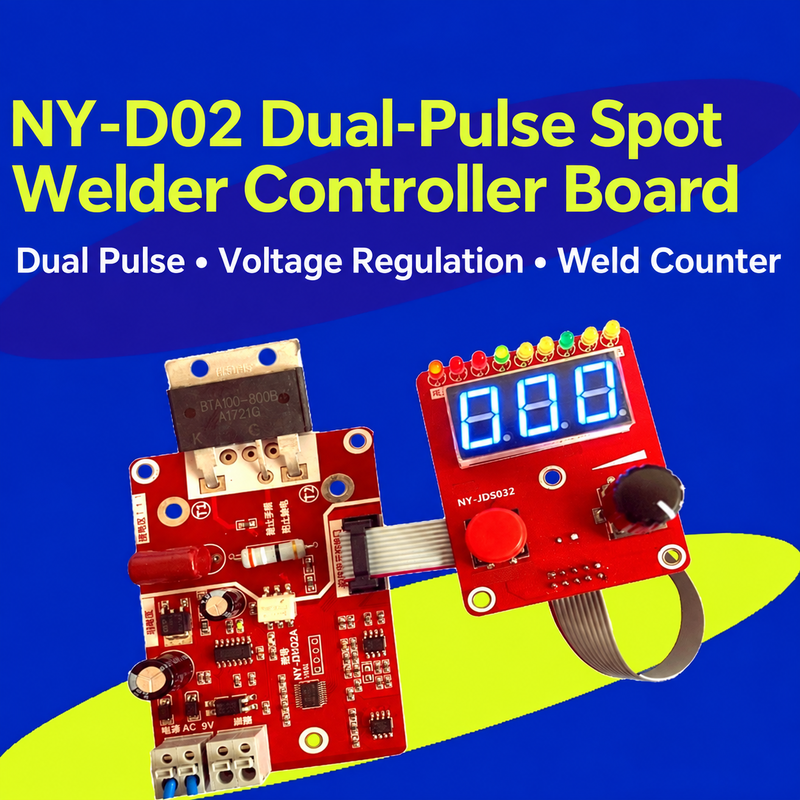

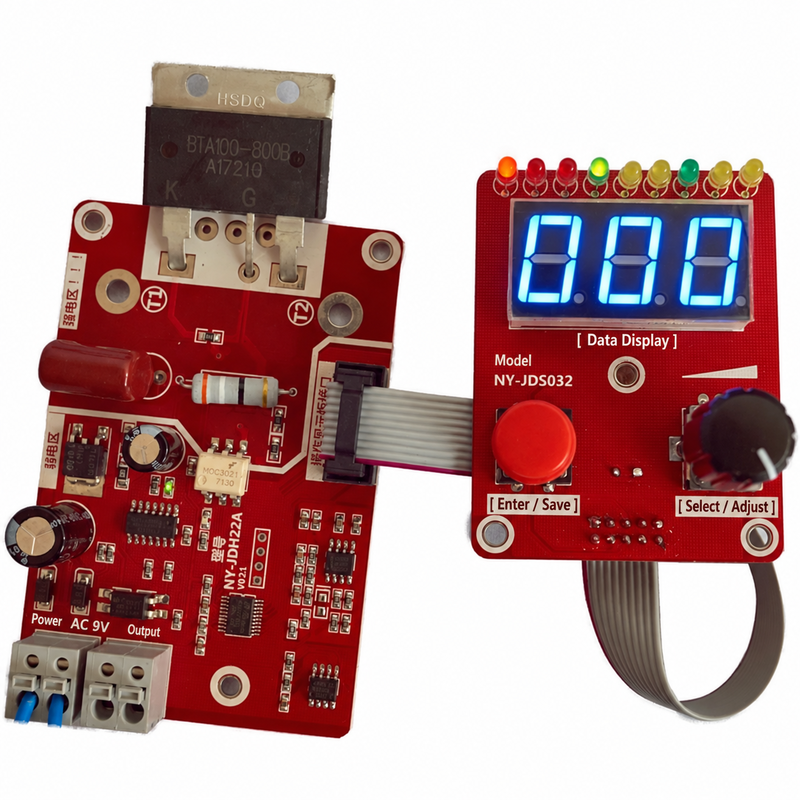

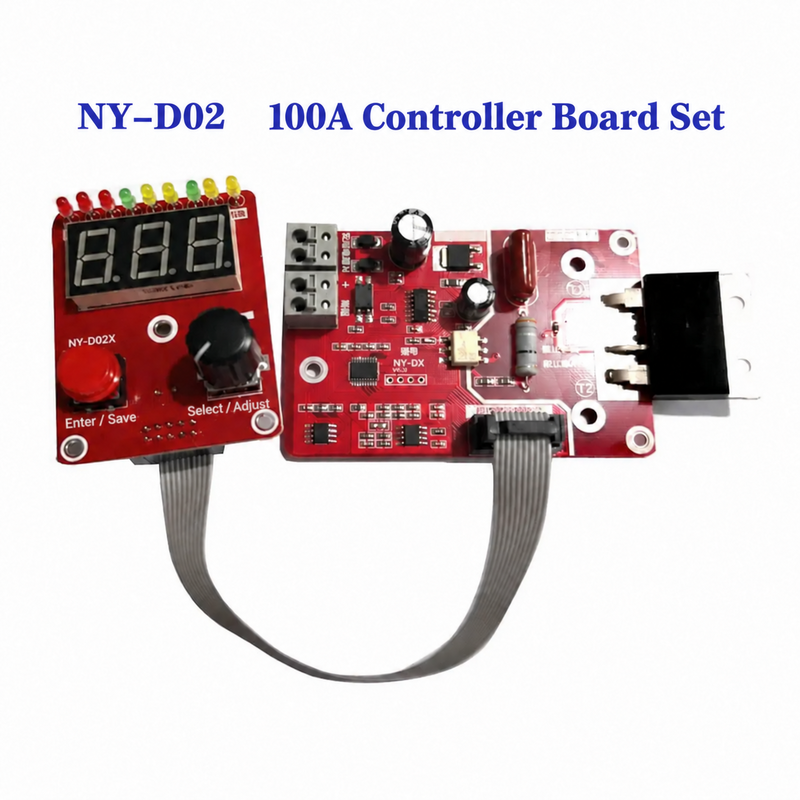

NY-D02 |
NY-D03 |
NY-D04(this item) |
NY-D05 |
|
1 |
Power supply |
AC9-12V 3W 50HZ / 60HZ (AC power must be used, DC power cannot be triggered) |
||||
|
2 |
Start method |
Pedal or other passive normally open point (note that it must be a normally open point, and can not use active signa) |
||||
|
3 |
Trigger form |
Optocoupler for SCR |
Pulse transformer |
|||
|
4 |
Display form |
0.36 digital tube |
0.56 digital tube |
LCD screen |
0.56 digital tube |
0.56 digital tube |
|
5 |
Adjustment method |
Potentiometer / knob |
Encoder + button |
Encoder + button |
Button |
Button |
|
6 |
Time limit |
1-50 |
1-99 |
1-99 |
1-99 |
1-99 |
|
7 |
Current range |
30-99 |
300-999 |
30-99 |
30-99 |
30-99 |
|
8 |
Welding output |
Single pulse |
Single pulse |
Double pulse |
Single pulse |
Single pulse |
|
9 |
Voltage regulation function |
NO |
YES |
YES |
NO |
NO |
|
10 |
Counting function |
NO |
YES |
YES |
NO |
NO |
|
11 |
Save after power off |
YES |
YES |
YES |
YES |
YES |
|
12 |
Normative groups |
Group 1 |
Group 1 |
Group 5 |
Group 1 |
Group 1 |
|
13 |
Drive SCR |
Bidirectional thyristor, 100A and below, can drive a G-level, can not be connected to thyristor module. (Factory comes with SCR) |
Thyristor module or two back-to-back unidirectional thyristors (G1K1 G2K2), no thyristors |
|||
Package includes:
1 x Control Board with LCD Display
