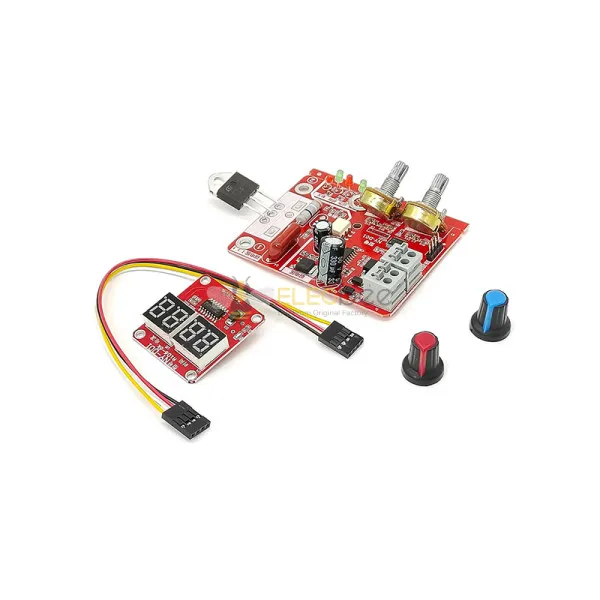

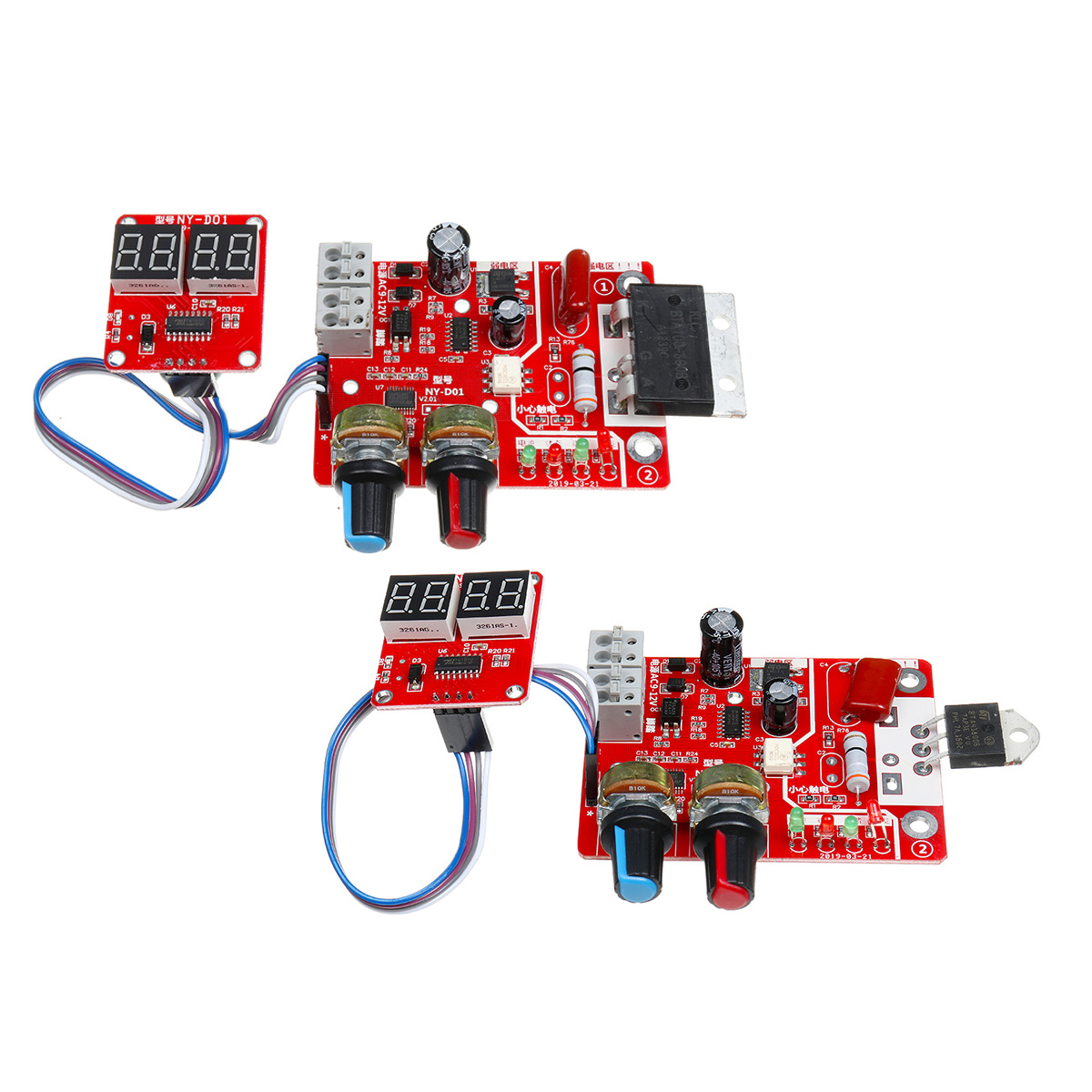

Elecbee NY-D01 Spot Welder Control Board 40A Single Pulse Digital Display Time & Current Controller for DIY Battery Welding Machine 9V-12V AC

Name: Elecbee NY-D01 Spot Welder Control Board 40A Single Pulse Digital Display Time & Current Controller for DIY Battery Welding Machine 9V-12V AC
Brand: Elecbee
SKU: EB0042659
Price: 8.99 USD
Availability: InStock

SKU: EB0042659

Favorites

Key Features

Precise Welding Control: Features a high-accuracy single-chip microcomputer to independently adjust welding time (1-50 units) and current (30-99%) for consistent joints.

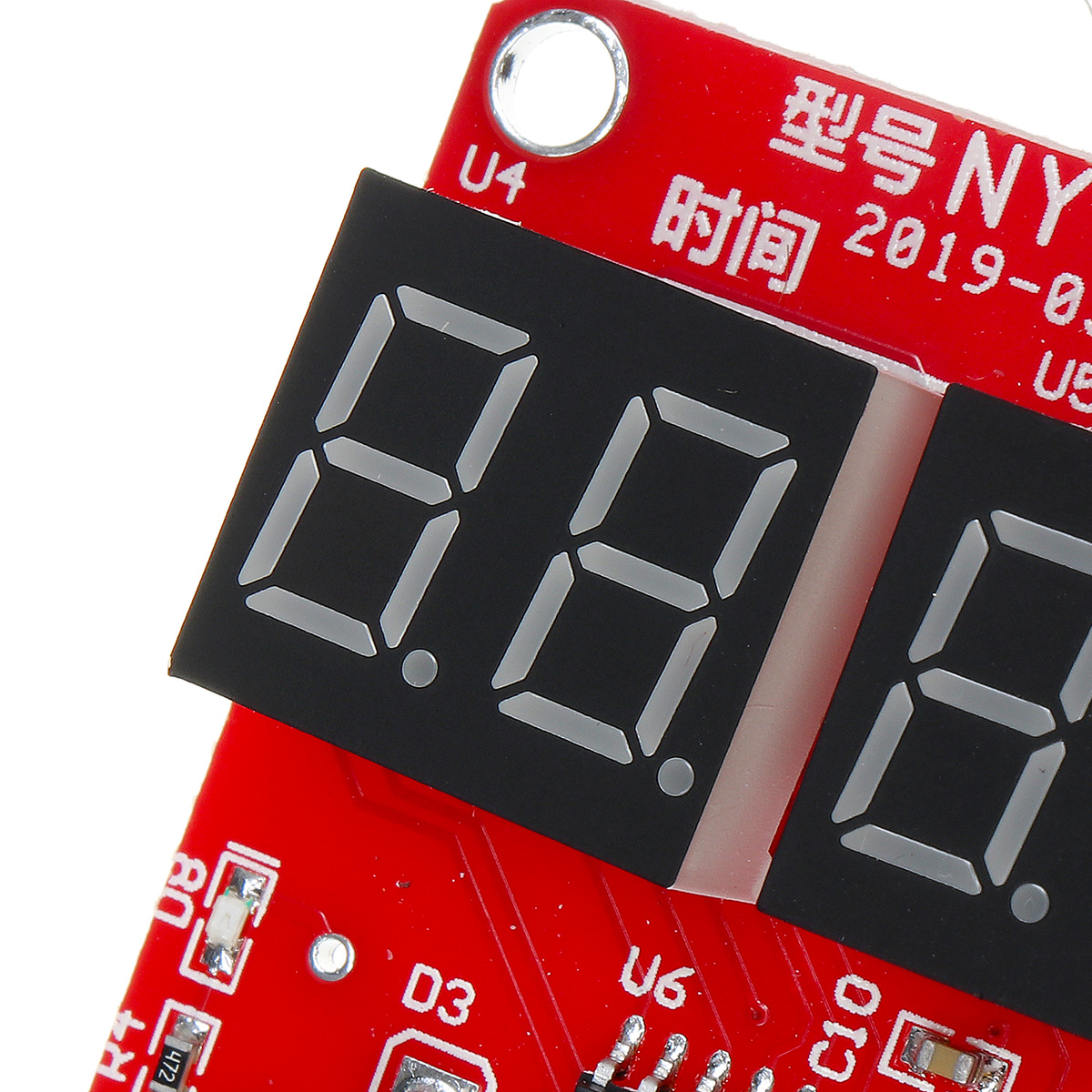

Clear Real-Time Monitoring: Integrated digital tube display provides instant visual feedback of your current settings, ensuring error-free adjustments during DIY assembly.

Enhanced Operational Safety: Equipped with an industrial-grade optocoupler to isolate strong and weak electricity, protecting your control circuit from high-voltage feedback.

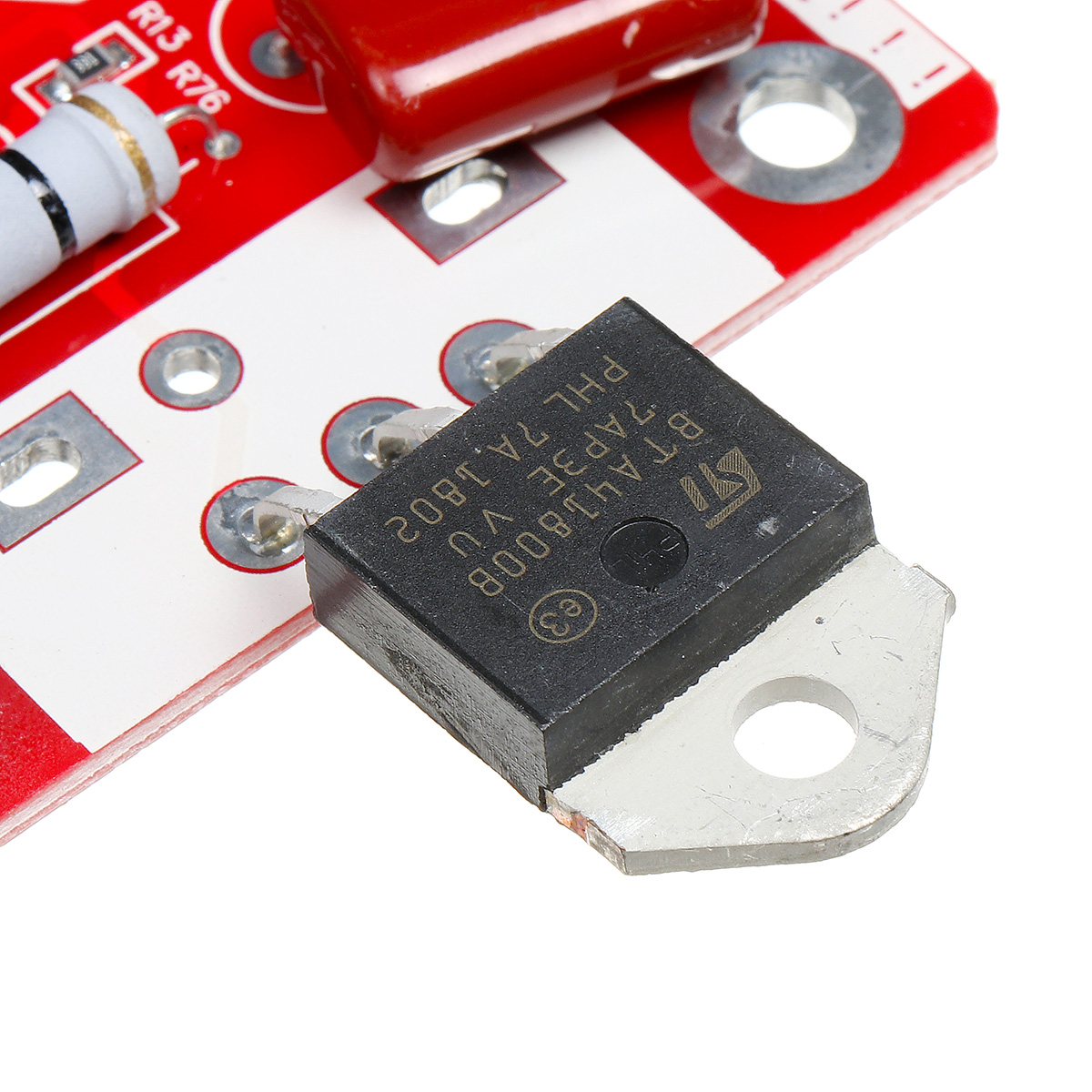

Reliable Zero-Crossing Detection: Utilizes a specialized zero-crossing detection circuit to ensure the silicon controlled rectifier (SCR) triggers accurately for stable pulse output.

Durable Industrial Design: Built with high-quality 40A components and screw-down terminals for secure, vibration-resistant wiring in custom battery pack welding rigs.

Description

Transform your microwave transformer into a professional-grade battery assembly tool with the NY-D01 Spot Welder Control Board. Designed to solve the challenge of inconsistent manual welding, this digital pulse controller eliminates the risk of burnt battery nickel strips by providing millisecond-precision over welding time and current intensity. Whether you are refurbishing power tool packs or building custom 18650 lithium battery arrays, this board acts as the high-intelligence "brain" of your DIY welder, ensuring every spot weld is uniform and secure.

This 40A single-pulse board is engineered for technical accuracy and ease of integration. The technical specifications include:

Core Controller: Industrial-grade STM8 Microcontroller
Current Output: 40A Max (Suitable for single-transformer setups)
Input Power: AC 9V - 12V (AC transformer required)
Adjustment Range: Time (20ms - 1s) and Current (30% - 99%)
Isolation: High-speed optocoupler isolation for circuit safety

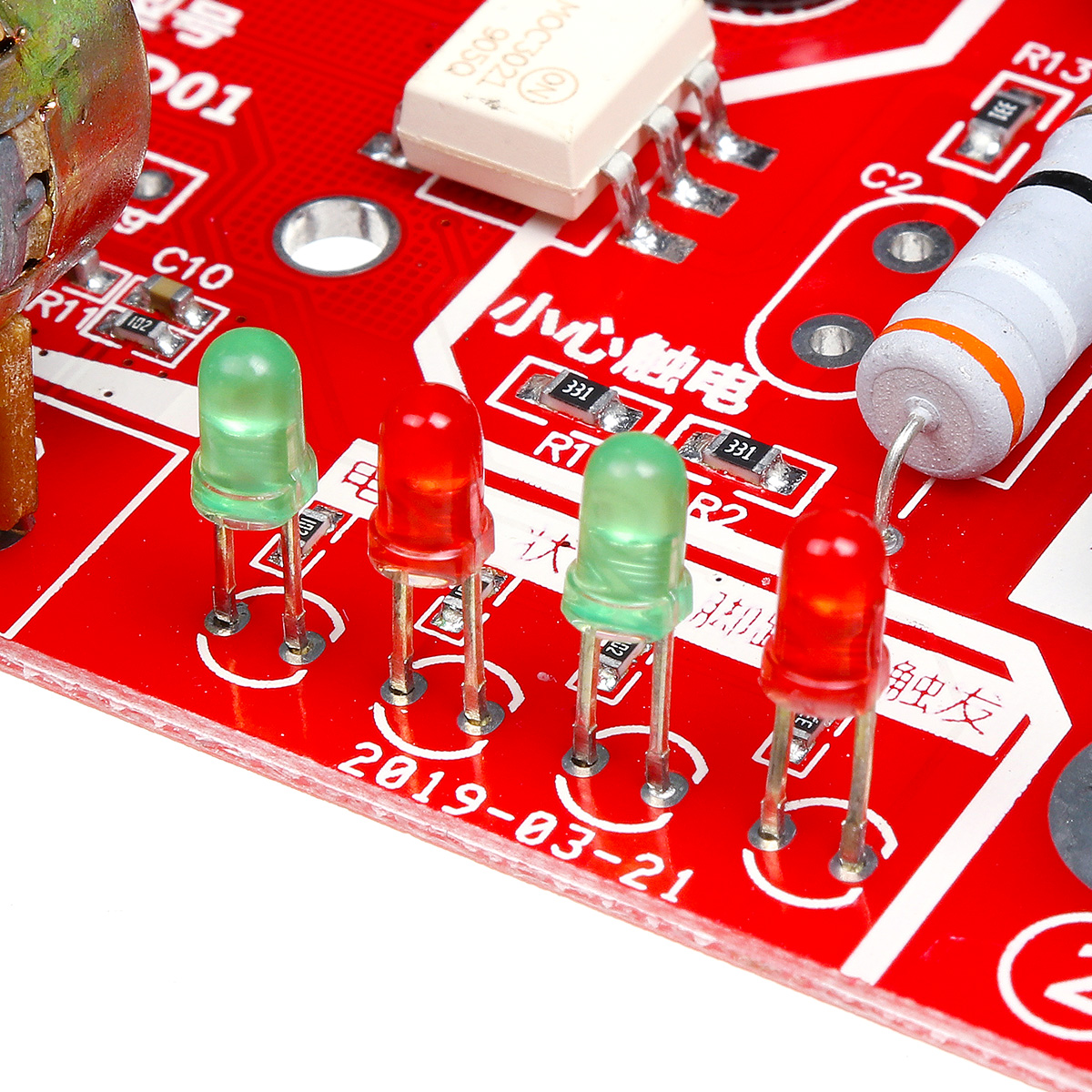

The NY-D01 features a vibration-resistant PCB design with a dedicated zero-crossing trigger to extend the life of your SCR. It includes a built-in power indicator and trigger status LED for real-time diagnostics in the workshop. The board is fully compatible with standard foot switches and features non-volatile memory to save your last used parameters automatically. This industrial-grade DIY welder controller is the definitive choice for enthusiasts seeking a reliable and safe high-current switching solution for precision metal joining.

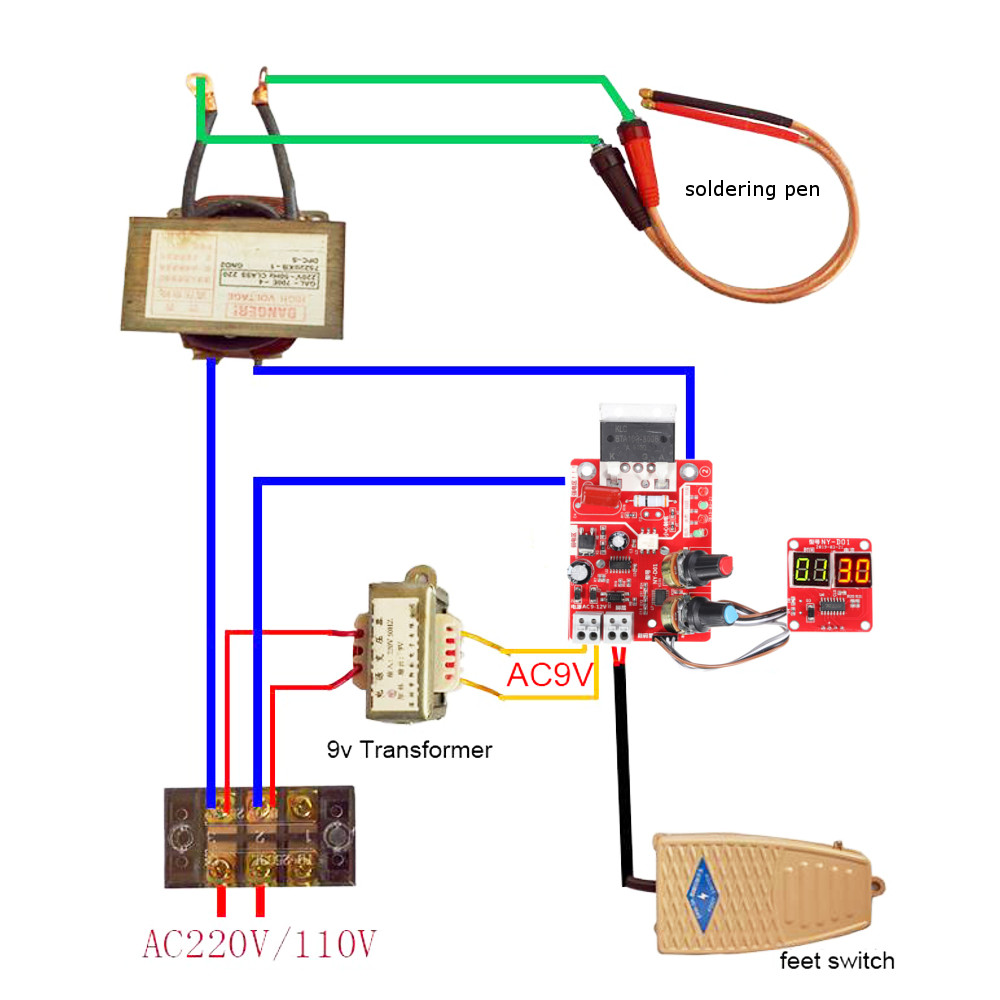

Wiring demo:

Geekcreitreg-NY-D01-40A100A-Digital-Display-Spot-Welding-Module-Time-and-Current-Controller-Panel-Ti-1559616
