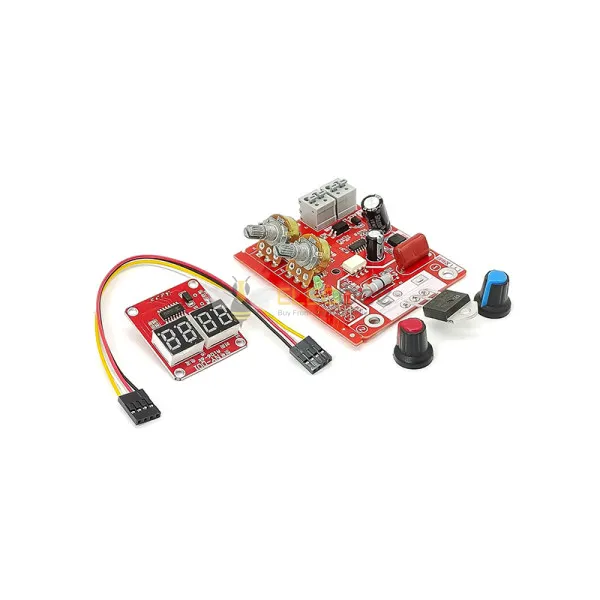

Elecbee NY-D01 100A Spot Welder Control Board Single Pulse Digital Display Time & Current Controller for DIY Battery Welding 9V-12V AC Transformer

Name: Elecbee NY-D01 100A Spot Welder Control Board Single Pulse Digital Display Time & Current Controller for DIY Battery Welding 9V-12V AC Transformer
Brand: Elecbee
SKU: EB0042659-100A
Price: 15671 KRW
Availability: InStock

SKU: EB0042659-100A

Favorites

Key Features

Industrial-Grade Current Handling: Equipped with a high-capacity 100A silicon controlled rectifier (SCR) to manage heavy-duty welding tasks and dual-transformer setups.

Precise Digital Calibration: Features a dual-parameter digital display for millisecond-level time adjustment (1-50 units) and current percentage (30-99%) for consistent weld spots.

Enhanced Circuit Safety: Utilizes industrial optocoupler isolation to separate strong and weak electricity, preventing high-voltage feedback from damaging your microcontroller.

Accurate Pulse Triggering: Built-in zero-crossing detection circuit ensures the SCR triggers at the optimal phase for stable, splatter-free pulse output.

Non-Volatile Parameter Memory: Automatically saves your last used settings upon power-off, allowing for immediate resumption of work without recalibration.

Description

Take the guesswork out of battery pack assembly with the NY-D01 100A Spot Welder Control Board. Designed to solve the common frustration of inconsistent manual welds, this digital pulse controller provides the precision needed to weld nickel strips without damaging 18650 lithium batteries. Whether you are building high-capacity e-bike batteries or industrial power banks, this board acts as the high-intelligence "brain" of your DIY spot welder, ensuring every joint is uniform, secure, and professional.

This heavy-duty 100A controller is engineered for high-performance power management. The technical specifications include:

Core MCU: Industrial STM8 Single-Chip Microcomputer
Current Rating: 100A (Supports large microwave transformers)
Input Requirements: AC 9V - 12V (Requires dedicated AC transformer)
Adjustment Range: Time (20ms - 1s) and Current (30% - 99%)
Isolation: High-speed optocoupler isolation for logic safety

The NY-D01 features a vibration-resistant PCB design with integrated zero-crossing trigger technology to significantly extend the service life of your SCR. It includes a built-in power indicator and trigger status LED for real-time diagnostic feedback in the workshop. The board is fully compatible with standard industrial foot switches and features nickel-plated screw terminals for secure, high-current connections. This is the definitive choice for professional makers seeking a reliable and safe switching solution for precision metal joining.

Wiring demo:

Geekcreitreg-NY-D01-40A100A-Digital-Display-Spot-Welding-Module-Time-and-Current-Controller-Panel-Ti-1559616
