Elecbee NEO-7M GPS Module Satellite Positioning Onboard Ceramic Antenna Serial Port Driver
SKU: EB0042854
Favorites
Key Features
On-board with ceramic antenna, which can easily locate the satellite in an open place without an external antenna.
Welded with an SMA head, used for an external antennato make the positioning ability stronger.
Comes with micro usb interface, for debugging the GPS module via data cable.
Reserved serial port interface, used for USB to serial port modules or external MCU to receive the GPS information.
Comes with a signal indicator, indicating whether the GPS receive the information or not.
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Model
H2
USB Support
USB/Micro USB
Description
Precise details:
Overview:

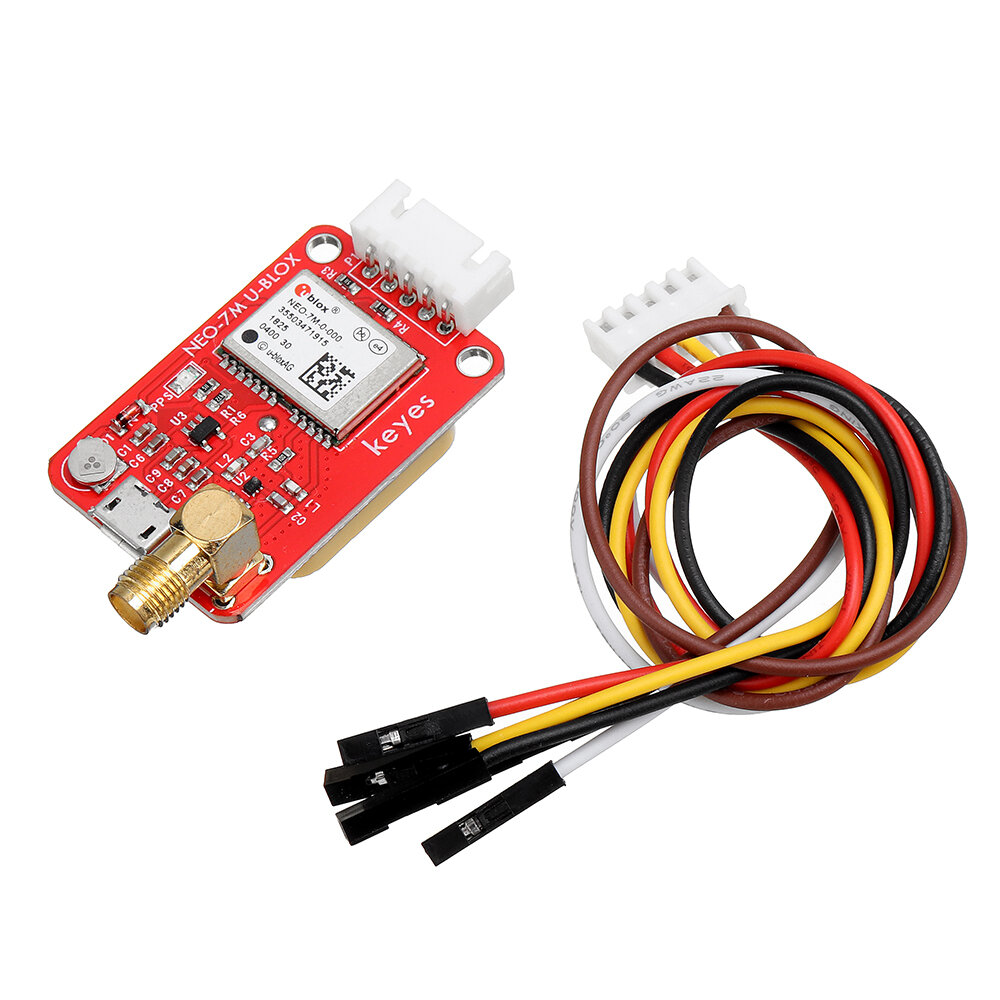

This GPS module is based on the NEO-7M, can be used for satellite positioning.
The module supports NMEA standard protocol output, built-in FLASH, and can save the setting information after power-off without external EEPROM.
This module has an on-board ceramic antenna, which can easily locate the satellite in an open place without an external antenna. It also welded with an SMA head, which can be used for an external antenna, to make the search positioning ability more stronger.
When using, you can debug the GPS module using the data cable via the micro usb interface. Or through the reserved serial port interface, use USB to serial port modules or external MCU to receive the GPS information.
Pay special attention to:
If connect the external antenna, the C2 capacitor on the module needs to be removed. The internal antenna and external antenna are used together to cause collision and influence positioning.
Because there is no satellite signal inside the room, the module can only be used outdoors, so cannot be used for positioning indoors. The module has a positioning accuracy of up to 2.5 meters.
1 x Keyes NEO-7M GPS Module
