Elecbee NanoPi R2S Plus RK3328 Edge Computing Board Dual Gigabit Ethernet 32GB eMMC Type-C M.2 WiFi Compatible
SKU: EB0041628
Favorites
Key Features
High-Speed Network Performance: Dual native Gigabit Ethernet interfaces support stable high-bandwidth communication for edge computing, firewall systems, soft routing, and industrial networking applications.
Reliable Embedded Processing: Rockchip RK3328 quad-core Cortex-A53 processor operating up to 1.2GHz delivers efficient computing performance for Linux-based embedded systems.
Integrated Storage Solution: Built-in 32GB eMMC storage and TF card boot support simplify operating system deployment and embedded application management.
Flexible Expansion Capability: Dual USB 2.0 interfaces support 4G modules, USB cameras, WiFi adapters, and additional embedded communication peripherals.
Wide Linux Compatibility: Supports OpenMediaVault, Debian Core, Ubuntu Core, and Linux 6.1 LTS environments for networking, NAS, IoT gateway, and industrial automation development.
Show More
In-Stock
Qty.
1
Unit Price
$ 59.49$ 69.99
Ext. Price
$ 59.49$ 69.99
$ 59.49$ 69.99
Specifications
Attribute
Value
Search
MCU/SoC Model
NanoPi R2S Mini
CPU Architecture
TIONIMAGE0
Memory
Arduino IDE
Debug Interface
ETHERNET
Description

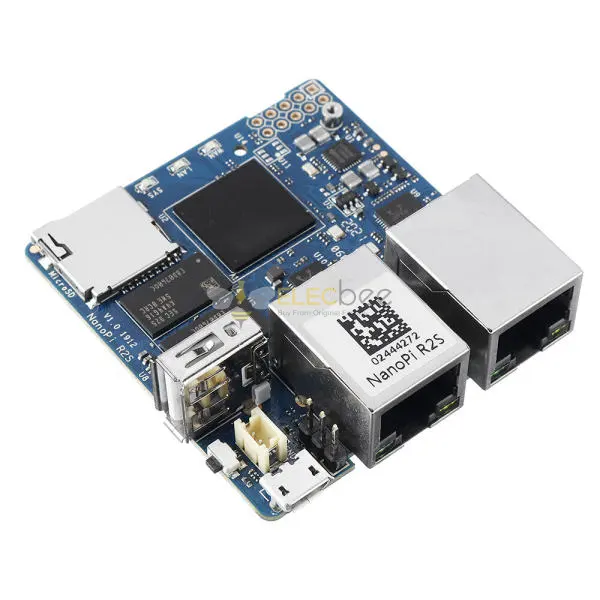

The Elecbee NanoPi R2S Plus RK3328 Edge Computing Development Board is a compact open-source embedded networking platform designed for edge computing, industrial networking, IoT gateways, firewall systems, NAS applications, and high-performance embedded Linux projects. Powered by the Rockchip RK3328 quad-core Cortex-A53 processor, the board integrates dual Gigabit Ethernet interfaces, onboard 32GB eMMC storage, and expandable wireless connectivity.
Technical Specifications
- Main Processor: Rockchip RK3328 Quad-Core Cortex-A53
- CPU Frequency: Up to 1.2GHz
- Memory: 1GB RAM
- Storage: 32GB eMMC onboard
- Network Interfaces: Dual Gigabit Ethernet ports
- Power Management IC: RK805
- USB Interfaces: 2 × USB 2.0
- Wireless Expansion: Optional RTL8822CS SDIO WiFi module
- Wireless Modes: AP Mode / Wireless Relay Mode
- Boot Support: TF Card and eMMC boot
- Operating Systems: OpenMediaVault, Debian Core, Ubuntu Core
- Kernel Support: Linux 6.1 LTS
- Power Interface: USB Type-C
- Housing: Metal enclosure included
- M.2 WiFi Support: Supported
Application Scenarios
The NanoPi R2S Plus is suitable for edge computing systems, industrial networking, soft routing, firewall applications, IoT gateways, network monitoring, embedded Linux projects, NAS servers, wireless networking expansion, and high-speed Ethernet communication systems.
Reliable Embedded Networking Performance
Built around the RK3328 quad-core Cortex-A53 processor and dual native Gigabit Ethernet interfaces, the board delivers stable network throughput and reliable embedded processing performance for continuous industrial and networking operation. The integrated RK805 power management architecture supports efficient dynamic voltage regulation and stable system power delivery.
Wide Compatibility
Compatible with Linux-based operating systems including OpenMediaVault, Debian Core, and Ubuntu Core, the board supports USB expansion modules such as 4G communication devices, USB cameras, and USB WiFi adapters. Optional RTL8822CS WiFi support enables wireless AP and relay functionality for flexible network deployment.
