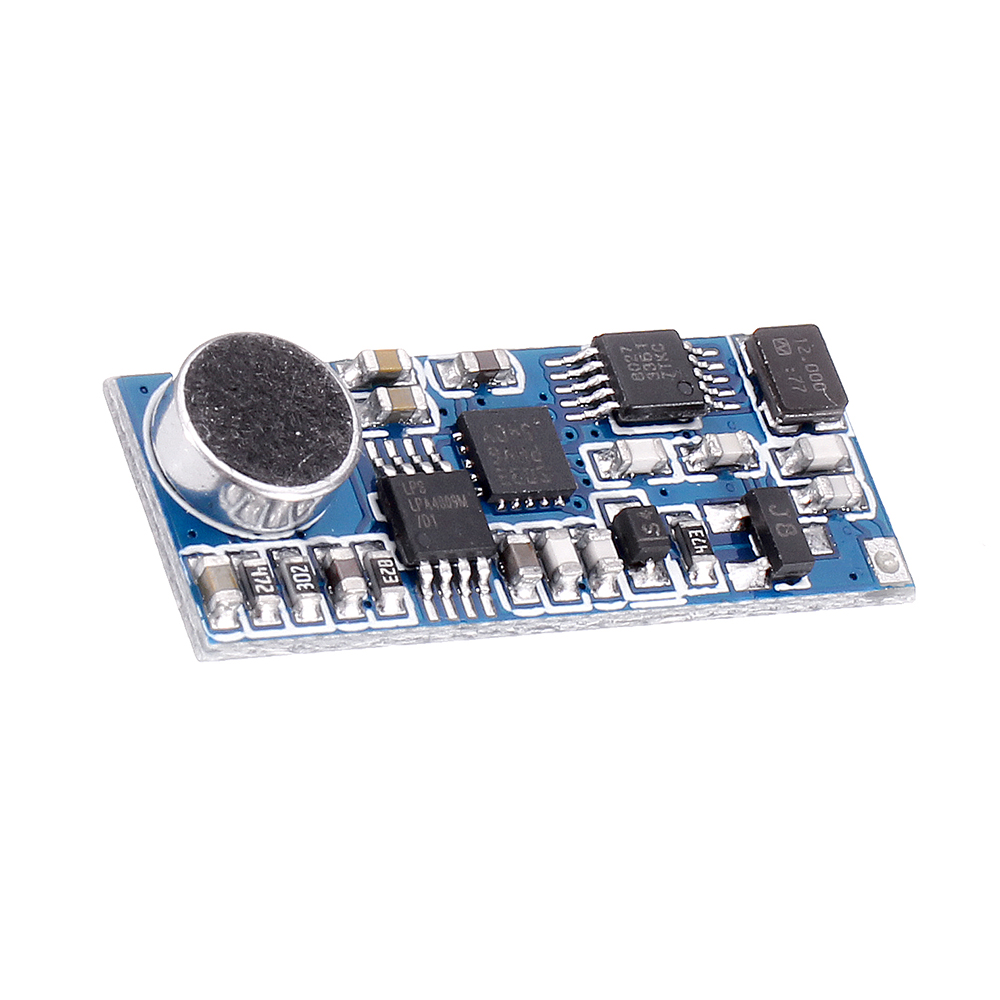

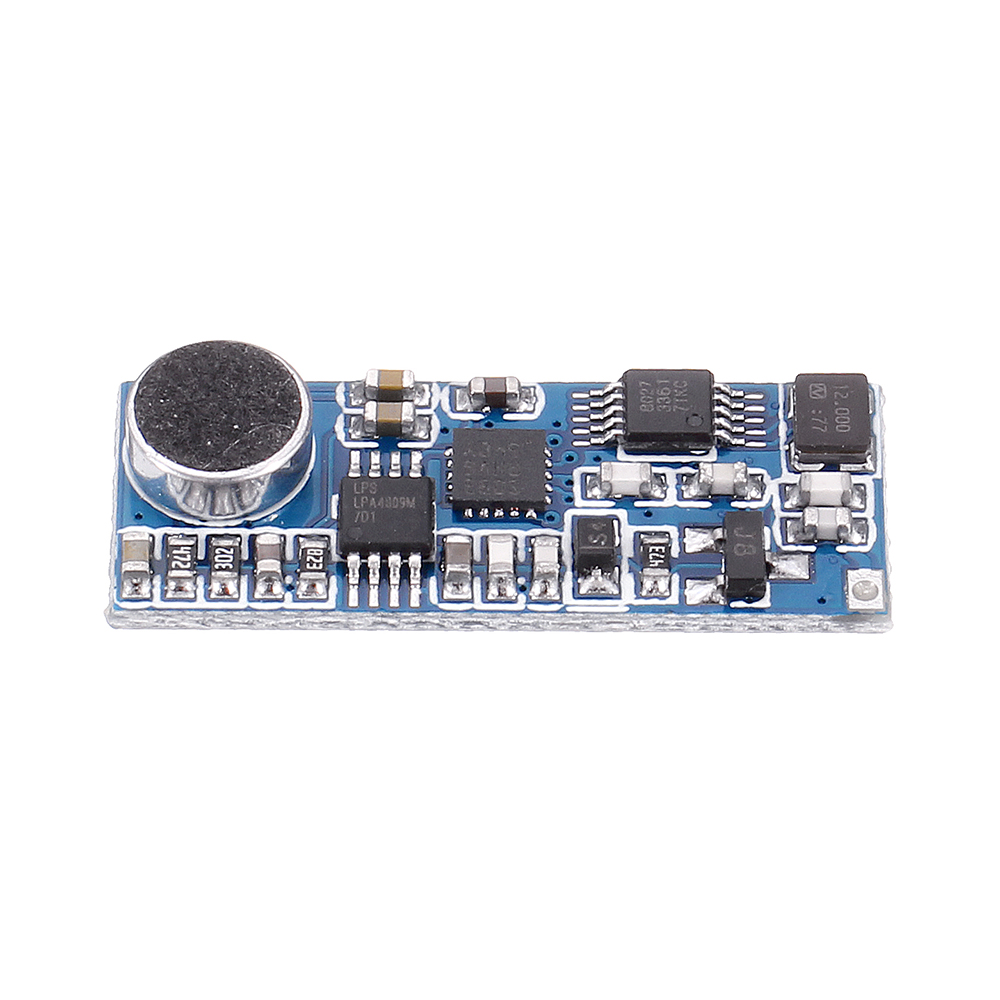

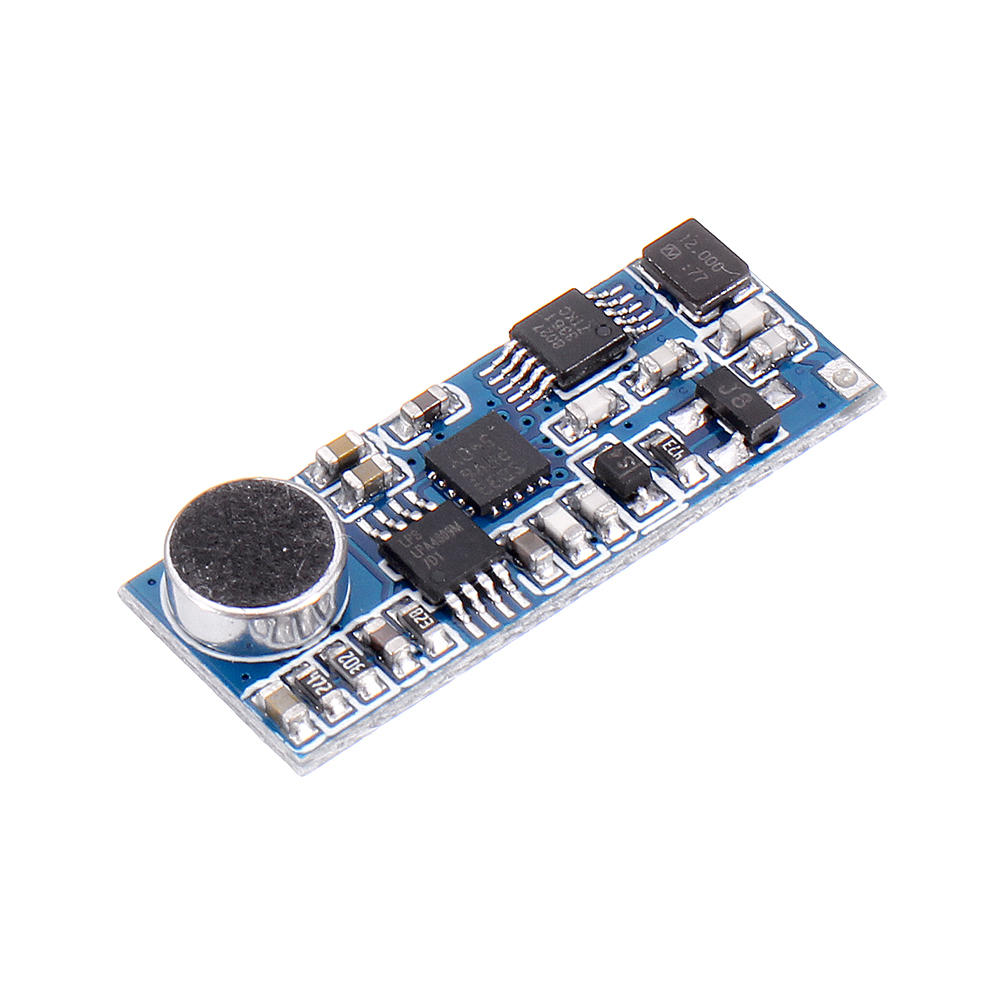

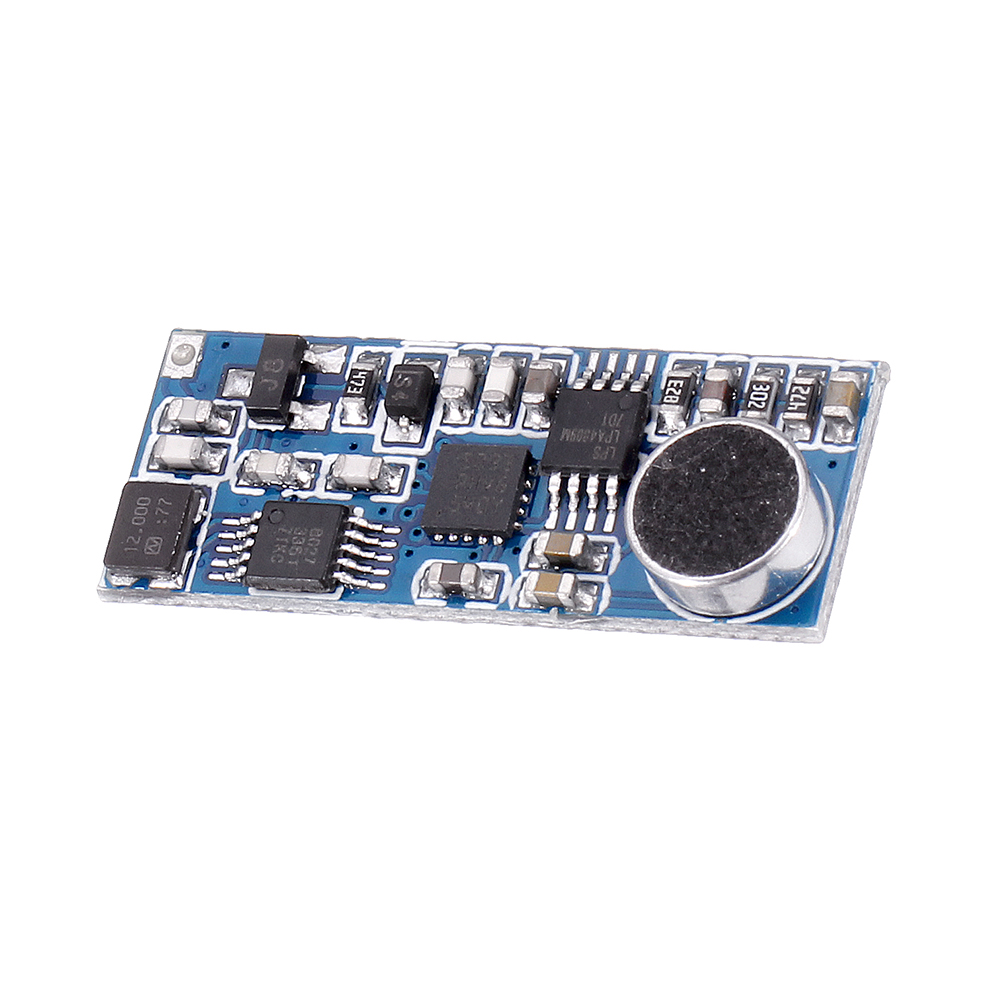

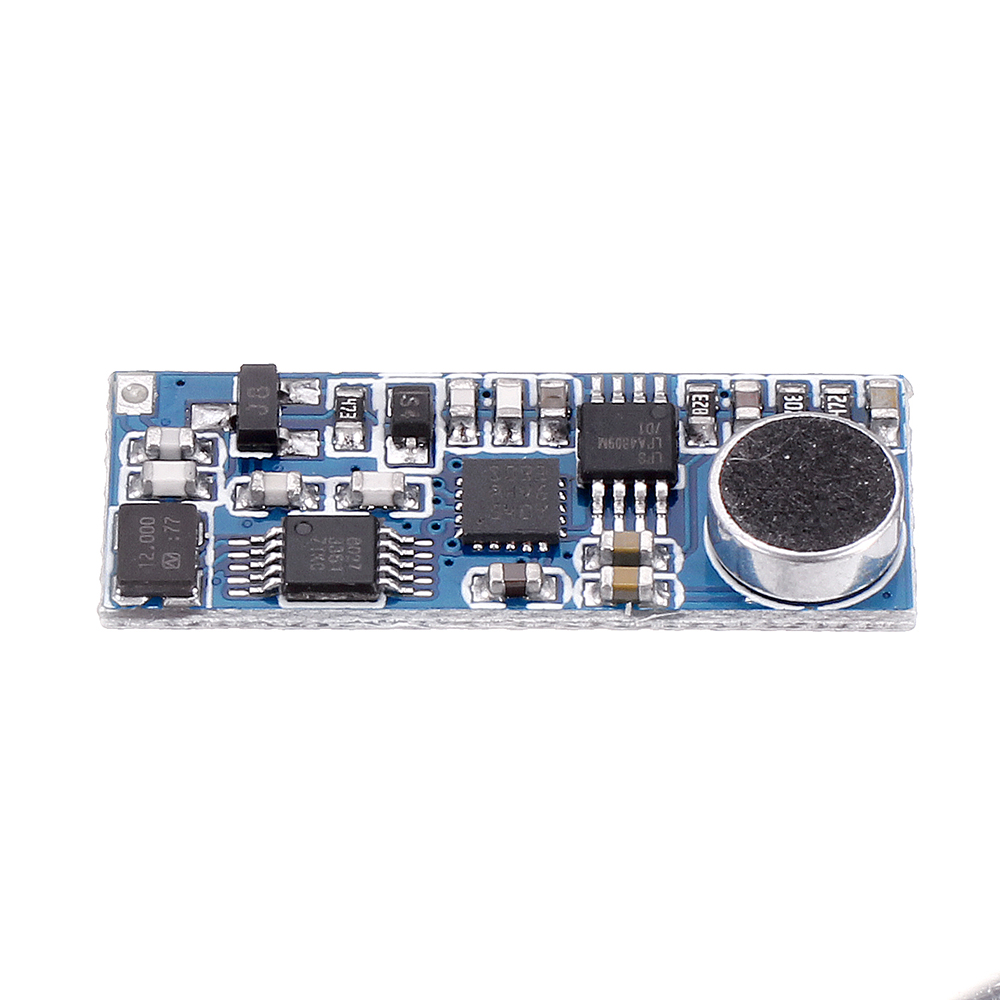

Elecbee Mini FM Transmitter Module Wireless Microphone Single Channel Board 3-5V 100mW Adjustable Sensitivity PLL 76.0MHz-108.0MHz

SKU: EB0047425

Favorites

Key Features

xa0

1. Adopt FM PLL Technique

2. Adopt Audio Low Noise Operational Amplifier as microphone amplification

3. Power Off Automatic Memory Previousxa0 Frequency

4. Adopt High Precision SMD Quartz Crystal Stabilizing Frequency

5. PC Port Configure Transmitting Frequency By Serial Port

Frequency configuration method and procedure:

xa0

1. USB to TTL module and the module connection method

xa0

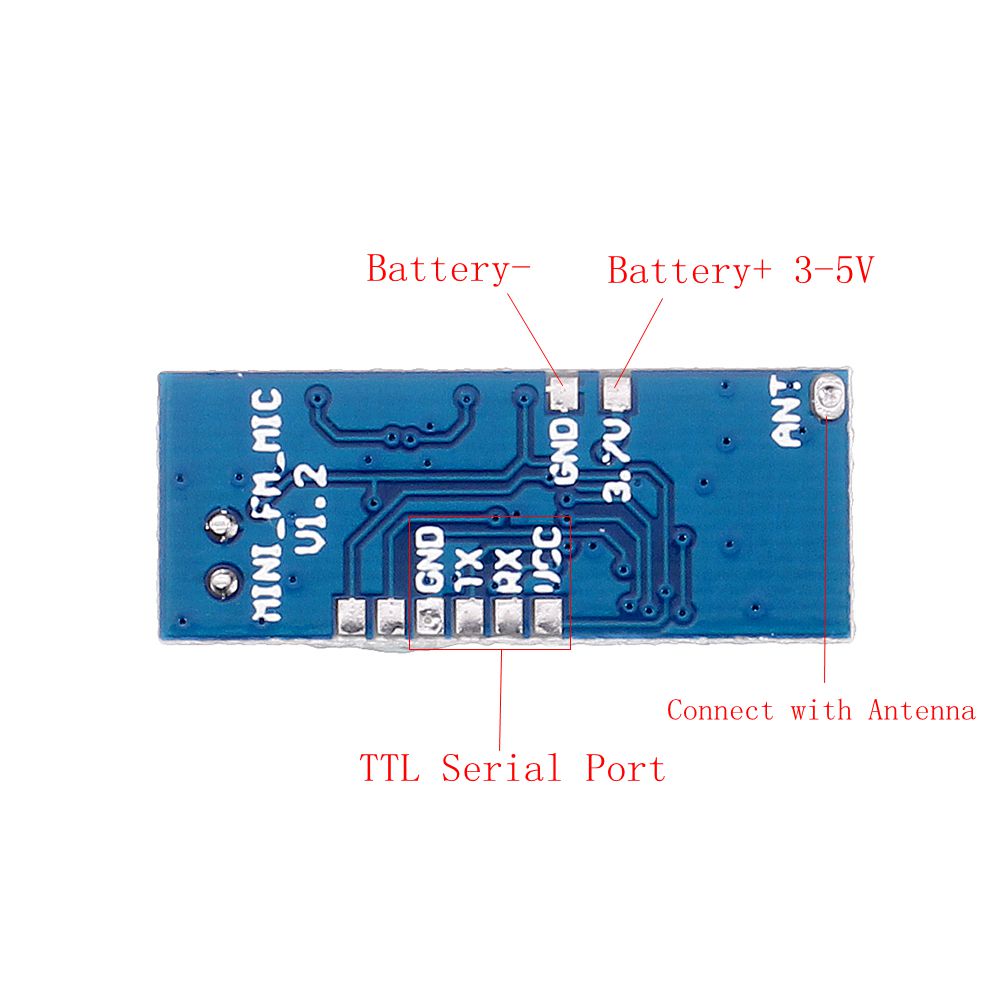

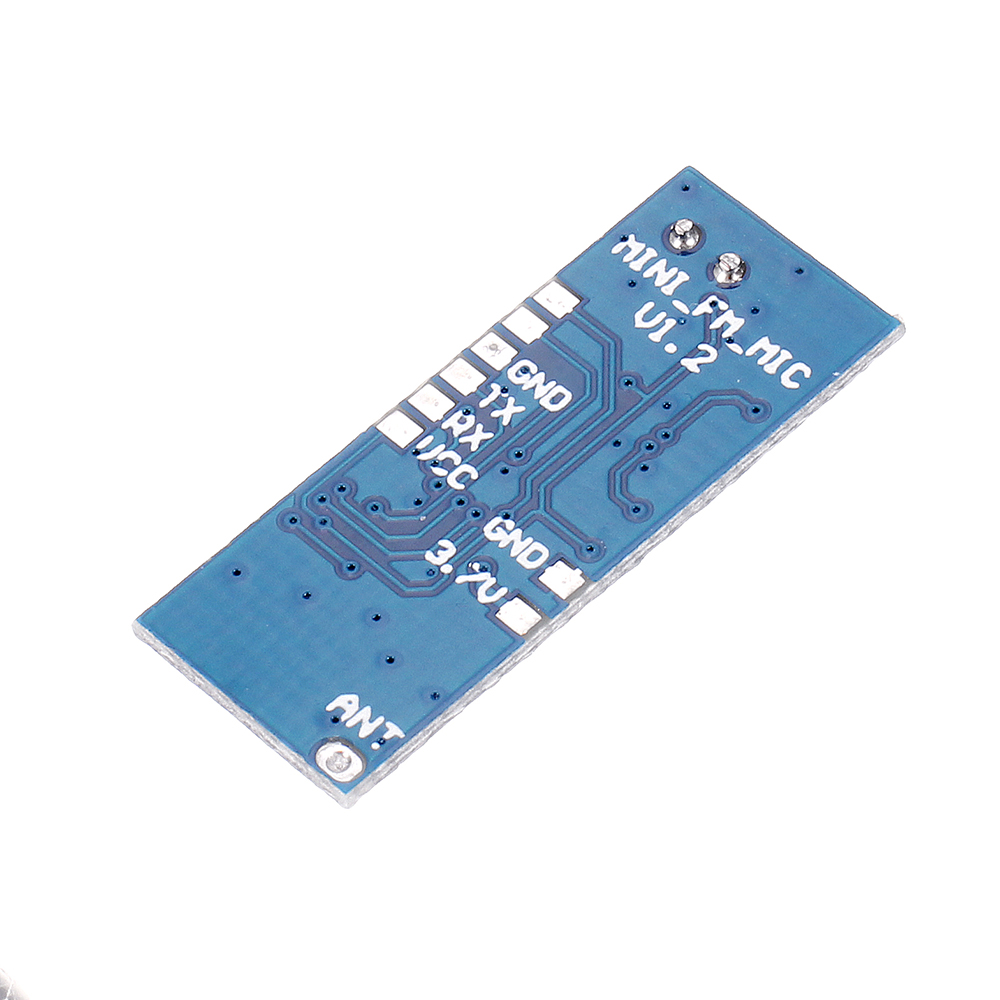

(1): Connect the GND, RXD, TXD and 5V ports of the USB to TTL module (need to be purchased separately) to the GND, TX, RX, VCC of the module, As shown below: (The adapter is not includes)

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

DESCRIPTIONIMAGE1

Show Similar Products >

Description

Product Introduction:

1. Output Power: 100mW

2. Audio Frequency Response Range: 50Hz-18KHz

3. Transmitting Frequency: 76.0MHz-108.0MHz

4. Modulation Mode: Standard FM

5. Sound Track: Single channel

6. Power Supply Voltage: DC 3.0V-5.0V

7. Operating Current: 35mA

8. Adaptive Antenna: 75cm bar antenna

Package includes:

1 x Mini FM Transmitter Module

Mini-FM-Transmitter-Module-Wireless-Microphone-Single-Channel-Board-3-5V-100mW-Adjustable-Sensitivit-1613914
