Elecbee Metal Aviation Connector WY Series Receptacle With 4 Hole Flange Straight 6pin Male Socket WY12J6Z
SKU: EB-WY12J6Z
Favorites
Key Features
Features:
- Material: Zinc alloy shell, robust and durable for harsh conditions
- Specifications: Multiple dimensions and configurations available
- Environment: Outdoor use IP55-IP67
- With bayonet locking structure ,great component to work under waterproof and vibrating conditions.
- Applications: EV batteries, automation, robots, security, monitoring, sensors, etc.
Show More
Specifications
Number of Positions:
2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin9 PinContact Type:
Female PinMale PinIn-Stock
Qty.
1
Unit Price
$ 2.62
Ext. Price
$ 2.62
$ 2.62
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Chrome Plated
Number of Positions
6 Pin
Operating Temperature
-40℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
125VAC
Connector Series
WY12
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
M12
Insulation Color
Black
Description
* Series-level ranges. Exact ratings and contact counts vary by selected product configuration.
01 / Series highlights
Built for rugged industrial connections
WY is a zinc-alloy circular connector family for industrial automation, robotics, outdoor equipment, EV battery systems, transportation, surveillance systems and sensors where cable routing, sealing and vibration resistance matter.
01
Bayonet quick locking
Tool-free quick locking and release with anti-vibration, anti-loosening retention.
02
Premium material system
Chrome-plated zinc alloy shells, PPS inserts and gold-plated brass contacts for power and signal transmission.
03
Flexible cable-end options
Straight, angled, hose, strain-relief, shielded, panel and in-line configurations support varied installation needs.
04
Terminations & service life
Solder, screw and crimp terminals; 500 mating cycles for standard versions and 1500 cycles for USB-compatible models. Full cable assembly is available.
02 / Configuration guide

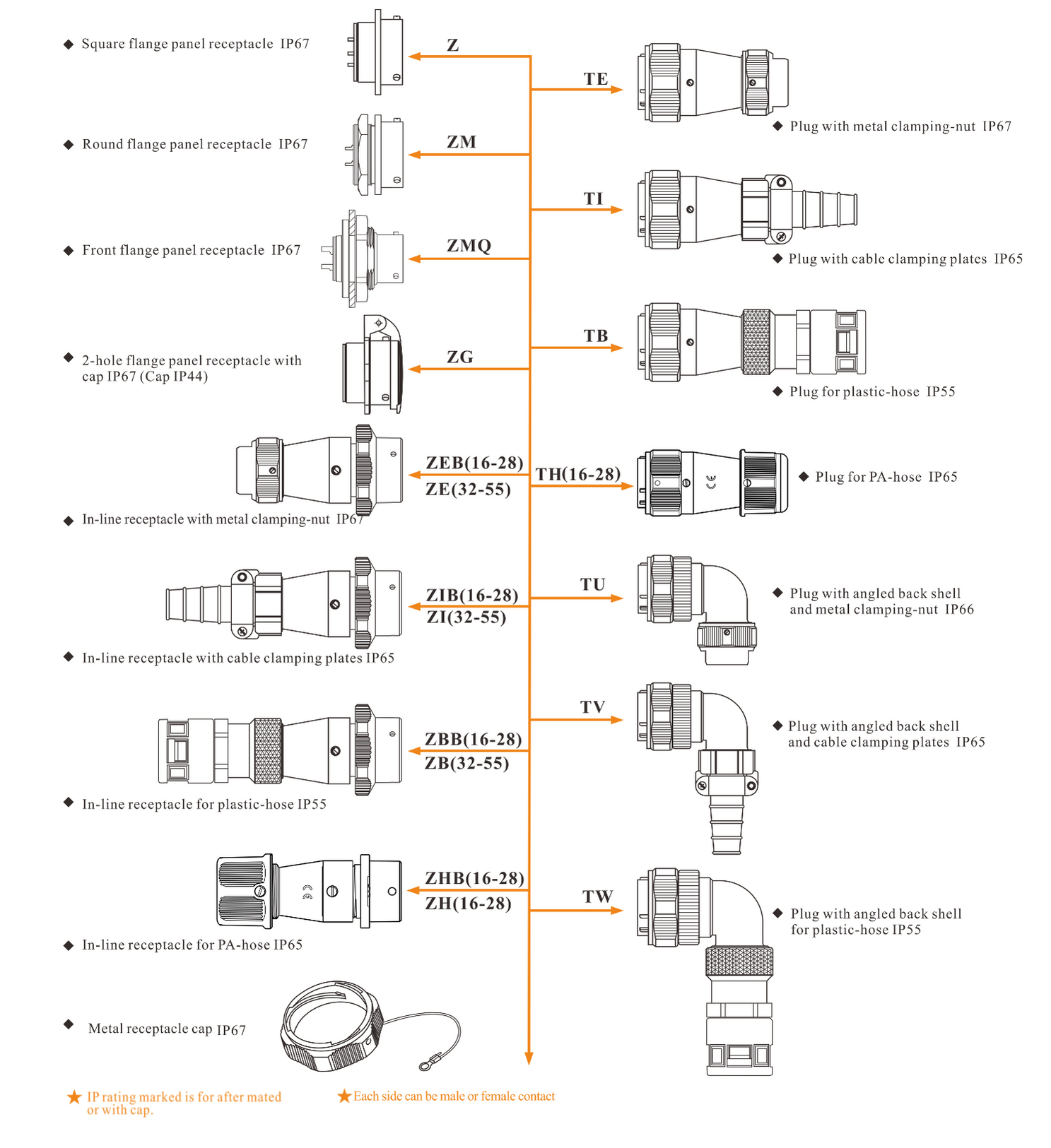

WY housing style guide
Rebuilt as clean product-style boards instead of the original crowded chart.
Configuration reference Cleaner image boards Shared across WY series
PLUGS
Plug housing configurations
RECEPTACLES
Receptacle housing configurations
Use these guides to identify housing style first. Then confirm the exact mating pair, shell size and selected option above.
03 / Ordering code reference
Part number system
Rebuilt as a clean infographic from the original content for easier reading and consistency with the page layout.
Check the ordering-code logic together with the selected product option to confirm shell style, contact gender, termination type and contact quantity.

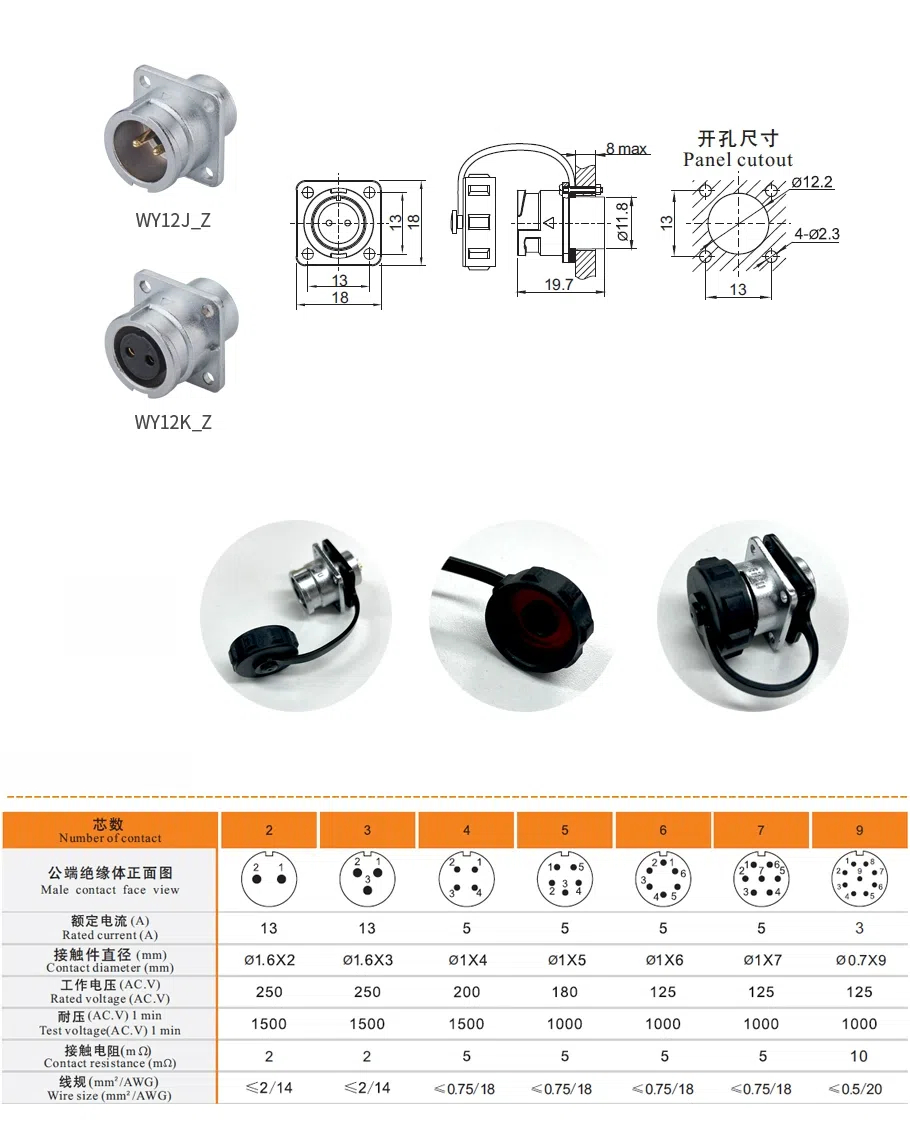

04 / Dimensional drawings
Reference dimension drawings
Shown directly in the page for faster review.
Plug dimensions
Receptacle dimensions
05 / Electrical specifications
Electrical ratings by contact arrangement
RATED CURRENT
5–150 A
RATED VOLTAGE
400–500 V AC
INSULATION
2000 MΩ
| SHELL SIZE | CONTACT OPTIONS | RATED CURRENT | RATED VOLTAGE | TEST VOLTAGE (AC, 1 MIN) |
CONTACT RESISTANCE |
|---|---|---|---|---|---|
| WF16 | 2–10, including B options | 5–15 A | 400–500 V AC | 1200–1500 V AC | 2.5 mΩ |
| WF20 | 2–15, including 6B | 5–25 A | 400–500 V AC | 1200–1500 V AC | 1–5 mΩ |
| WF24 | 2–19, including 12B | 5–25 A | 400–500 V AC | 1200–1500 V AC | 1–5 mΩ |
| WF28 | 2–35, including BB and B options | 5–60 A | 400–500 V AC | 1200–1500 V AC | 0.5–5 mΩ |
| WF32 | 4–19, including 8B and 10B | 10–50 A | 500 V AC | 1500 V AC | 0.5–2.5 mΩ |
| WF40 | 5–52 | 5–50 A | 400–500 V AC | 1200–1500 V AC | 0.5–5 mΩ |
| WF48 | 5–42 | 10–100 A | 500 V AC | 1500 V AC | 0.3–2.5 mΩ |
| WF55 | 4–61 | 10–150 A | 500 V AC | 1500 V AC | 0.2–2.5 mΩ |
All arrangements in the supplied solder-contact chart list an insulation resistance of 2000 MΩ. Wire size, contact diameter and individual rating vary by the selected contact arrangement; use the exact configuration table for final selection.
CONTACT LAYOUTS
Solder contact specification & face view
The complete reference chart preserves the male contact face views, contact diameter, rated current, voltage, test voltage, contact resistance, insulation resistance and wire-size data for each listed arrangement.
06 / Usage guidance
Applications & selection notes
Typical applications
- Industrial control and automation
- Machinery, motion systems and robotics
- Communication, monitoring and security equipment
- Equipment signal and power interfaces
Check before ordering
- Correct shell size and mating pair
- Contact count and contact arrangement
- Cable entry, termination and strain relief
- Voltage/current for the selected contact layout
- Environmental exposure and installation clearance
