Elecbee Metal Aviation Connector WY Series Plug with metal clamping-nut Straight 7pin Female Plug WY12K7TE
SKU: EB-WY12K7TE
Favorites
Key Features
Features:
- Material: Zinc alloy shell, robust and durable for harsh conditions
- Specifications: Multiple dimensions and configurations available
- Environment: Outdoor use IP55-IP67
- With bayonet locking structure ,great component to work under waterproof and vibrating conditions.
- Applications: EV batteries, automation, robots, security, monitoring, sensors, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Female Pin
Shell Finish
Chrome Plated
Number of Positions
7 Pin
Operating Temperature
-40℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
125VAC
Connector Series
WY12
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
M12
Insulation Color
Black
Description

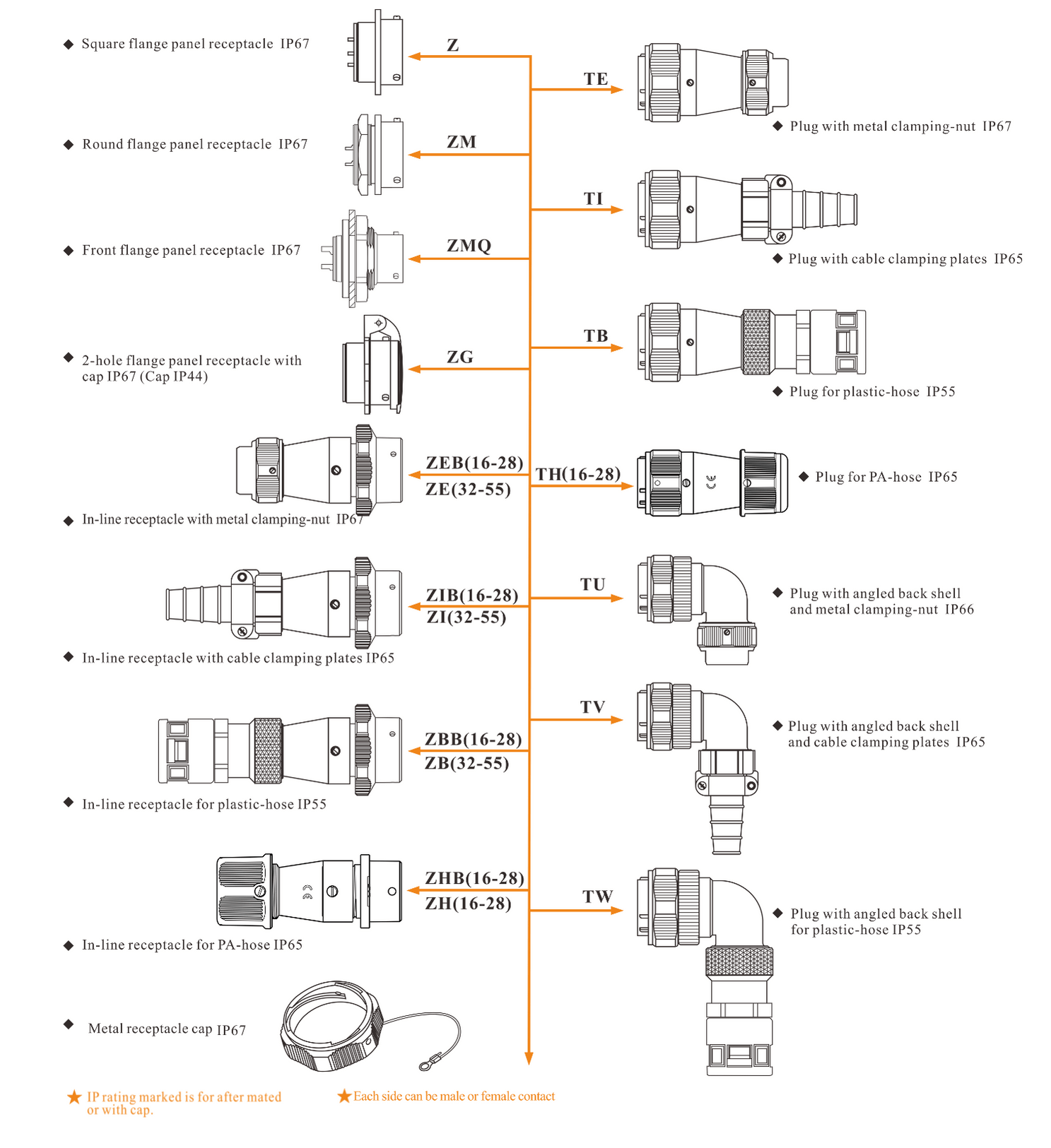

WY series is zinc-alloy-made shell enables the series to be used in robust conditions. Multi dimensions and configurations are available to choose from. This series ranges from IP55 to IP67, and can be used in many outdoor applications such as EV batteries, automation, robots, security, monitoring, sensors, etc.

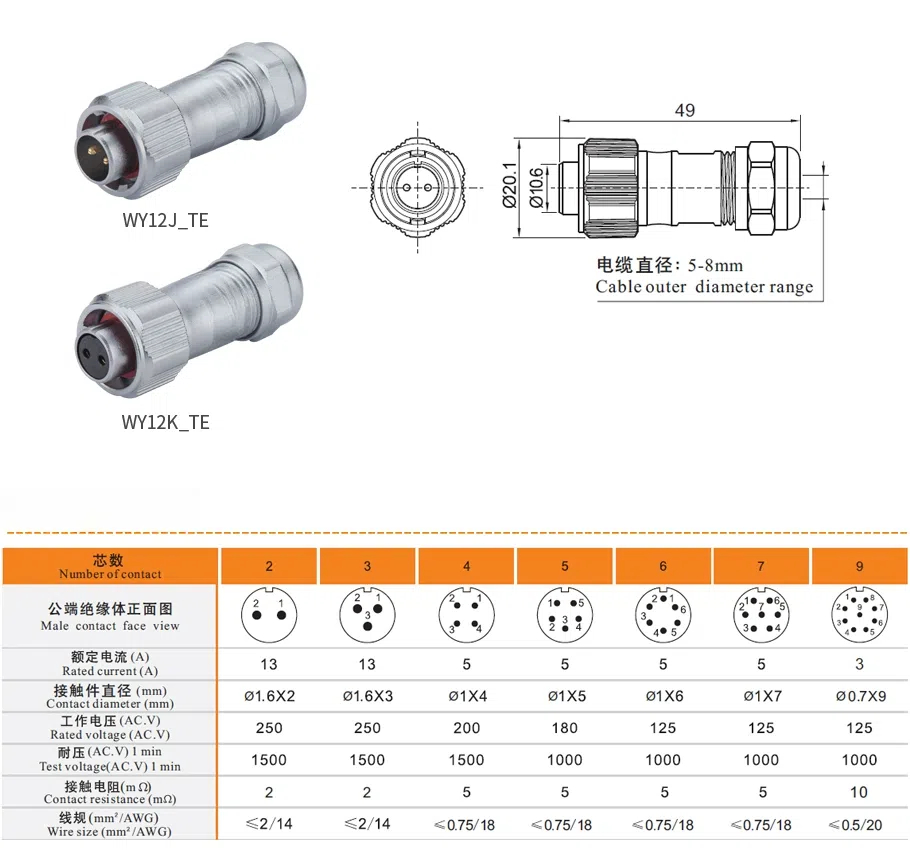

Spec & Faceview：
1) panel cutout dimension 16-55mm，Clip-on Coupling
2) 1-61 contacts/p>
3) rated current: 5-150 A
4) Shell material：Zinc alloy with chrome plating
5) Contact material：Brass with gold plating
6) Termination：Solder, Screw,Crimp Termination
7) Insert material：PPS, max temperature 260°C
8) Mating cycle：500
9) Temperature range：-40~+85°C
