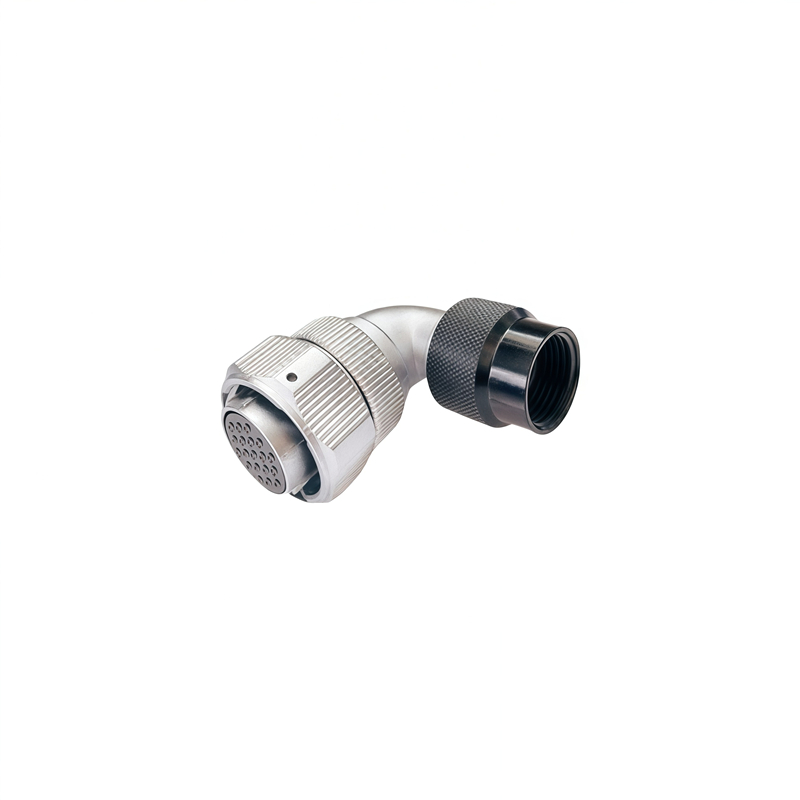

Elecbee Metal Aviation Connector WY Series Plug with angled back shell and plastic-hose Right Angled 5pin Male Plug WY20J5TW
SKU: EB-WY20J5TW
Favorites
Key Features
Features:
- Material: Zinc alloy shell, robust and durable for harsh conditions
- Specifications: Multiple dimensions and configurations available
- Environment: Outdoor use IP55-IP67
- With bayonet locking structure ,great component to work under waterproof and vibrating conditions.
- Applications: EV batteries, automation, robots, security, monitoring, sensors, etc.
Show More
In-Stock
Qty.
1
Unit Price
$ 4.86
Ext. Price
$ 4.86
$ 4.86
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Chrome Plated
Number of Positions
5 Pin
Operating Temperature
-40℃~+85℃
Shielding
Unshielded
Ingress Protection
IP55
Rated Current
10A
Rated Voltage
500VAC
Connector Series
WY20
Color
Silver
Fastening Type
Bayonet
Orientation
Right Angled
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG
Shell Size
M20
Insulation Color
Black
Description

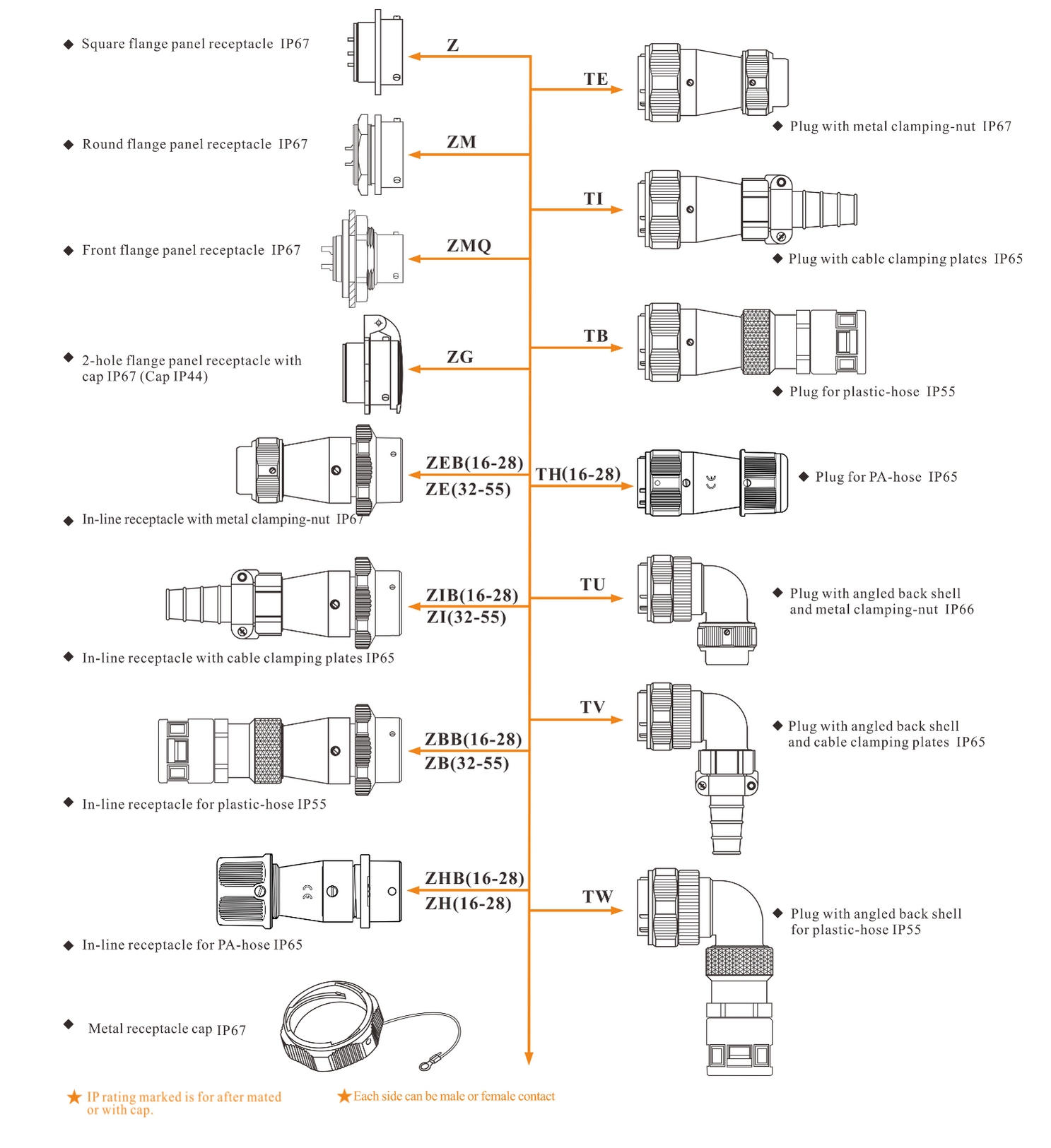

WY series is zinc-alloy-made shell enables the series to be used in robust conditions. Multi dimensions and configurations are available to choose from. This series ranges from IP55 to IP67, and can be used in many outdoor applications such as EV batteries, automation, robots, security, monitoring, sensors, etc.

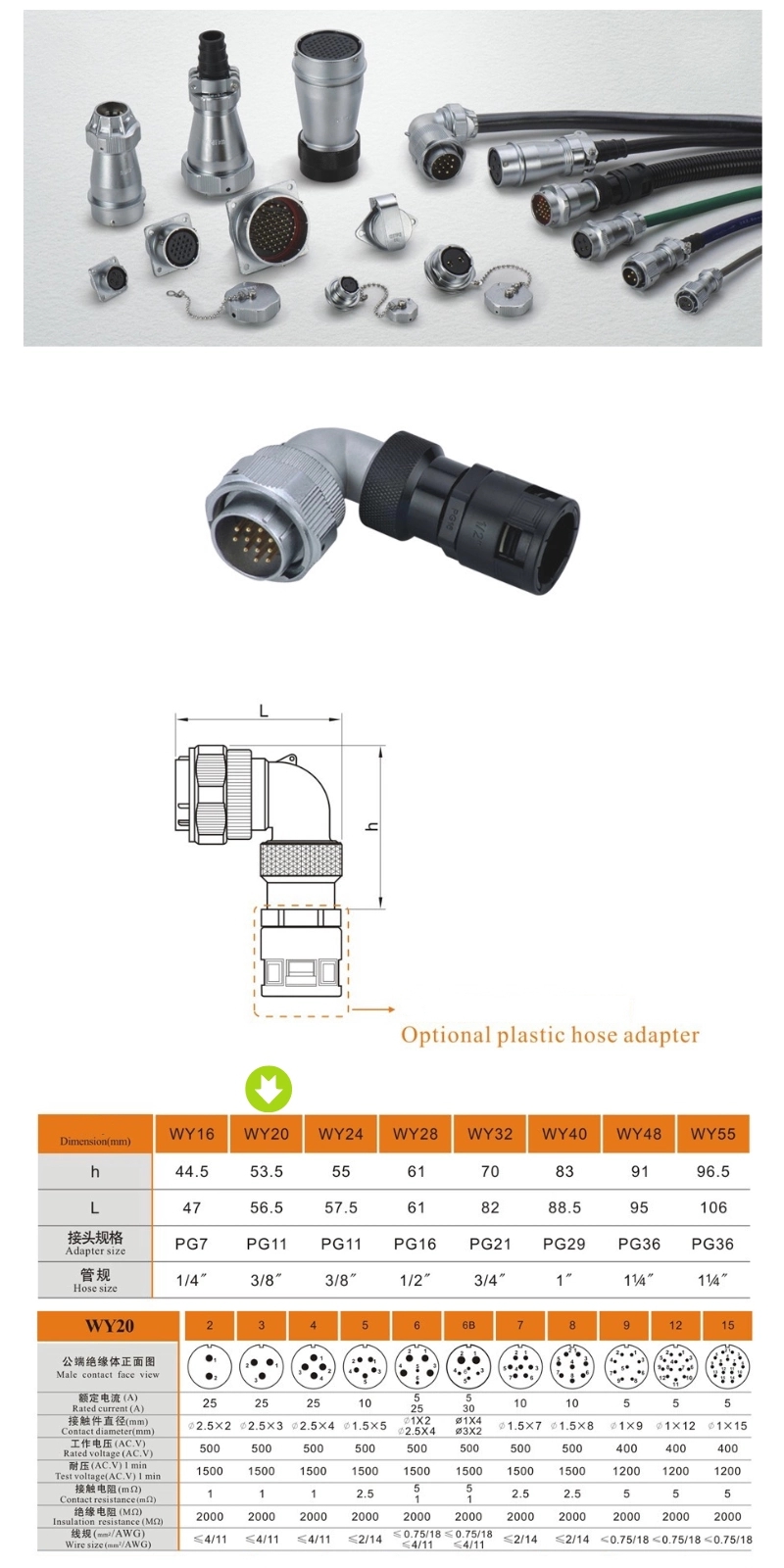

Spec & Faceview：
1) panel cutout dimension 16-55mm，Clip-on Coupling
2) 1-61 contacts/p>
3) rated current: 5-150 A
4) Shell material：Zinc alloy with chrome plating
5) Contact material：Brass with gold plating
6) Termination：Solder, Screw,Crimp Termination
7) Insert material：PPS, max temperature 260°C
8) Mating cycle：500
9) Temperature range：-40~+85°C
