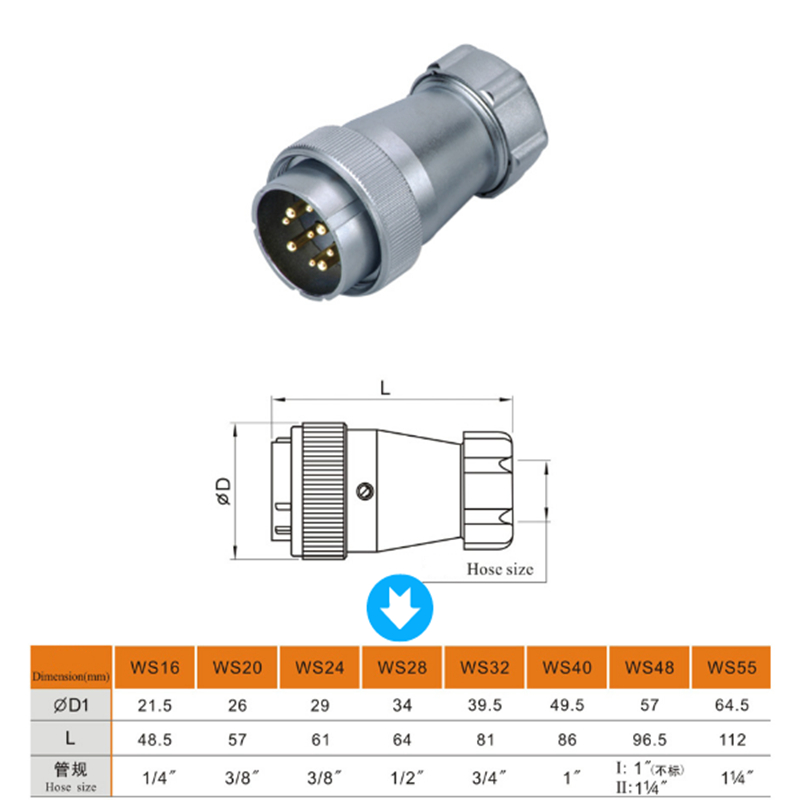

Elecbee Metal Aviation Connector WS Series Plug With Metal Hose WS28K17TP Straight 17pin Female Plug WS28K17TP
SKU: EB-WS28K17TP
Favorites
Key Features
Features:
- Material: Zinc alloy shell, robust and durable for harsh conditions
- Specifications: Multiple dimensions and configurations available
- Environment: Indoor use only IP44
- Applications: Widely used in machinery and equipment; supports power, signal, and hybrid connections (optional)
Show More
In-Stock
Qty.
1
Unit Price
$ 6.02
Ext. Price
$ 6.02
$ 6.02
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Female Pin
Shell Finish
Chrome Plated
Number of Positions
17 Pin
Operating Temperature
-40℃~+85℃
Shielding
Unshielded
Rated Current
10A
Rated Voltage
500VAC
Connector Series
WS28
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG
Shell Size
28
Insulation Color
Black
Description
WS series zinc-alloy-made shell enables the series to be used in robust conditions. Multi dimensions and configurations are available to choose from. This series is mostly for indoor use only, without any waterproof level.

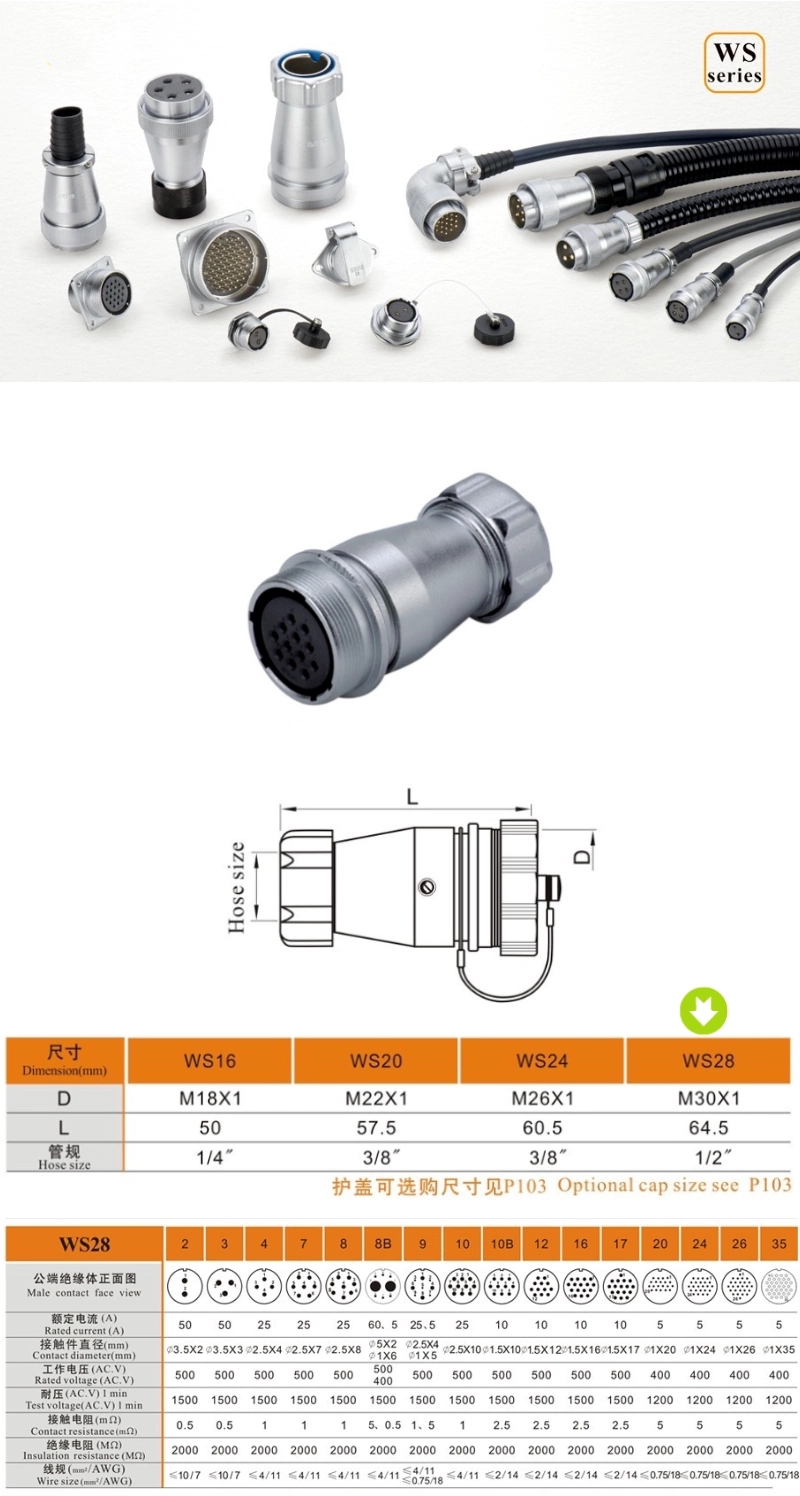

Spec & Faceview:
1) panel cutout dimension 16-55mm，Threaded Coupling
2) 1-61 contacts/p>
3) rated current: 5-150 A
4) Shell material：Zinc alloy with chrome plating
5) Contact material：Brass with gold plating
6) Termination：Solder, Screw,Crimp Termination
7) Insert material：PPS, max temperature 260°C
8) Mating cycle：500
9) Temperature range：-40~+85°C
