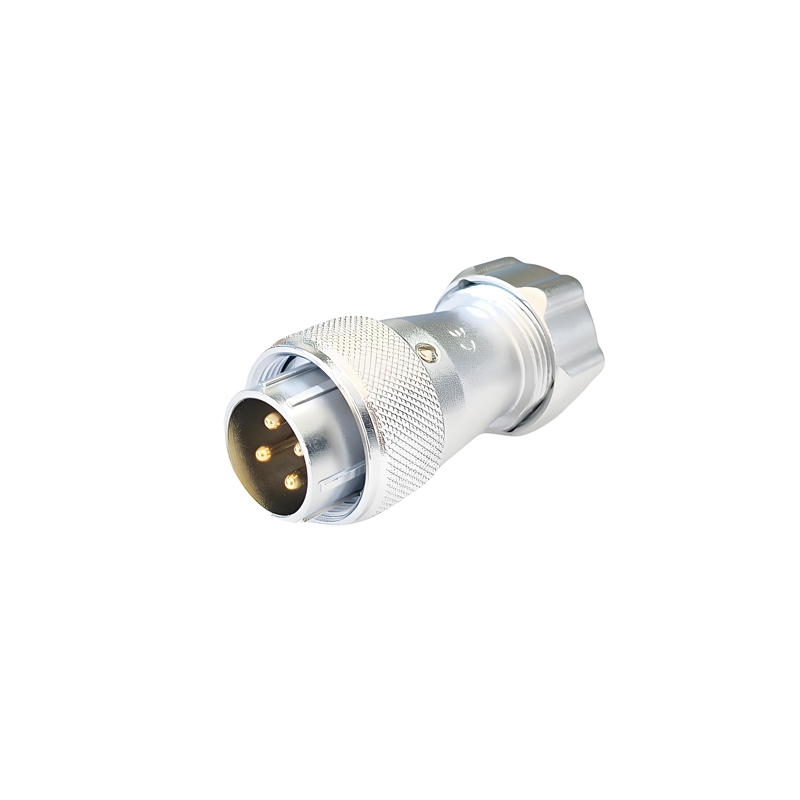

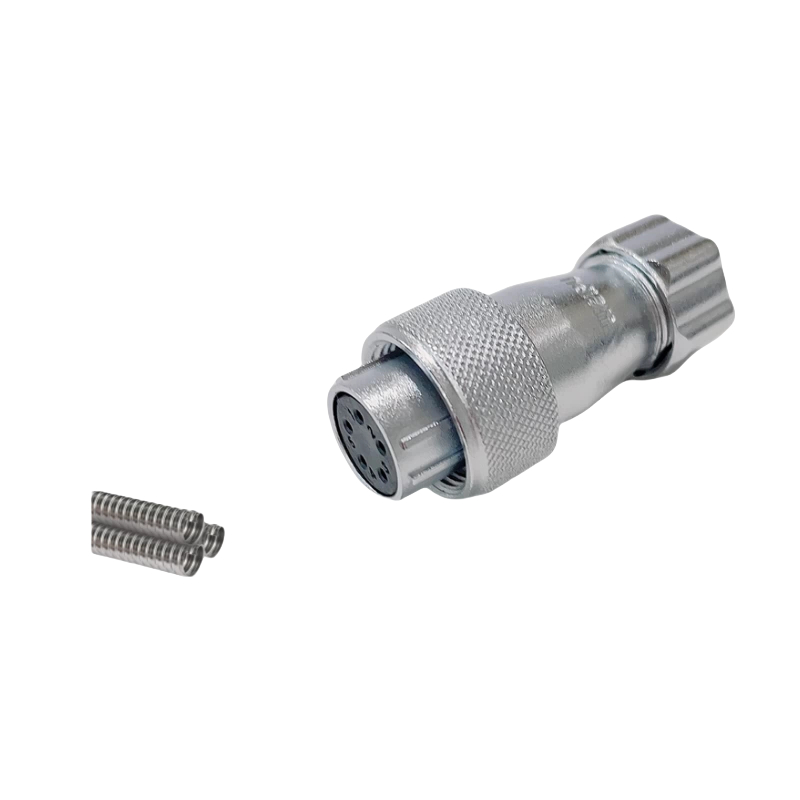

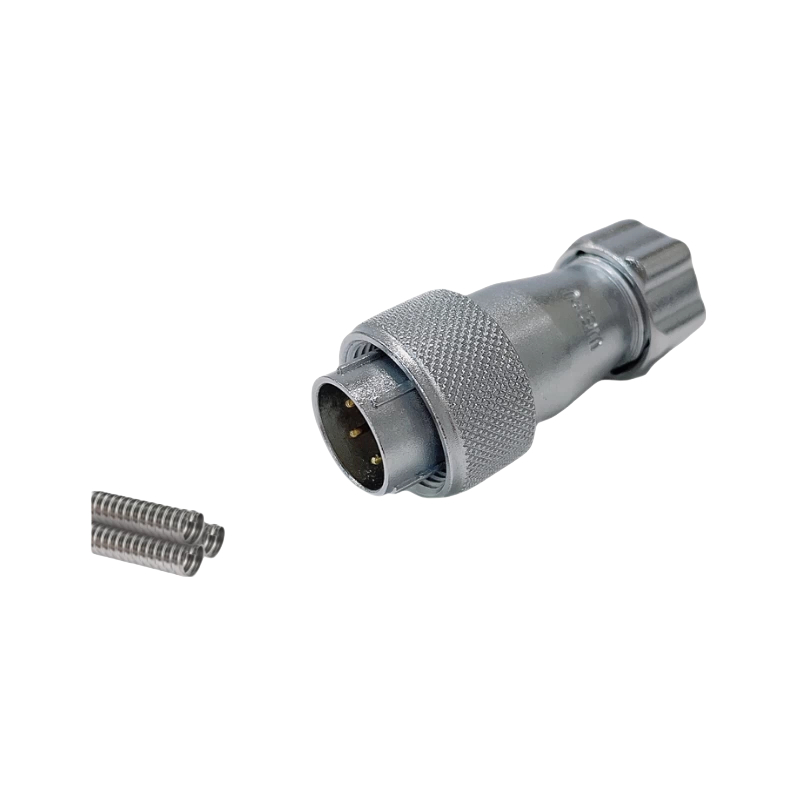

Elecbee Metal Aviation Connector WS Series plug With Metal Hose WS16K4BTP Straight 4Bpin Female plug WS16K4BTP
SKU: EB-WS16K4BTP
Favorites
Key Features
Features:
- Material: Zinc alloy shell, robust and durable for harsh conditions
- Specifications: Multiple dimensions and configurations available
- Environment: Indoor use only IP44
- Applications: Widely used in machinery and equipment; supports power, signal, and hybrid connections (optional)
Show More
In-Stock
Qty.
1
Unit Price
$ 2.24
Ext. Price
$ 2.24
$ 2.24
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Female Pin
Shell Finish
Chrome Plated
Number of Positions
4 Pin
Operating Temperature
-40℃~+85℃
Shielding
Unshielded
Rated Current
15A
Rated Voltage
500VAC
Connector Series
WS16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG
Shell Size
16
Insulation Color
Black
Description

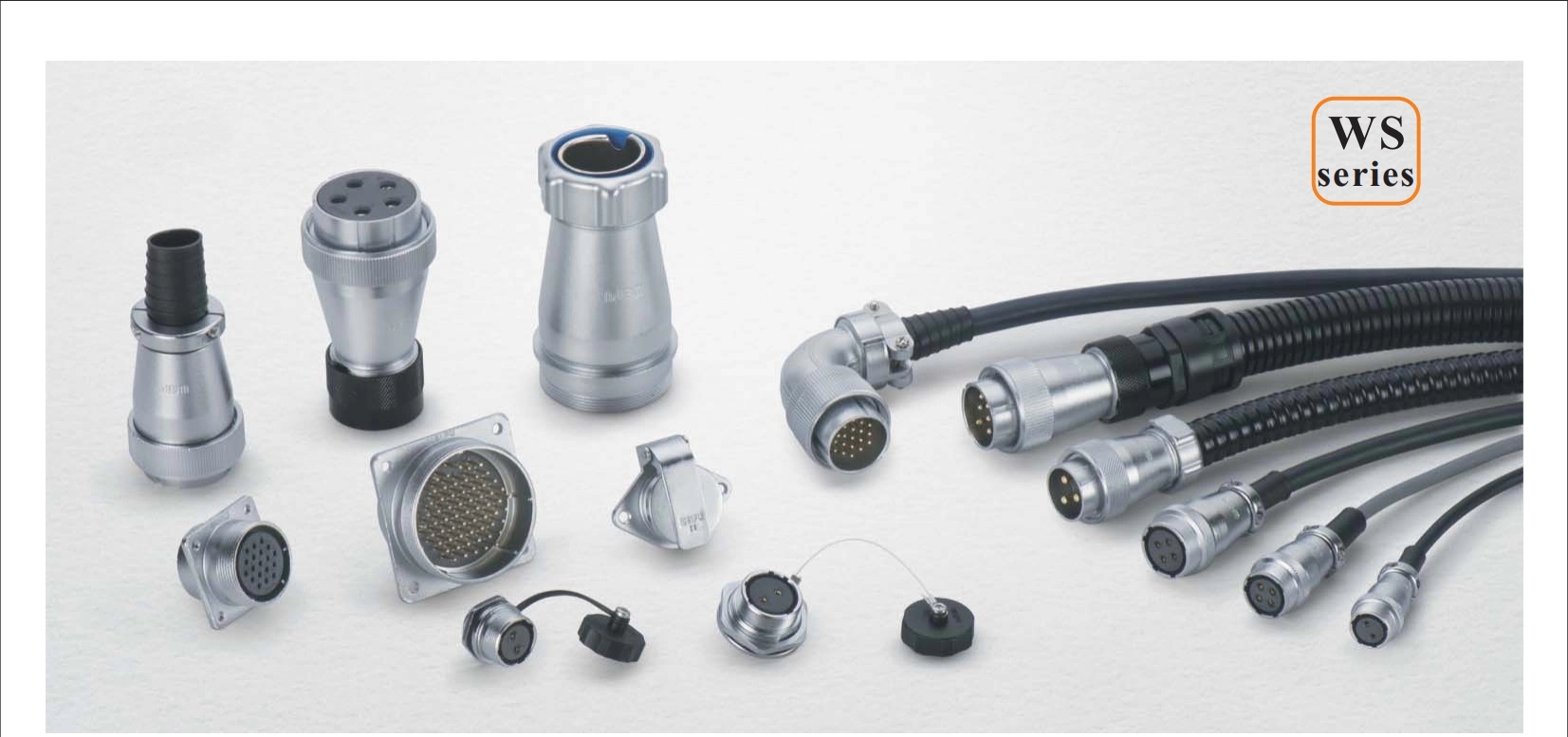

WS series zinc-alloy-made shell enables the series to be used in robust conditions. Multi dimensions and configurations are available to choose from. This series is mostly for indoor use only, without any waterproof level.

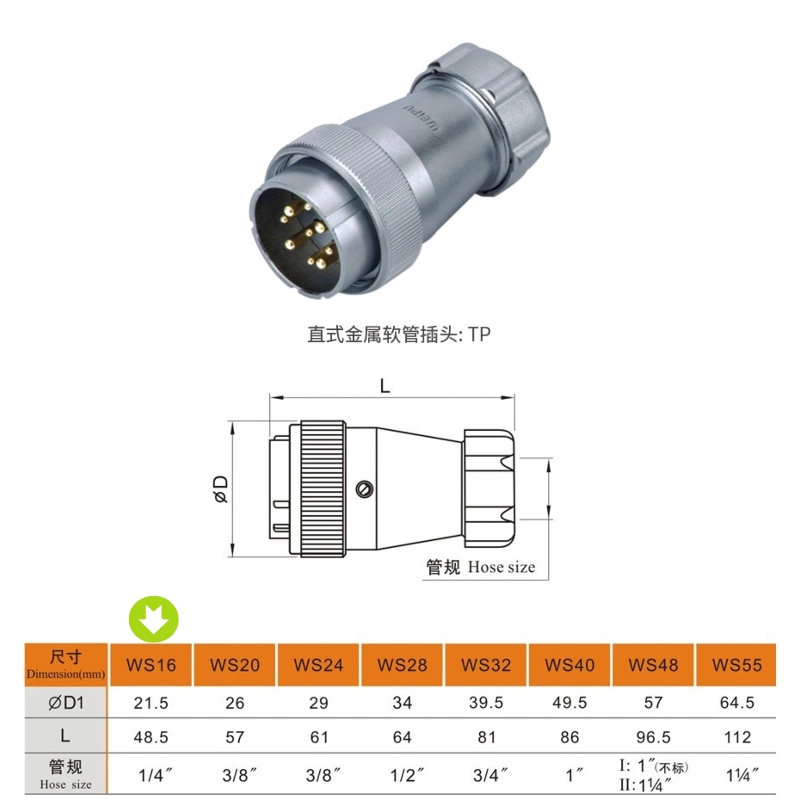

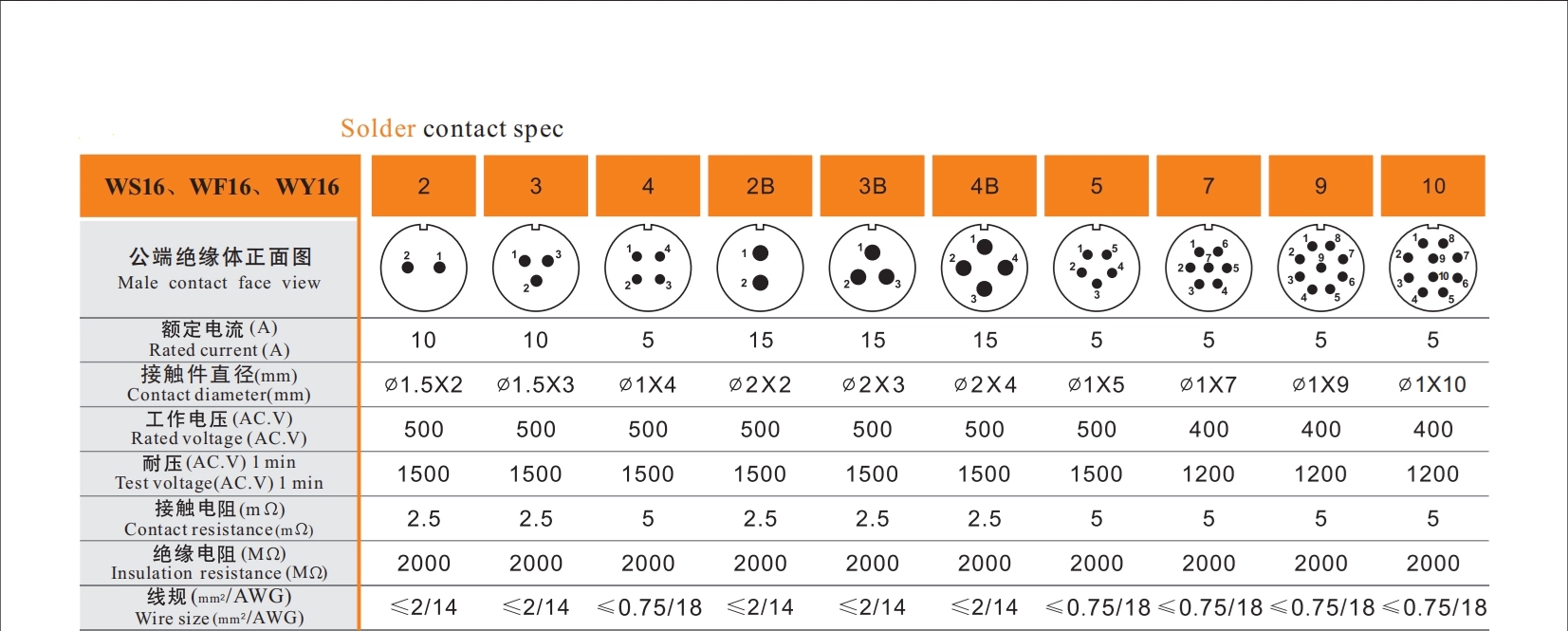

Spec & Faceview:
1) panel cutout dimension 16-55mm，Threaded Coupling
2) 1-61 contacts/p>
3) rated current: 5-150 A
4) Shell material：Zinc alloy with chrome plating
5) Contact material：Brass with gold plating
6) Termination：Solder, Screw,Crimp Termination
7) Insert material：PPS, max temperature 260°C
8) Mating cycle：500
9) Temperature range：-40~+85°C
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
R
Perfect fit for our industrial control panel. The zinc alloy shell feels solid and well-made, exactly what we needed for a durable connection in a dry workshop environment.
D
Good quality aviation plug. I chose the 4-pin female version for signal routing. It’s sturdy and locks securely. Just wish it was IP65 since it's metal—would’ve been better for occasional damp spots.
H
Used this WS16K4BTP in a CNC machine retrofit. Metal hose attachment works great, and the straight plug saves space. Exactly as described.
M
Solid build and good for indoor setups. Ordered two sizes but one had a slight thread misalignment. Still functional, just needed extra care during installation.
R
Reliable connector for hybrid power/signal use. The zinc alloy body resists wear, and multiple configurations make it flexible across projects.
