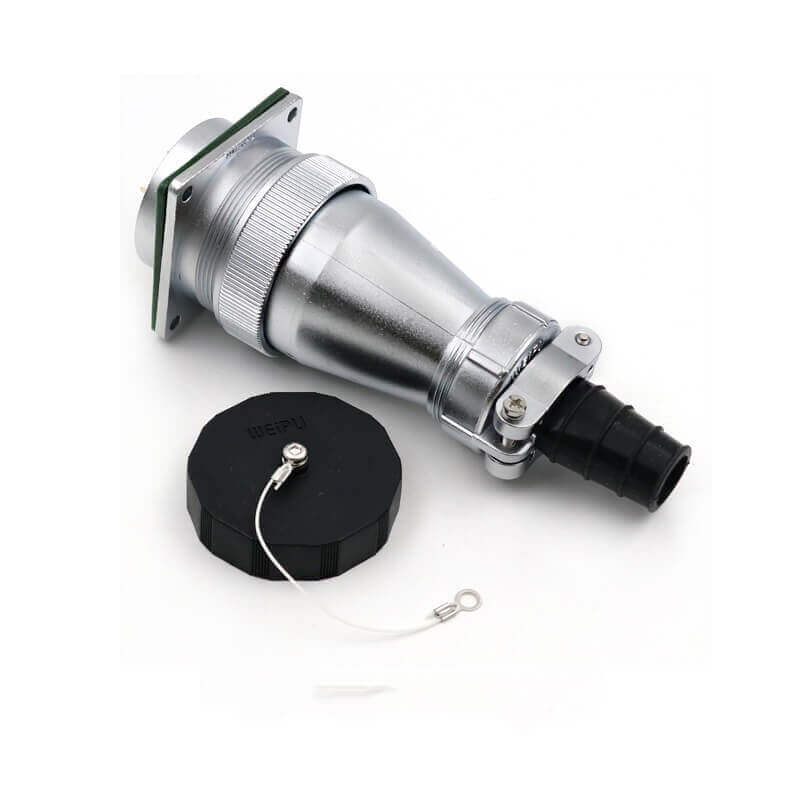

Elecbee Male Plug and Female Socket WF48/42pin Connector Straight Cable TI+Z Aviation Square Receptacle Connector
SKU: EB-WF48J42TI-WF48K42Z
Favorites
Key Features
Feature
- Female socket, Male plug , Straight, waterproof, Sloder up, 42pin, 4-hole flange;
- Termination Type: sloder
- Easy quick connect and disconnect coupling;
- Options: 5/7/20/27/38/42 pins
- Hole Diameter: 48mm
- From the OEM Original Factory, same quality with much better price.
Main Application of WF48 Connectors:
- Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
In-Stock
Qty.
1
Unit Price
$ 25.46
Ext. Price
$ 25.46
$ 25.46
Qty.
Unit Price
Ext. Price
10+
$24.19
$ 241.90
20+
$22.91
$ 458.20
100+
$20.37
$ 2037.00
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Crimp
Contact Type
Male，Female Pin
Shell Finish
Chrome Plated
Number of Positions
42 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
10A
Rated Voltage
500VAC
Connector Series
WF48
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Shell Size
48
Insulation Color
Black
Description
WF48 TI+Z 42pin
 (5)-1_watermark.jpg)
 (6)-1_watermark.jpg)
 (3)-1_watermark.jpg)
 (4)-1_watermark.jpg)
Electrical Characteristics
- Working Voltage: 500 V rms
- insulator resistance:2000 ohm
- test Voltage:1500 V rms
Mechanical Characteristics
- Coupling: threaded
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Temperature Range: -40°C~85°C
- IP65
Material:
| Part | Material | Finished |
| Body | Zinc | silver |
| Center Contact Pin | gold-plated brass | gold |
| Insulator | PPS | black |
