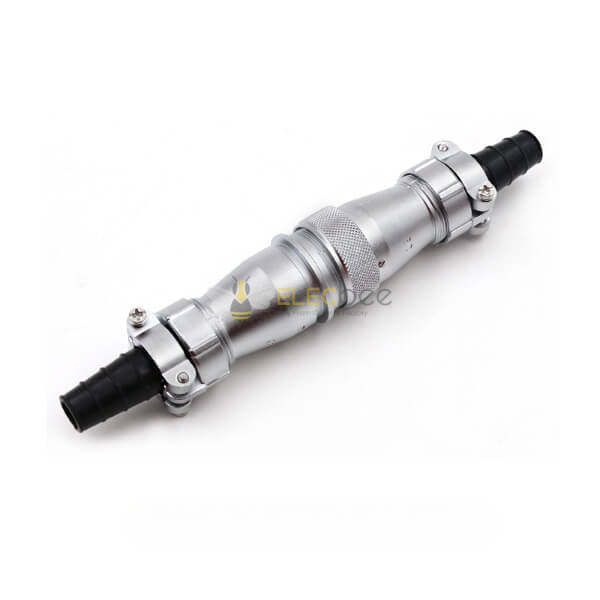

Elecbee Male Plug and Female Socket WF28/20pin Connector Straight Docking TI+ZI Aviation Connector
SKU: EB-WF28J20TI-WF28K20ZI
Favorites
Key Features
Features:
- Specification: WF28 Connector, Male Plug, Female Socket, Solder Cup, 20 Pin，Straight
- Shell Material: Zinc alloy with chrome plating
- Coupling: Thread
- Termination Type: Solder
- Insulator: High-temperature PPS
- Temperature Range: -40°C~85°C
- Contact material: Brass with gold plating
- Hole Diameter: 28mm
- Number of Contacts: 2/3/4/7/8/9/10/12/16/17/20/24/26Pin
- Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Datasheet
In-Stock
Qty.
1
Unit Price
$ 12.15$ 14.29
Ext. Price
$ 12.15$ 14.29
$ 12.15$ 14.29
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Chrome Plated
Number of Positions
20 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
5A
Rated Voltage
400VAC
Connector Series
WF28
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
28
Insulation Color
Black
