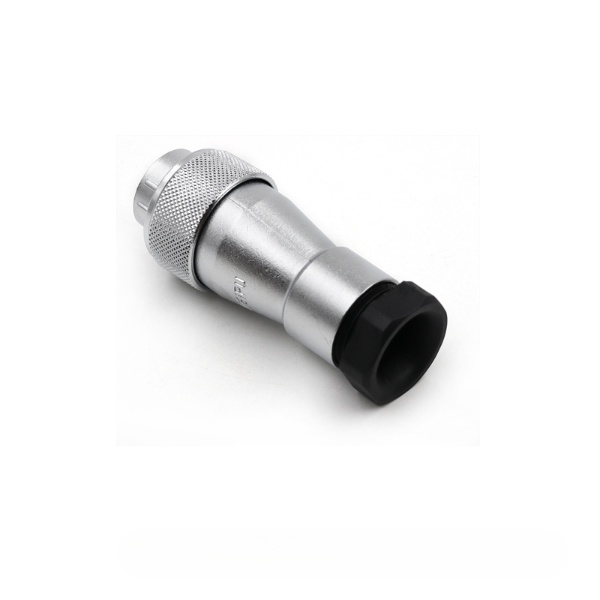

Elecbee Male Plug 7pin IP65 Plug with Straight plastic Clamping-nut WF20 TA Plug Waterproof Connector

SKU: EB-WF20J7TA
Favorites
Key Features

Features:

  • Model Number: WF20
  • Shell Material: Zinc alloy with chrome plating
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 20mm
  • Number of Contacts: 2/3/4/5/6/7/9/12/15Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Attribute
Value
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Chrome Plated
Number of Positions
7 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
10A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF20
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG
Shell Size
20
Insulation Color
Black
Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
P****a
Perfect replacement for my outdoor lighting setup. The IP65 rating and zinc alloy shell really keep moisture out, even after heavy rain.
K****n
Good solid connector. Soldering the 7 pins took some time, but the high-temp PPS insulator gives me confidence it won’t fail under heat.
D****d
Exactly as described. The threaded coupling on the WF20 ensures a tight seal, and the chrome-plated finish resists corrosion well.
R****g
Works fine, but soldering all 7 pins is tedious. Wish it came pre-wired. Still, the plastic clamping-nut holds cables securely.
M****o
Used this in an industrial project—durable build and excellent waterproofing. The straight nut design makes installation easy in tight spaces.
