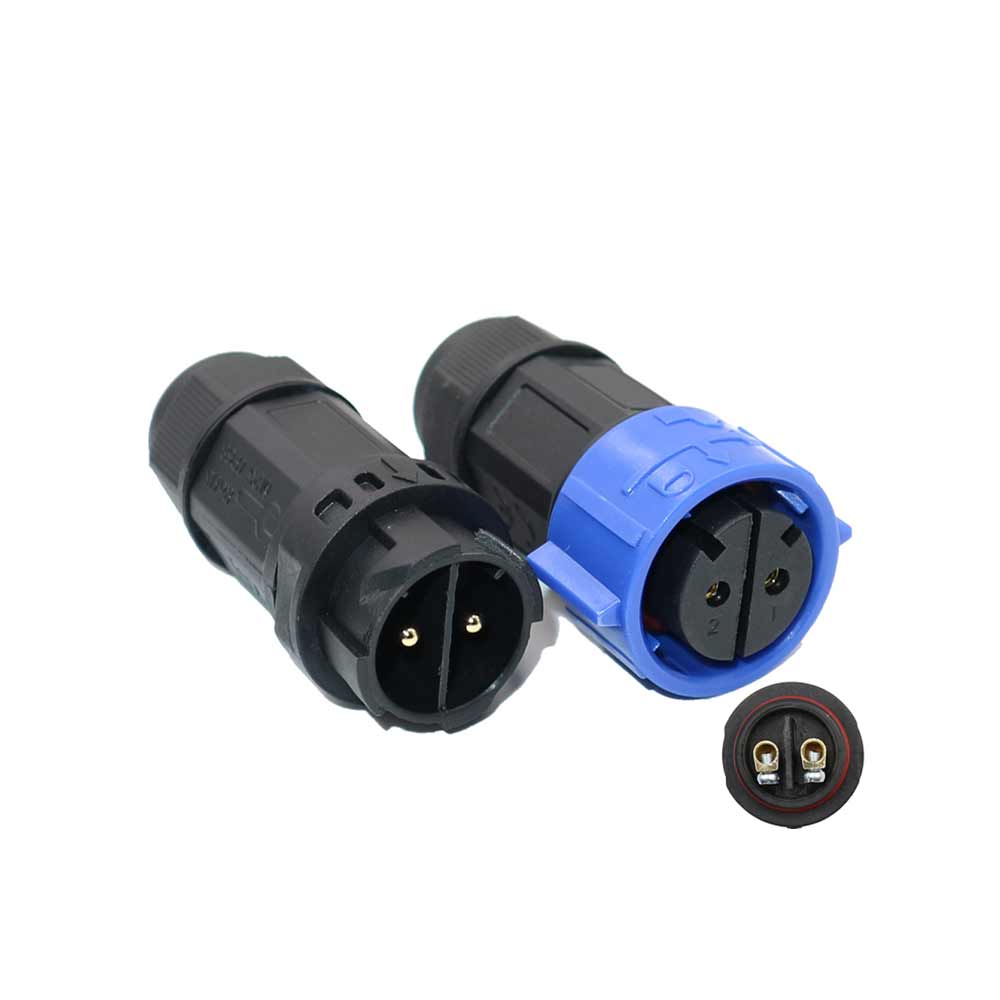

Elecbee M25 2-Pin Self-Locking Inline Waterproof Connector Screw Terminal Male Socket & Female Plug (one Pair) IP68 AC/DC Power Connector 600V 35A
SKU: EB-051-0004-H
Favorites
Key Features
- Locking Ring Options: Multiple waterproof locking rings are available (φ16.3mm、φ14.5mm、φ12.5mm、φ10.0mm、φ8.0mm、φ6.2mm). Please leave a note when ordering for your required size. If no specification is provided, the φ14.5mm：12-14.5mm locking ring will be shipped by default.
- Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in outdoor, marine, industrial, and harsh environments with excellent dust and water resistance.
- Secure Locking Design: M25 Waterproof Connector Designed with Threaded-Locking or Self-Locking and solder termination for reliable wire connection, providing excellent conductivity and stable performance.
- High-Power Capacity: Supports up to 60-600V and 3-35A, making it ideal for high-demand LED lighting, new energy equipment, industrial machinery, and power systems.
- Extreme Durability: Constructed with high-quality PA66 Nylon housing and gold-plated brass contacts for superior corrosion resistance, conductivity, and long service life.
Show More
Specifications
Number of Positions:
2 Pin3 Pin4 Pin5 PinIn-Stock
Qty.
1
Unit Price
$ 5.74
Ext. Price
$ 5.74
$ 5.74
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Screw Terminal
Contact Type
Male，Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+105℃
Ingress Protection
IP68
Rated Current
35A
Rated Voltage
600V
Features
Waterproof
Connector Series
M25
Color
Black, Blue
Fastening Type
Bayonet
Orientation
Straight
Shell Material
PVC
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA
Cable Diameter
12.5mm~14.5mm
Shell Size
25
