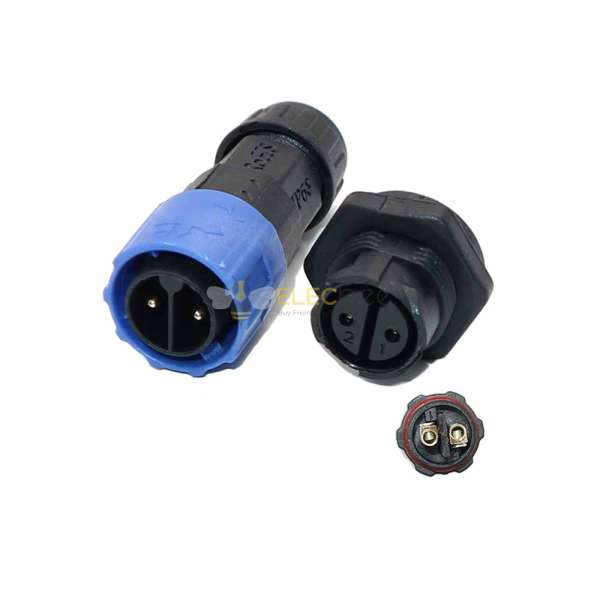

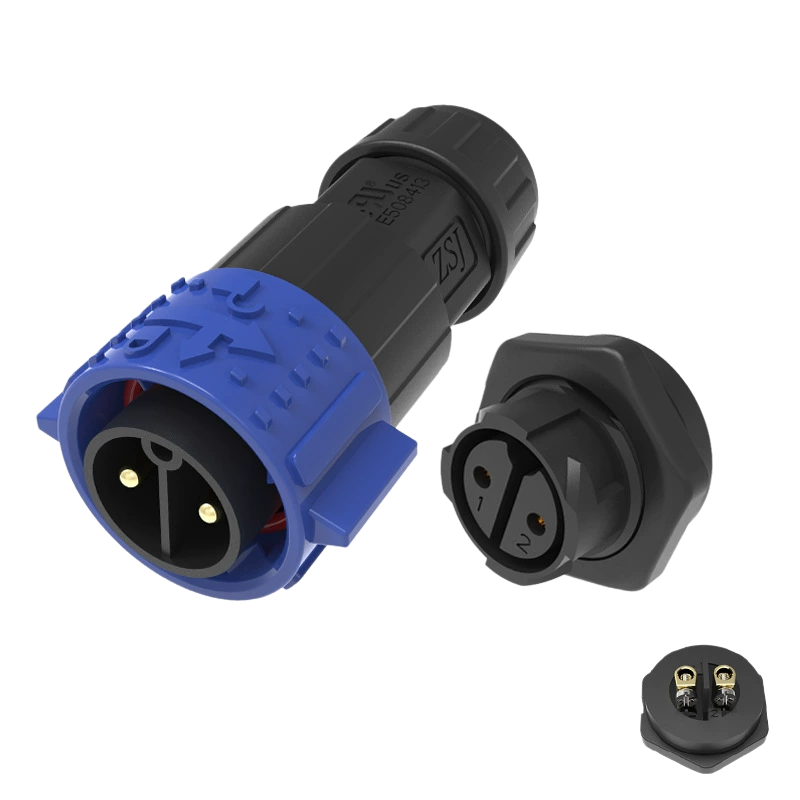

Elecbee M19 Quick-Lock Waterproof Connector, 2 Pin 20A 500V IP68 Front Panel Mount Aviation Plug, 20mm Cutout Solder Terminal Male & Female Set
SKU: EB-049-0043-H
Favorites
Key Features
- Locking Ring Options: Multiple waterproof locking rings are available (φ11.5mm、φ10.0mm、φ8.0mm、φ6.8mm、φ5.5mm). Please leave a note when ordering for your required size. If no specification is provided, the φ10.0mm：8.5-10.0mm locking ring will be shipped by default.
- Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in outdoor, marine, industrial, and harsh environments with excellent dust and water resistance.
- Secure Locking Design: M19 Waterproof Connector Designed with Self-Locking and screw terminal connection design for quick field installation without soldering tools, providing excellent conductivity and stable performance.
- High-Power Capacity: Supports up to 60-500V and 5-20A, making it ideal for high-demand LED lighting, new energy equipment, industrial machinery, and power systems.
- Extreme Durability: Constructed with high-quality PA66 Nylon housing and gold-plated brass contacts for superior corrosion resistance, conductivity, and long service life.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Front Side Nut
Termination
Screw Terminal
Contact Type
Male，Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+105℃
Ingress Protection
IP68
Rated Current
20A
Rated Voltage
500V
Connector Series
M19
Color
Black, Blue
Fastening Type
Bayonet
Orientation
Straight
Shell Material
PVC
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA
Cable Diameter
8.5mm~10mm
Shell Size
19
Description
The Elecbee M19 2-Pin Front-Panel Mount Connector is a heavy-duty AC/DC power interface built for demanding industrial environments. Utilizing a self-locking snap mechanism, it provides an instant IP68-rated seal that protects against high-pressure water jets and fine dust. This front-mount version is optimized for 20mm panel cutouts, allowing for efficient installation from the exterior of the machine chassis.
Designed for long-term durability, the precision solder terminals offer a superior electrical connection compared to screw-type alternatives, making them the gold standard for high-vibration applications like motor controllers and outdoor power systems. With a 20A current rating and 500V capacity, this set ensures safe and stable power delivery for plant lighting, automation, and electrical cabinets.
- Mounting: Front-Panel Fixed (20mm Installation Hole)
- Locking Style: Snap-In / Self-Locking Quick Release
- Termination Method: High-Stability Solder Terminals
- Electrical Rating: 2-Pin, 20A Max Current, 500V Rating
- Cable Range: Supports φ5.3mm up to φ11.5mm via modular glands
