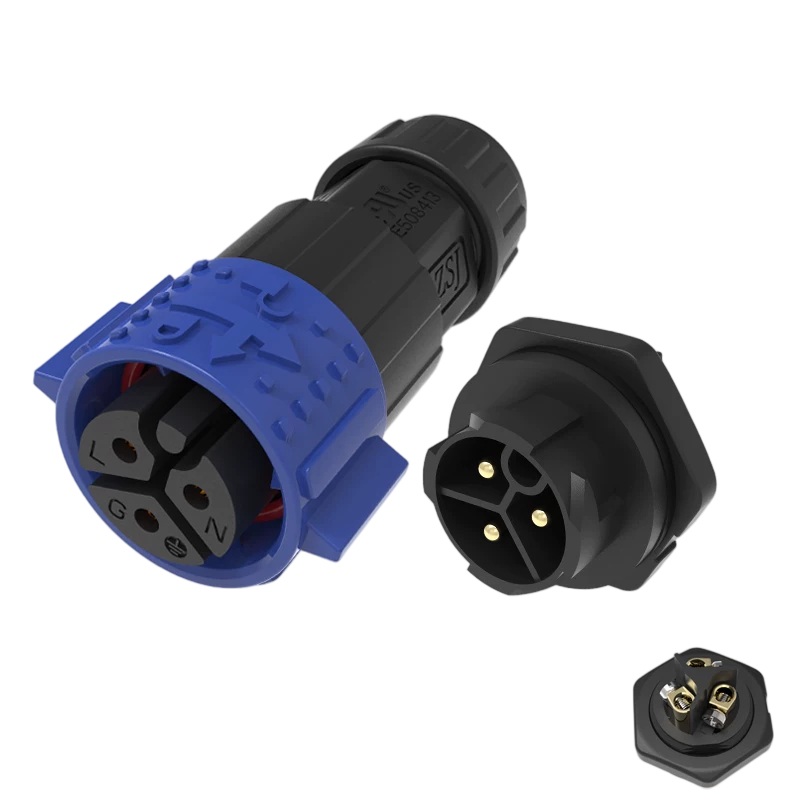

Elecbee M19 Quick-Lock Waterproof Connector, 3 Pin 15A 500V IP68 Rear Panel Mount Aviation Plug, 20mm Cutout Solderless Screw Terminal Set
SKU: EB-049-0032-H
Favorites
Key Features
Instant Self-Locking Snap: Features a high-speed "push-to-click" mechanism for a secure, vibration-proof connection without the need for threading.
Solderless Screw Terminals: Internal screw-down clamps allow for rapid wire termination using only a screwdriver—eliminating the need for soldering tools.
Standard 20mm Panel Cutout: Engineered for a 20mm mounting hole, providing a perfect fit for standard industrial enclosures and power distribution boxes.
Safety-Focused 3-Pin Design: Supports 15A and 500V, providing a dedicated path for Ground/Earth wiring essential for industrial electrical safety.
Certified IP68 Protection: High-performance silicone gaskets ensure a total waterproof and dustproof seal, ideal for harsh outdoor or wash-down environments.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Panel Mount
Termination
Screw Terminal
Contact Type
Male，Female Pin
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+105℃
Shielding
Unshielded
Ingress Protection
IP68
Rated Current
20A
Rated Voltage
500V
Connector Series
M19
Color
Black, Blue
Fastening Type
Bayonet
Orientation
Straight
Shell Material
PVC
Packing
Multi-pack Packaging
Contact Material
Copper
Contact Finish
Gold Plated
Insulating Materials
PA
Shell Size
19
Insulation Color
Black
Description
The Elecbee M19 3-Pin Quick-Lock Connector is the professional choice for high-efficiency industrial assembly. Designed with a self-locking snap mechanism, it provides an audible and tactile "click" to confirm a secure IP68-rated seal in seconds. Specifically tailored for 20mm panel cutouts, this rear-mount socket offers a flush, tamper-resistant exterior for VFD cabinets and power control systems.
Maintenance and onsite deployment are simplified by the integrated solderless screw terminals. This feature allows technicians to perform secure wire terminations without specialized equipment. Rated for 15A and 500V, this 3-pole set is perfectly suited for outdoor LED lighting, motor controllers, and any application requiring a reliable 3-wire power interface with integrated grounding.
- Mounting: Rear-Panel Fixed (20mm Installation Hole)
- Locking Style: Snap-In / Quick-Release Self-Locking
- Terminal Method: Screw-Down (Solder-Free)
- Electrical Specs: 3 Pin, 15A Max Current, 500V Rating
- Cable Range: Supports φ5.3mm up to φ11.5mm via modular glands
