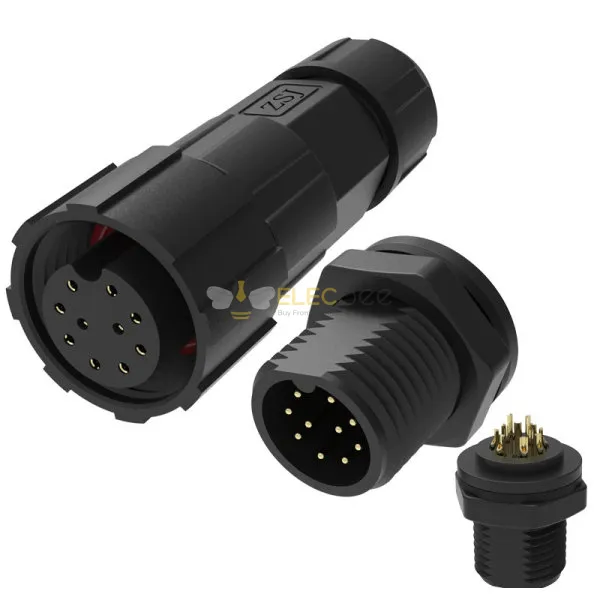

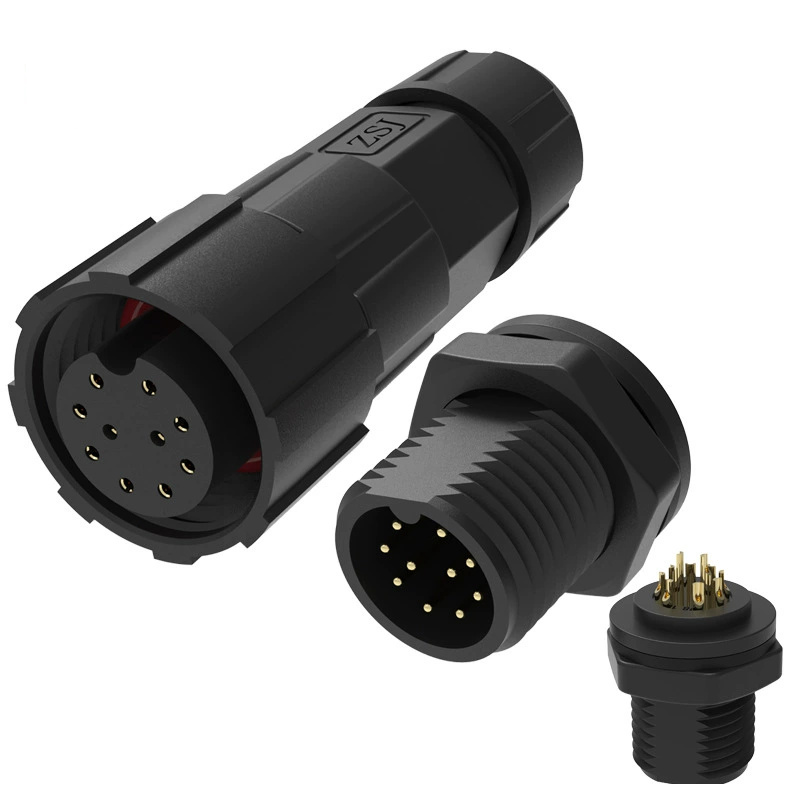

Elecbee M16 10-Pin Threaded-Locking Front Panel Mount Waterproof Connector Solder Cup Male Plug & Female Socket (one Pair) IP68 AC/DC Power Connector 60V 5A
SKU: EB-047-0052-H
Favorites
Key Features
- Locking Ring Options: Multiple waterproof locking rings are available (φ8.8mm：7.0-8.8mm、φ7.0mm：5.5-7.0mm、φ5.5mm：3.0-5.5mm). Please leave a note when ordering for your required size. If no specification is provided, the φ7.0mm：5.5-7.0mm locking ring will be shipped by default.
- Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in outdoor, marine, industrial, and harsh environments with excellent dust and water resistance.
- Secure Locking Design: M16 Front Panel Mount Waterproof Connector Designed with Threaded-Locking and solder termination for reliable wire connection, providing excellent conductivity and stable performance.
- High-Power Capacity: Supports up to 60-500V and 5-15A, making it ideal for high-demand LED lighting, new energy equipment, industrial machinery, and power systems.
- Extreme Durability: Constructed with high-quality PA66 Nylon housing and gold-plated brass contacts for superior corrosion resistance, conductivity, and long service life.
Show More
In-Stock
Qty.
1
Unit Price
$ 5.88
Ext. Price
$ 5.88
$ 5.88
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Front Side Nut
Termination
Solder Cup
Contact Type
Male，Female Pin
Number of Positions
10 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+105℃
Ingress Protection
IP68
Rated Current
5A
Rated Voltage
60V
Features
Waterproof
Connector Series
M16
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PVC
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA
Cable Diameter
5.5mm~7.0mm
Shell Size
16
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4 /5
All reviews come from verified purchasers
5
60%
4
20%
3
20%
2
0%
1
0%
F****a
Perfect for my outdoor LED setup. The IP68 rating really holds up—even after heavy rain, no moisture inside. Soldering the 10-pin was smooth thanks to the gold-plated copper contacts.
N****d
Solid build and great fit for tight spaces. The nylon housing feels durable and handles temperature swings well. Wish it came in a screw-type for 10-pin, but soldering worked fine.
N****R
Used this on a marine lighting project—completely waterproof and corrosion-resistant. The key positioning prevented wrong connections. Exactly what I needed for a reliable dock light system.
N****n
Good connector overall. Soldering took time with 10 pins, but conductivity is excellent. Just be careful—the PVC body is sturdy but can crack if overtightened during installation.
R****r
Love the high-temp tolerance. Installed these in an industrial shed where temps vary wildly—no issues at all. The gold plating ensures low resistance, which is critical for our LED arrays.
