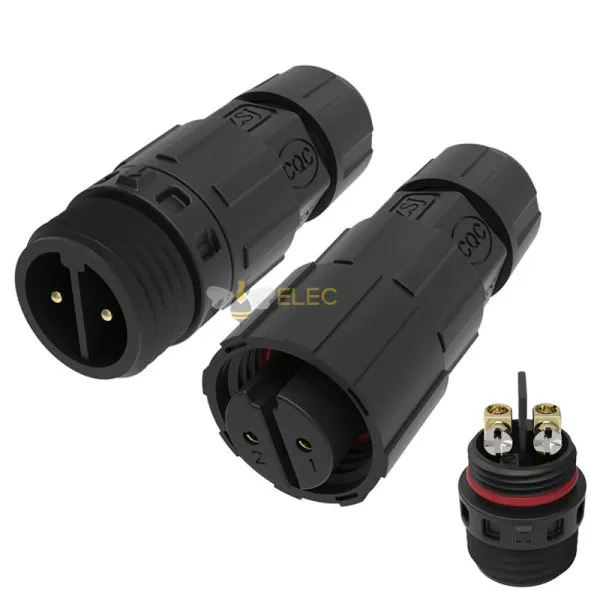

Elecbee M16 2-Pin Threaded-Locking Inline Waterproof Connector Screw Terminal Male Socket & Female Plug (one Pair) IP68 AC/DC Power Connector 500V 15A
SKU: EB-047-0056-H
Favorites
Key Features
- Locking Ring Options: Multiple waterproof locking rings are available (φ8.8mm：7.0-8.8mm、φ7.0mm：5.5-7.0mm、φ5.5mm：3.0-5.5mm). Please leave a note when ordering for your required size. If no specification is provided, the φ7.0mm：5.5-7.0mm locking ring will be shipped by default.
- Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in outdoor, marine, industrial, and harsh environments with excellent dust and water resistance.
- Secure Locking Design: M16 Inline Waterproof Connector Designed with Threaded-Locking and screw terminal connection design for quick field installation without soldering tools, providing excellent conductivity and stable performance.
- High-Power Capacity: Supports up to 60-500V and 5-15A, making it ideal for high-demand LED lighting, new energy equipment, industrial machinery, and power systems.
- Extreme Durability: Constructed with high-quality PA66 Nylon housing and gold-plated brass contacts for superior corrosion resistance, conductivity, and long service life.
Show More
In-Stock
Qty.
1
Unit Price
$ 3.50
Ext. Price
$ 3.50
$ 3.50
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Screw Terminal
Contact Type
Male，Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+105℃
Ingress Protection
IP68
Rated Current
15A
Rated Voltage
500V
Features
Waterproof
Connector Series
M16
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PVC
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA
Cable Diameter
7mm~8.8mm
Shell Size
16
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4 /5
All reviews come from verified purchasers
5
60%
4
20%
3
20%
2
0%
1
0%
M****n
Perfect for my outdoor LED setup. The IP68 rating really holds up in rain, and the screw lock keeps the connection solid. Easy to wire with the gold-plated contacts.
M****h
Good build quality and fits perfectly in our marine lighting project. The nylon housing feels durable, and it handles temperature swings well. Soldering pins took some time but worth it.
S****s
Used this M16 3-pin connector for a street light installation. Waterproof seal is excellent, and the key positioning prevents wrong connections. Highly recommend for outdoor use.
h****g
Works as described, but the cable strain relief could be better. Good electrical contact and solid locking mechanism. Needed to double-insulate the joint for harsh conditions.
S****e
Exactly what I needed for connecting LED drivers on a construction site. Handles dust and moisture flawlessly. Gold-plated copper contacts show no corrosion so far.
