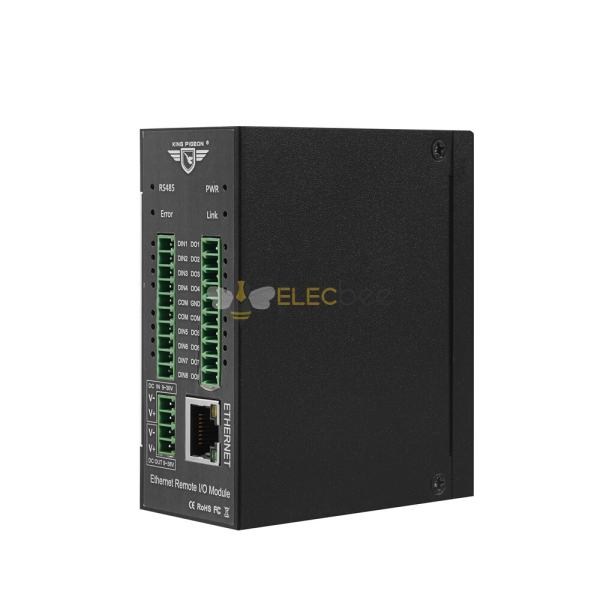

Elecbee M140T 8DI+8DO+1RS485+1Rj45 Modbus Switching Relay to Ethernet Acquisition Module Industrial Computer Room Equipment Data Acquisition to Ethernet

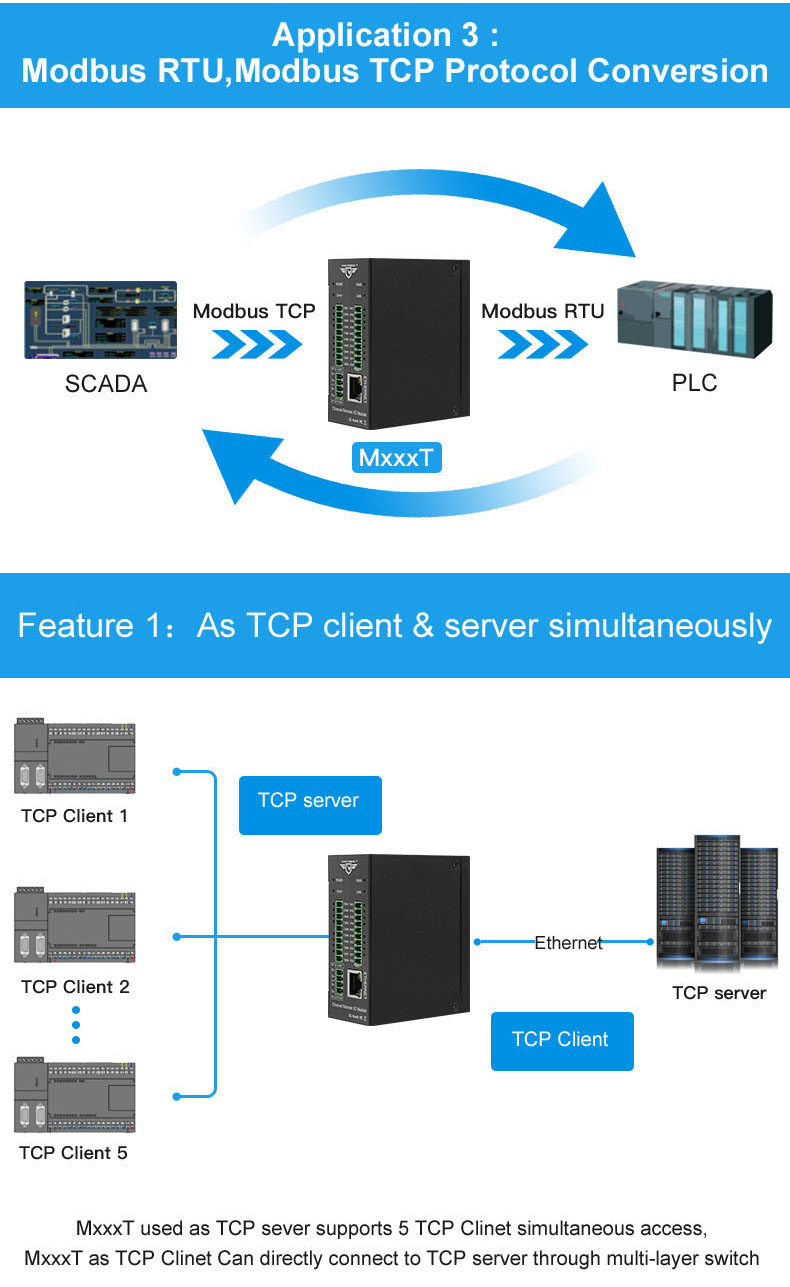

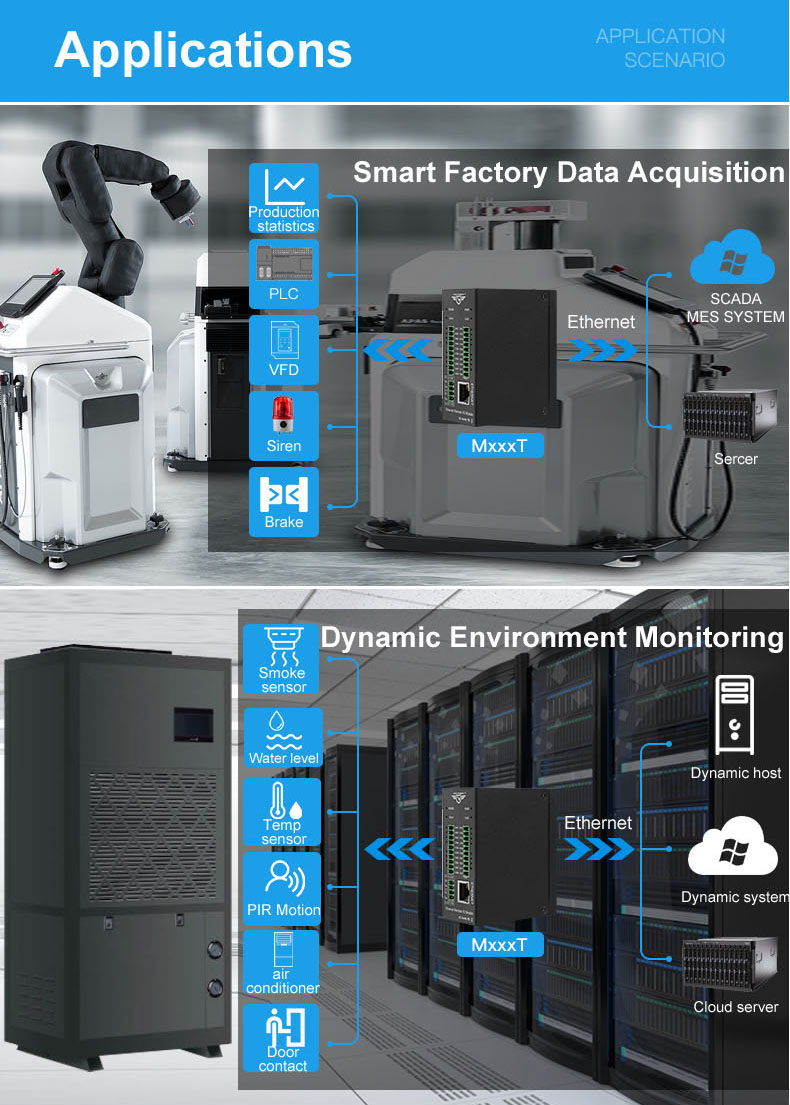

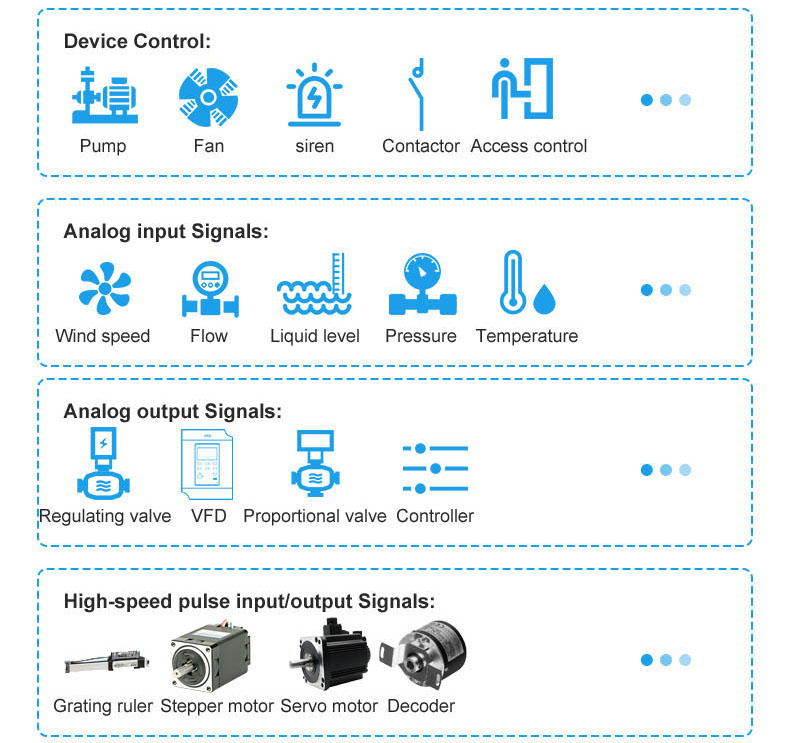

The M140T Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded into SCADA, OPC server, and other automation systems. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

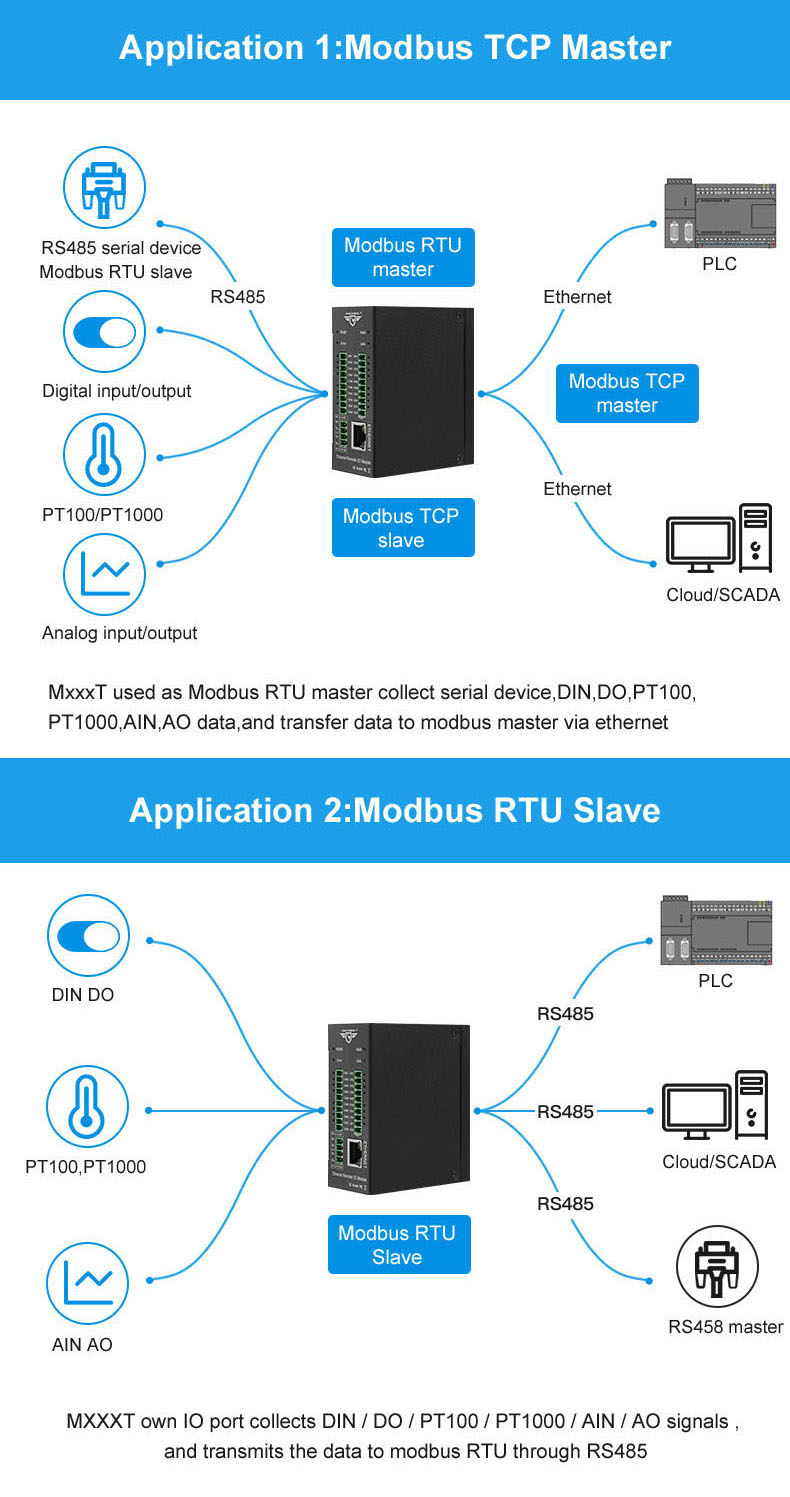

The M140T Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.

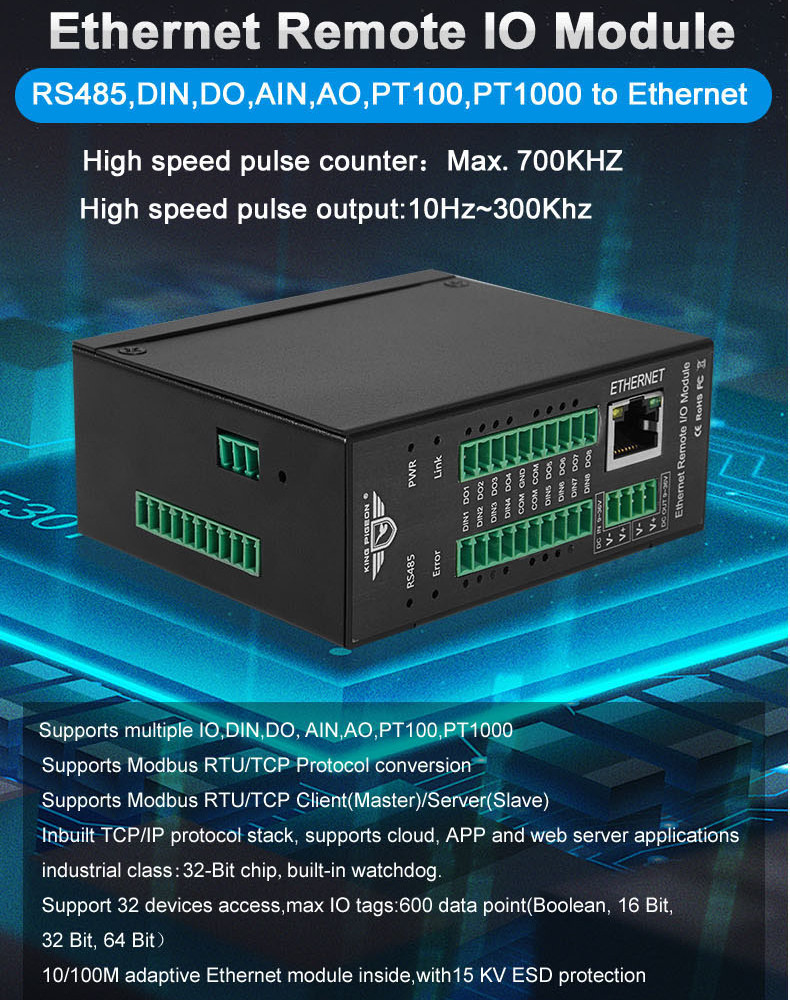

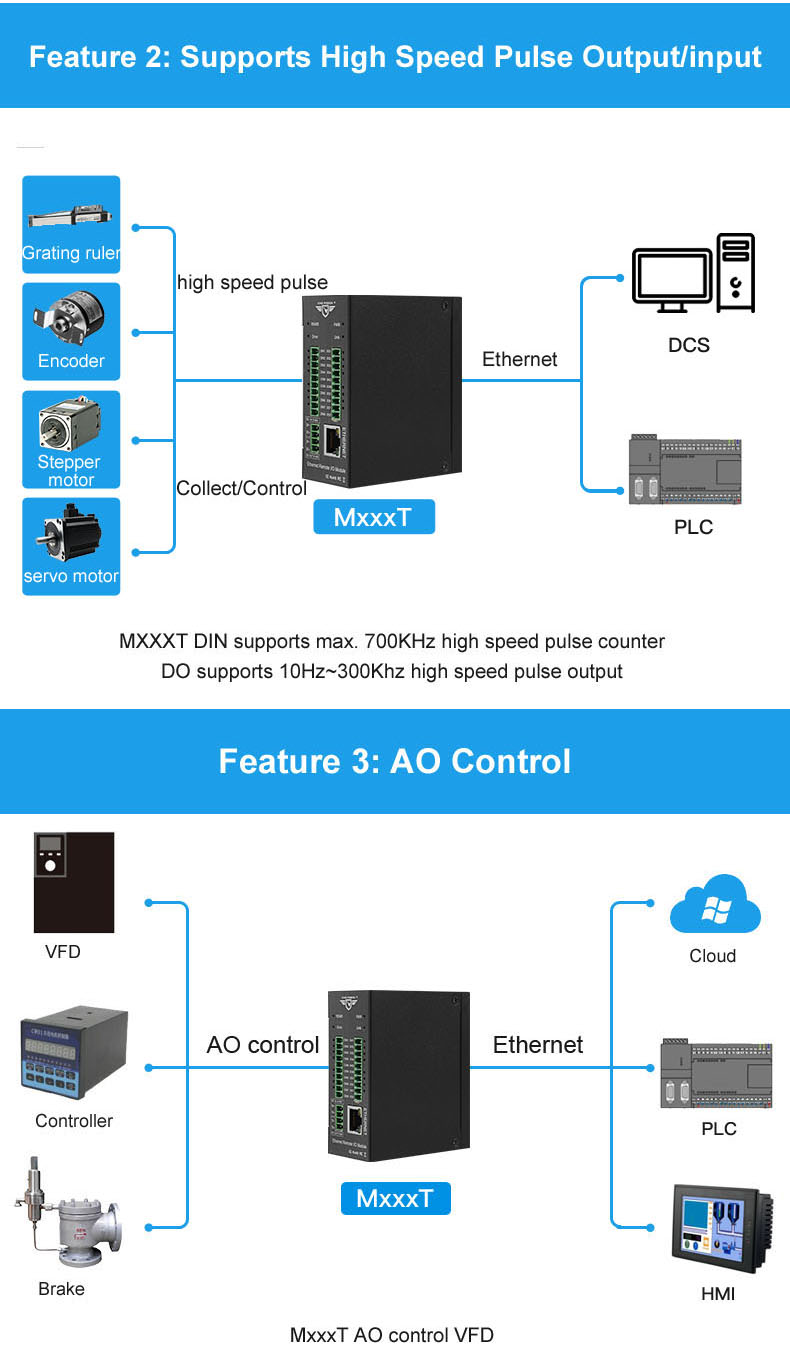

The M140TEthernet Remote I/O module provides 4/8 optical-isolated digital inputs, supports Max. 700Khz high speed pulse counter, 4/8 digital outputs, supports 10Hz~300Khz high speed pulse output or relay outputs. All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable.

1. Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;

2. Wide range power supply 12 ~ 36VDC with over voltage and phase-reversal protection;

3. Management and configuration via LAN connection configuration software for easy operation and maintenance;

4. Integrated 10/100M adaptive Ethernet module, supports Modbus TCP,MQTT protocol;

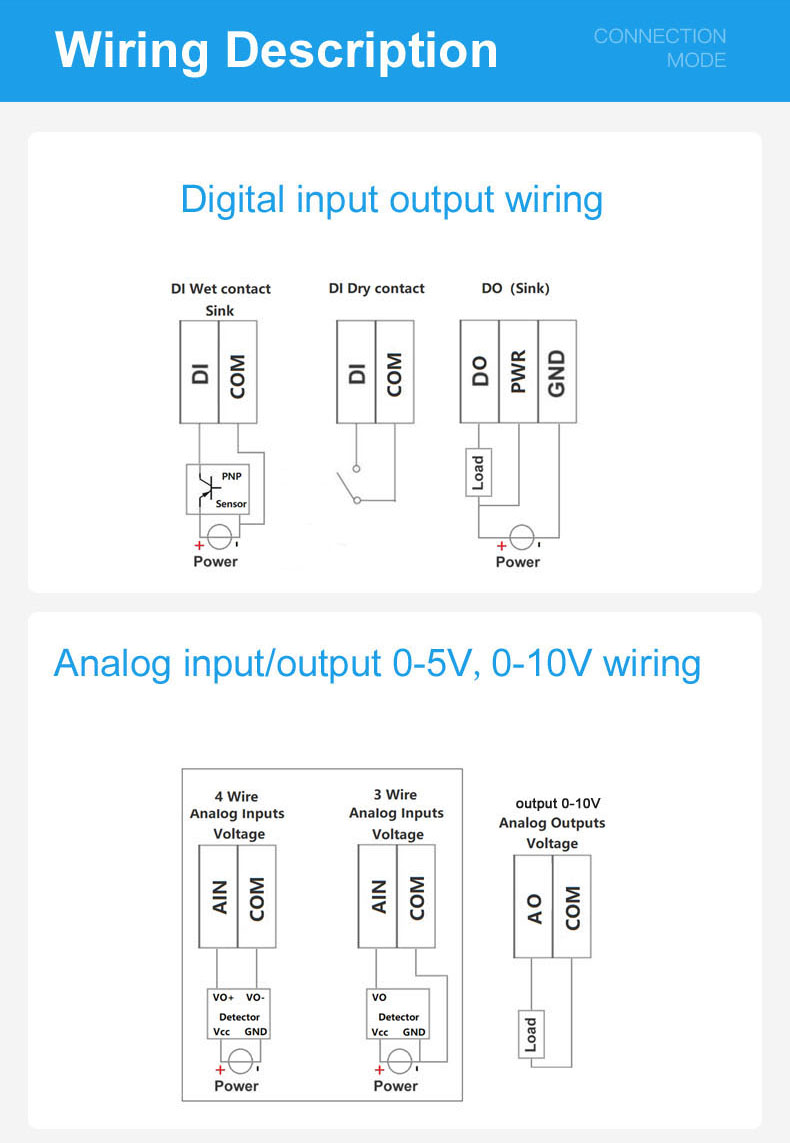

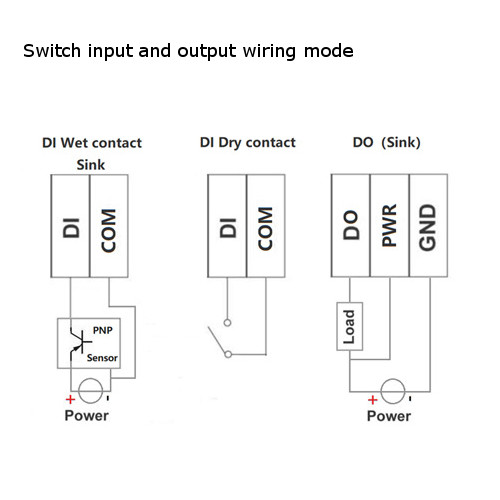

5. 4/8 optical isolated digital input, supports Max. 700KHz high speed pulse counter;

6. 4/8 digital output or relay output, supports 10Hz~300KHz high speed pulse output;

7. High sampling frequency and special filtering strategy to ensure reliability;

8. 1 RS485 Serial port, supports Modbus RTU Master or slave, can extend I/O modules;

9. Supports register mapping function and extend I/O inquiry strategy;

10. Provides 1 channel 12~36VDC power source output for external device, saving wiring cost;

11. LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

12. Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;

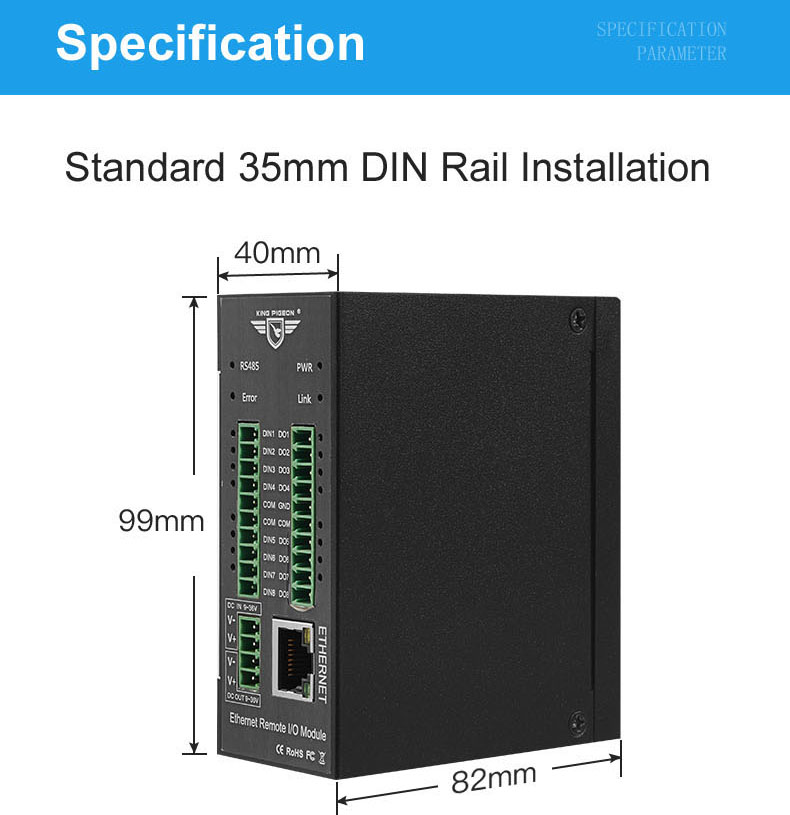

13. Small size, L105 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.

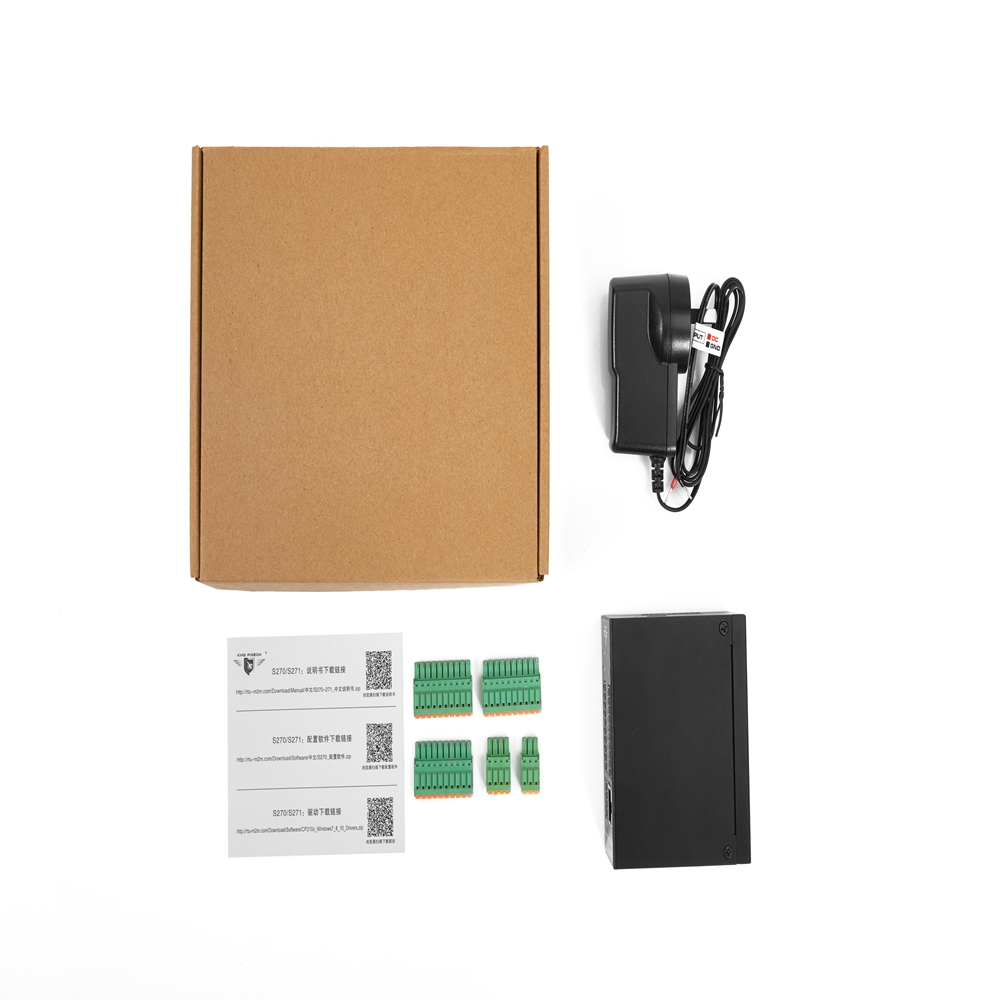

1 x M140T Ethernet Module
