Elecbee DC 12V 10A Relay 1CH Channel Wireless RF Remote Control Switch With 2 Transmitters

SKU: EB0042880

Favorites

Key Features

Easy to install and easy to carry
With a slidable cover on the remote control
With a hook on the remote control
Use Learning coding, stable and reliable
The wireless signal can pass through walls, floors and doors
You can turn on or turn off the receiver with transmitter (remote control) from any place within a reliable distance
Operating Voltage: DC12V
Maximum Load: 10A
Operating Frequency: 433MHZ (in set)
Receiver Sensitivity: -100dBm
Encoding Type: learning code

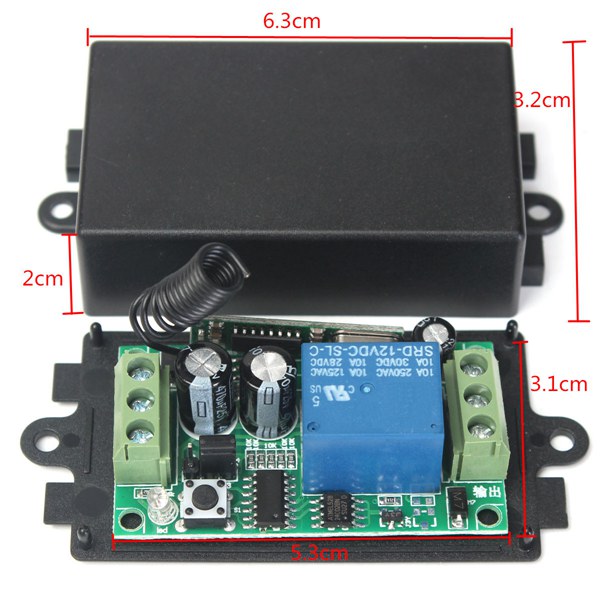

Board Size: Approx. 5.3x3.1cm/ 2.09x1.22"

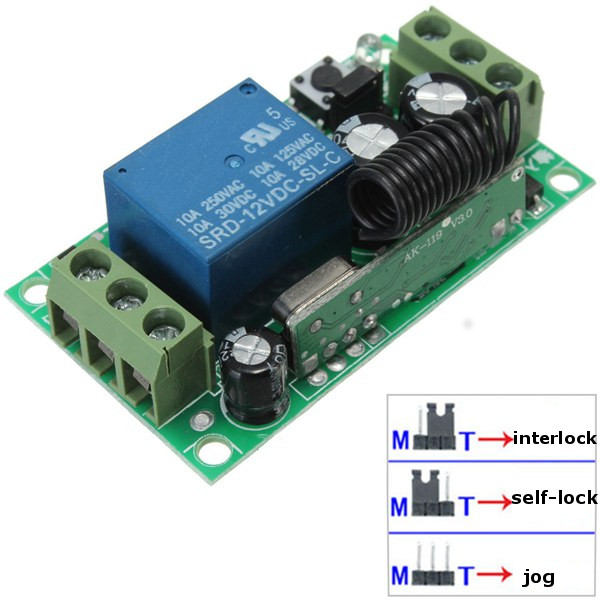

There are three kinds of jog, self-locking and interlocking in the output mode. (switch by the jumper cap)

xa0

output method:

xa0

1. Signal self-locking - Jump cap is inserted in 1-2 position---Function literal translation: that is, press and hold the remote control button to work, release to stop! Or press and hold to stop, release to work, depending on the wiring situation!

2. Signal interlock - Jump cap inserted in 2-3 position --- Function literal translation: that is, the function is completed on one key, press the remote control button in turn, the first one is open, the second is off, the third is open, the four times for off and cycle!

3. Signal jog - Pin 1-2-3 left empty - Function literal translation: Press the remote control A button to open, B button to off or A button to off, B button to open, depending on the learning situation!

xa0

Remote control code learning method:

xa0

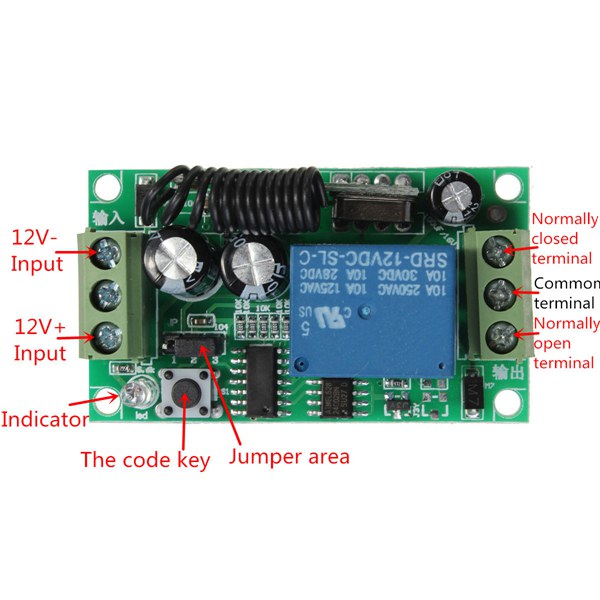

There is an S1 tact switch on the control board. This button is used to learn the code and clear code.

For the first time, please use the code first. Clear code → pair code → normal use

1: Clear code: After power-on, press the learning button on the receiver until the indicator light is turned from on to off and then on. At this time, the clear code is successful!

2: Pair code: After power-on, press the learning button of the receiving board until the indicator light is off, then release the button and then press the button of the remote controller to learn. After the receiving board indicator flashes 5 times, it will be off. means pair success.

There are three kinds of jog, self-locking and interlocking in the output mode. (switch by the jumper cap)

xa0

output method:

xa0

Remote control code learning method:

xa0

There is an S1 tact switch on the control board. This button is used to learn the code and clear code.

For the first time, please use the code first. Clear code → pair code → normal use

1: Clear code: After power-on, press the learning button on the receiver until the indicator light is turned from on to off and then on. At this time, the clear code is successful!

Show Less

Specifications

Show Similar Products >

Attribute

Value

Model

DESCRIPTIONIMAGE0

Show Similar Products >

Description

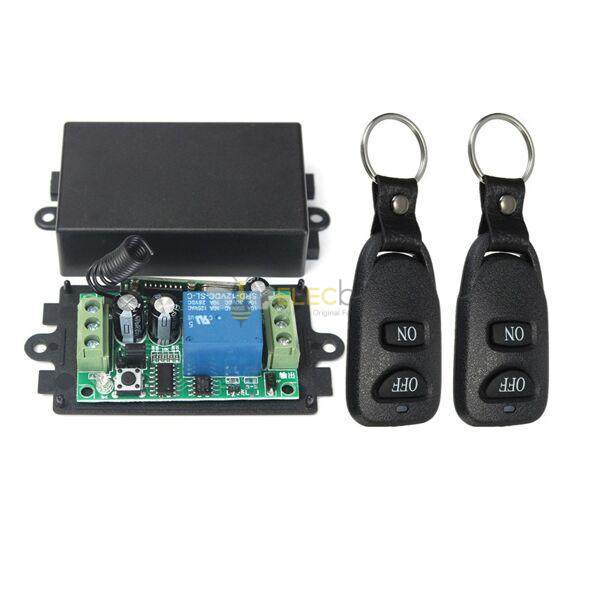

1 x Learning Code Receiver

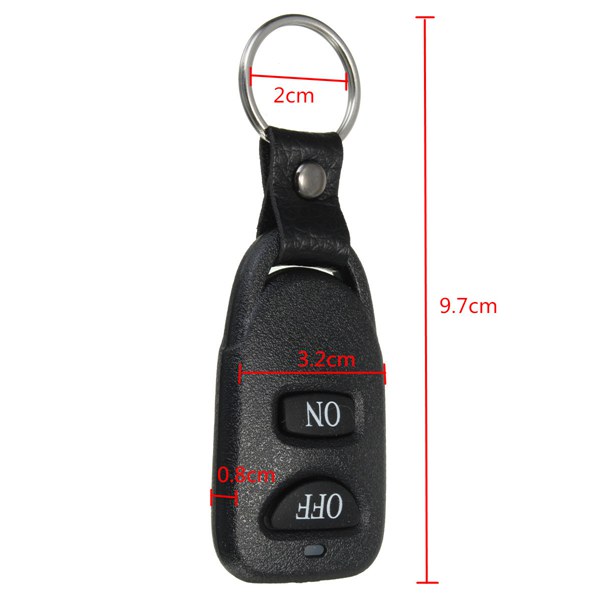

2 x Remote Control

DC-12V-10A-Relay-1CH-Channel-Wireless-RF-Remote-Control-Switch-With-2-Transmitters-1138436
