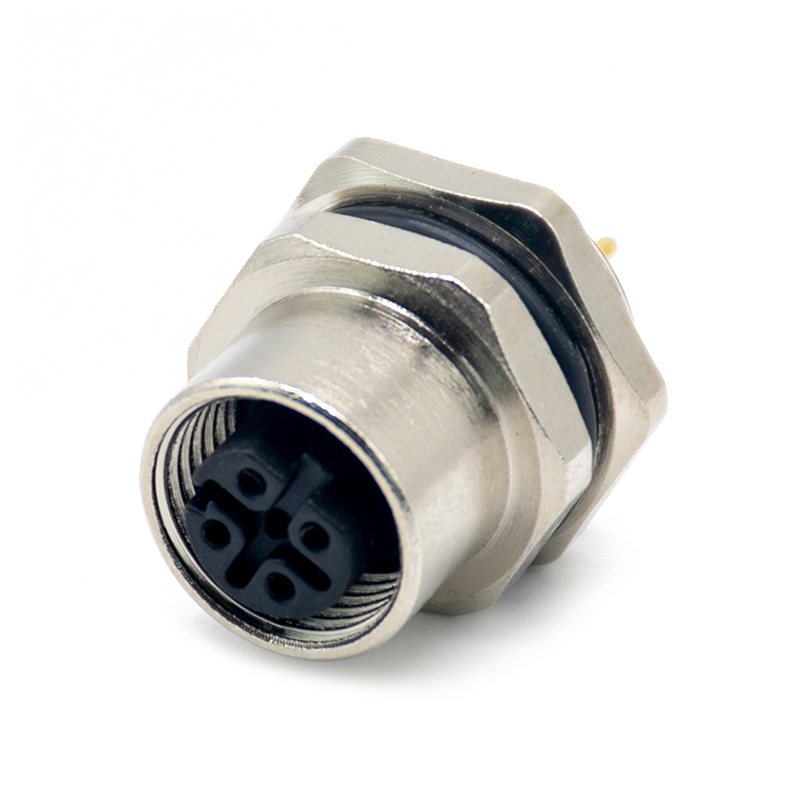

Elecbee M12 Panel Receptacles D Code Straight 4pin Female Non-shield connector
SKU: EB-400-2278
Favorites
Key Features
Features:
- M12 Panel Receptacles,D Coded,180°,4 Pin,Female,PCB mount,Solder type,Waterproof
- thread locking mechanism, anti vibration locking design，12mm thread joint;
- Easy quick connect and disconnect coupling;xa0
- High Quality with 30 days 100% Money back;xa0
- From the OEM Original Factory, same quality with much better price.xa0
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
4 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated）
Rated Current
4A
Rated Voltage
250V
Connector Series
M12
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
D Code
Wire Gauge
22AWG
Description
M12 Panel Receptacles
IP67/68 Weatherproof
|
Plug & Play Connections
|
Rugged Metal Housing
M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
DIRECT DEAL
EASY ASSEMBLY
QUALITY ASSURANCE
MULTI CORE OPTIONAL
| M12 Panel Receptacles | |
| Coding | A / B / C / D / K / L / X / S / t |
| Number of Positions | 2 / 3 / 4 / 5 / 8 / 12 / 17 |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Mounting Type | PCB Mount / Panel Mount / Cable |
| Termination Style | Solder Type / PCB Mount |
| Mounting Feature | Front Mount / Back Mount / 4 Hole Flange |
PRODUCT DESCRIPTION
1. Choose High-quality Materials
- All metal material brass material, can play a 360-degree shielding effect
- Strong conductivity,wear resistance,oxidation resistance,in line width protection standards
3. Snap Tight and Waterproof
- Strong fixing performance,with waterproofring
- Protection against water and resistance
2. Long Service Life
- The push-pull self-locking device is easy to install
- The interface is durable and not deformed
- Durable and corrosion-resistant
- Waterproof and moisture-proof
APPLICATION
Packaging, Labeling & Logistic
Factory automation and fieldbus module
