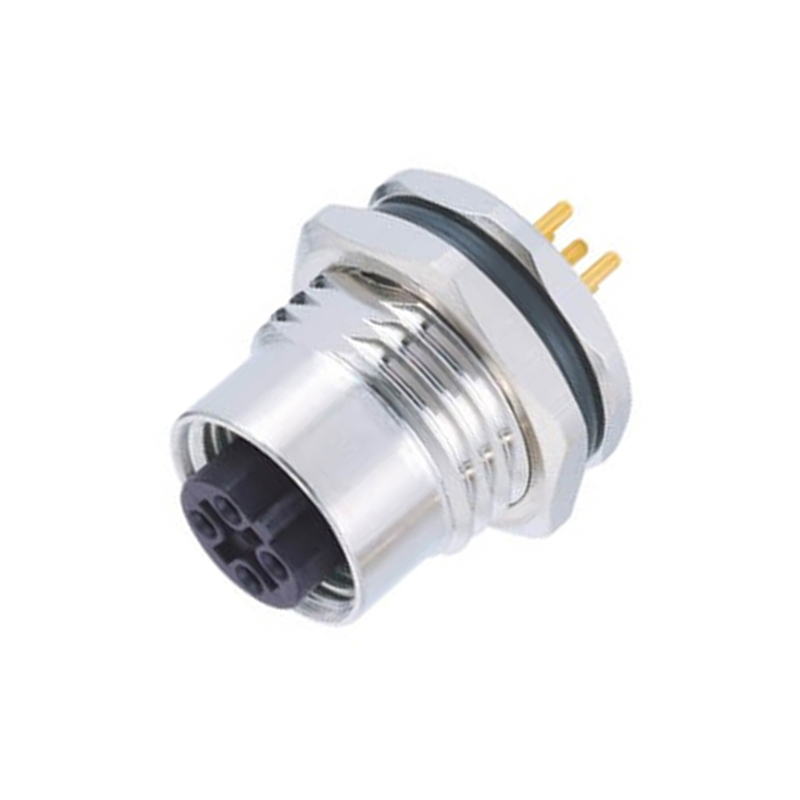

Elecbee M12 Panel Receptacles B Code Straight 5pin Female Non-shield connector
SKU: EB-400-2123
Favorites
Key Features
Features:
- M12,Panel Receptacles,B Code 5Pin,Female,Straight,Front Mount,For PCB,Waterproof
- thread locking mechanism, anti vibration locking design，12mm thread joint;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Front Side Nut
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
5 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated）
Rated Current
4A
Rated Voltage
60V
Connector Series
M12
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
B Code
Wire Gauge
22AWG
