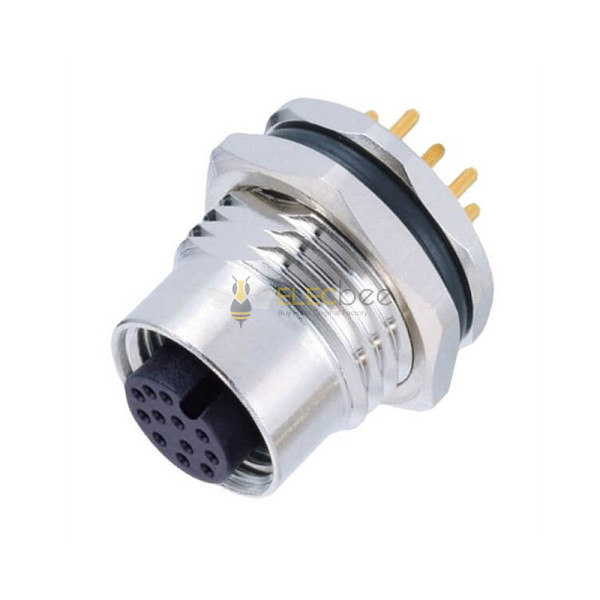

M12 Panel Receptacles A Code Straight 12pin Female Non-shield connector

Description

M12 Panel Receptacles

IP67/68 Weatherproof

Plug & Play Connections

Rugged Metal Housing

M12 Panel Receptacles

M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.

DIRECT DEAL

EASY ASSEMBLY

QUALITY ASSURANCE

MULTI CORE OPTIONAL

M12 Panel Receptacles
Coding	A / B / C / D / K / L / X / S / t
Number of Positions	2 / 3 / 4 / 5 / 8 / 12 / 17
Gender	Male / Female
Orientation	Straight / Right Angle
Mounting Type	PCB Mount / Panel Mount / Cable
Termination Style	Solder Type / PCB Mount
Mounting Feature	Front Mount / Back Mount / 4 Hole Flange

PRODUCT DESCRIPTION

1. Choose High-quality Materials

All metal material brass material, can play a 360-degree shielding effect
Strong conductivity, wear resistance, oxidation resistance, in line width protection standards

3. Snap Tight and Waterproof

Strong fixing performance, with waterproof ring
Protection against water and resistance

2. Long Service Life

The push-pull self-locking device is easy to install
The interface is durable and not deformed
Durable and corrosion-resistant
Waterproof and moisture-proof

APPLICATION

Miniature sensors

Industrial camera

Electrical car

Packaging, Labeling & Logistic

Factory automation and fieldbus module
