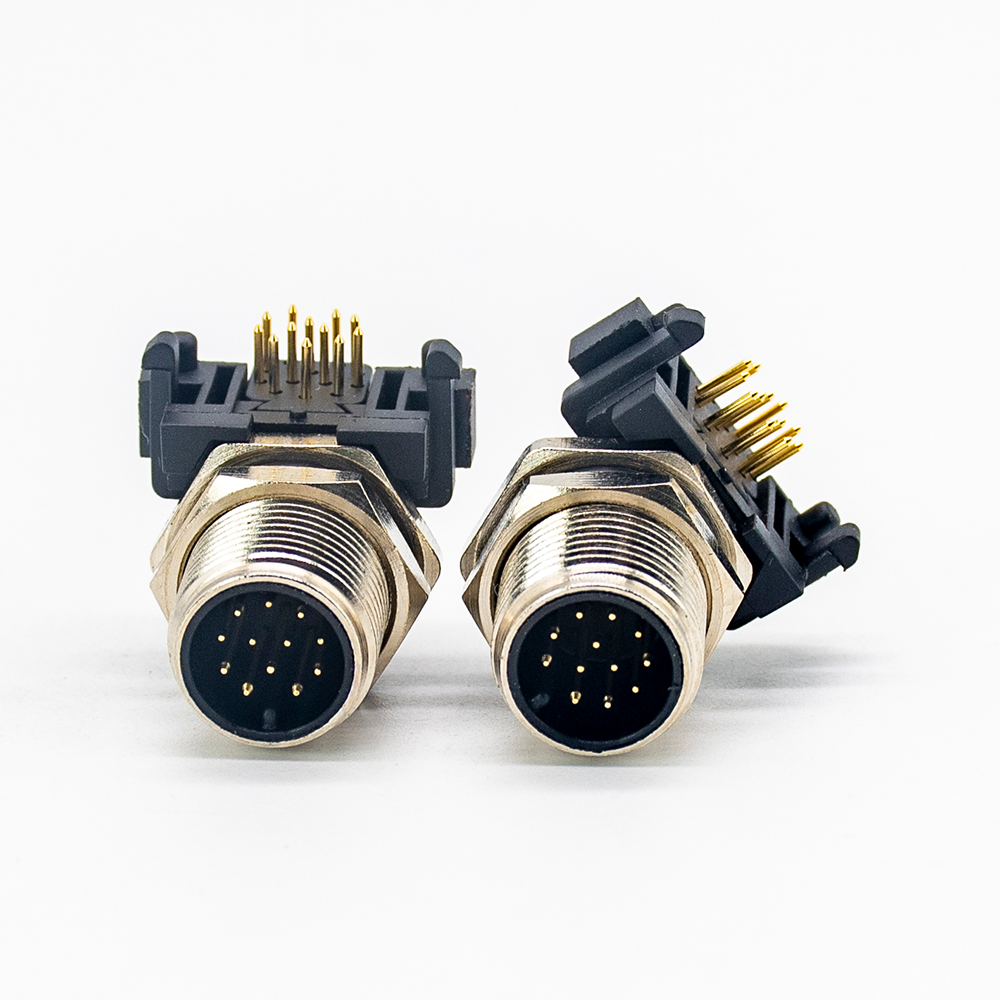

Elecbee M12 Panel Receptacles A Code Right Angle 12pin Male Non-shield connector
SKU: EB-400-8021
Favorites
Key Features
Features:
- M12 Panel Receptacles, A Code,12 Pin,Male,Right Angle,Through Hole,Blukhead,Panel Mount
- thread locking mechanism, anti vibration locking design，12mm thread joint;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Show More
Datasheet
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
12 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated）
Rated Current
1.5A
Rated Voltage
30V
Connector Series
M12
Color
Silver
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
26AWG
