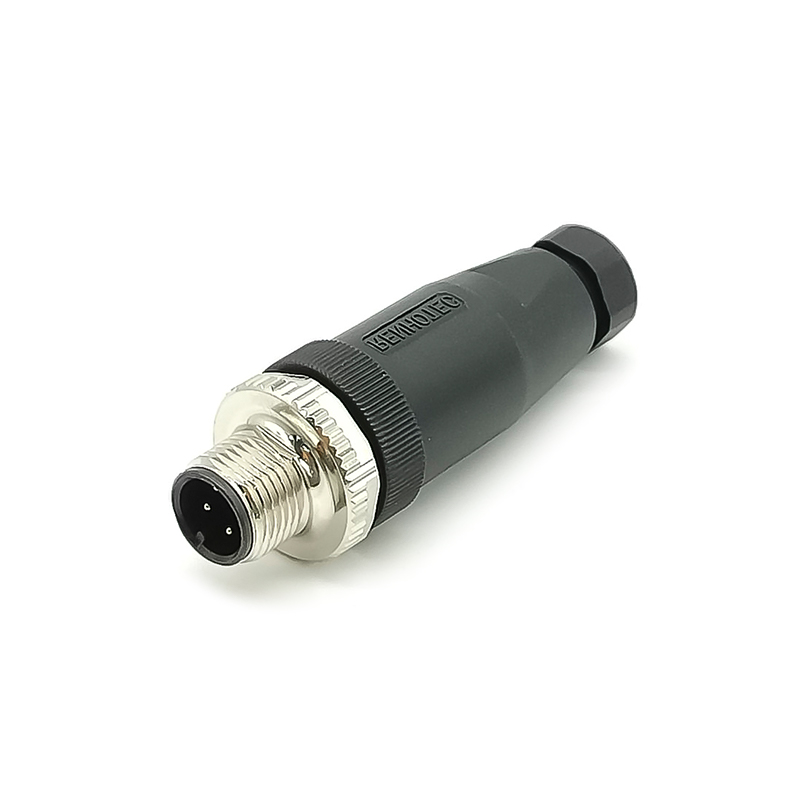

Elecbee M12 Field Wireable Connector A Code Straight 4pin Male Non-shield connector
SKU: EB-400-2017
Favorites
Key Features
Features:
- M12,A Code,Field Wireable,4pin, Male,Straight,Screw-Joint,Non-Shield
- thread locking mechanism, anti vibration locking design，12mm thread joint;
Easy quick connect and disconnect coupling; - High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality withmuch better price.
Show More
Out-of-Stock
Qty.
1
Unit Price
$ 6.67
Ext. Price
$ 6.67
$ 6.67
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Screw Terminal
Contact Type
Male Pin
Number of Positions
4 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67 (Mated)
Rated Current
4A
Rated Voltage
250V
Connector Series
M12
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
22AWG
