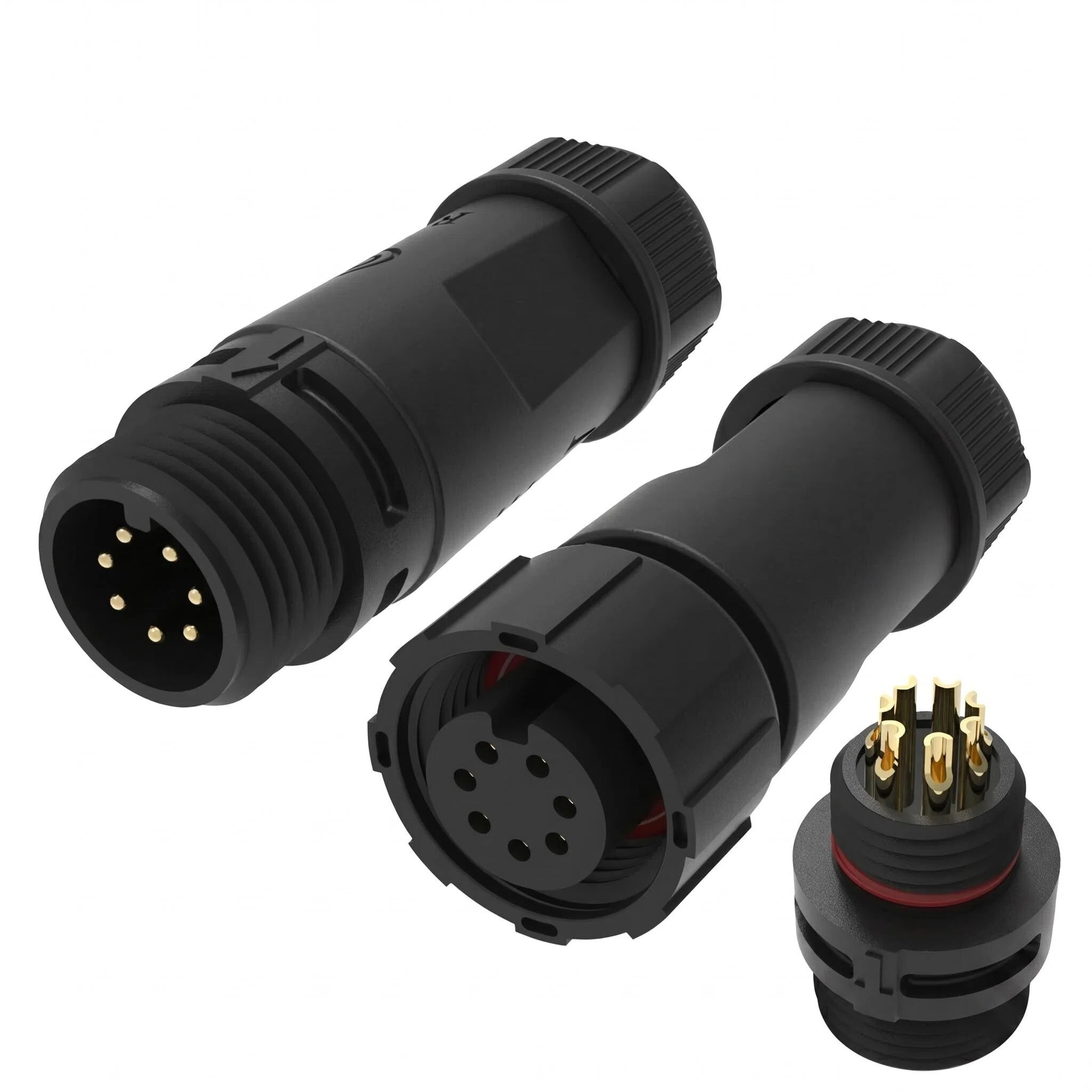

Elecbee M12 7 Pin Circular Connector Set Male Female Straight Solder Connector IP67 IP68 110V 5A
SKU: EB-048-0006-H
Favorites
Key Features
Reliable IP67 IP68 Waterproof Protection: M12 circular connector set helps protect electrical connections from moisture, dust, and outdoor environmental exposure in industrial automation and waterproof cable applications.
Stable AC DC Power and Signal Transmission: Gold-plated brass contacts help improve conductivity and support reliable electrical transmission for industrial sensors, robotics systems, embedded devices, and industrial communication equipment.
Industrial-Grade Mechanical Construction: Durable PA nylon housing combined with epoxy resin reinforced solder termination helps improve vibration resistance and long-term operational stability in demanding industrial environments.
Wide Compatibility for Industrial Equipment: Suitable for industrial automation systems, industrial cameras, waterproof monitoring equipment, LED lighting systems, industrial communication devices, and custom M12 cable assembly projects.
Easy Industrial Cable Integration: Straight solder connector structure supports secure wire installation and simplifies industrial cable manufacturing, embedded system integration, and field maintenance operations.
Show More
Number of Positions
2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin8 PinIn-Stock
Qty.
1
Unit Price
$ 4.71$ 5.54
Ext. Price
$ 4.71$ 5.54
$ 4.71$ 5.54
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male，Female Pin
Number of Positions
7 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+105℃
Shielding
Unshielded
Ingress Protection
IP68
Rated Current
10A
Rated Voltage
110V
Connector Series
M12
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PVC
Packing
Multi-pack Packaging
Contact Material
Copper
Contact Finish
Gold Plated
Insulating Materials
PA
Shell Size
12
Insulation Color
Black
Description
Elecbee M12 7 Pin Circular Connector Set for Industrial Automation and Waterproof Cable Assembly
The Elecbee M12 7 Pin Circular Connector Set is designed for stable AC/DC power and signal transmission in industrial automation systems, industrial communication equipment, robotics devices, embedded systems, industrial sensors, and outdoor electronic applications. Featuring a straight solder connector structure with IP67/IP68 environmental protection, this male female connector set supports reliable long-term operation in demanding industrial environments.
Product Specifications
- Connector Type: M12 Circular Connector Set
- Pin Configuration: 7 Pin
- Gender: Male Female Set
- Connector Style: Straight Inline Connector
- Termination Type: Solder Connector
- Rated Voltage: 110V
- Rated Current: 5A
- Protection Rating: IP67 / IP68
- Cable Outer Diameter: 7.1mm
- Housing Material: PA / Nylon
- Contact Material: Gold-Plated Brass
- Connection Method: Thread Locking
- Operating Temperature: -40°C to +105°C
- Interface Type: AC / DC
Industrial Application Scenarios
This M12 waterproof circular connector is suitable for industrial automation equipment, industrial communication systems, industrial cameras, robotics platforms, sensor networks, embedded controllers, waterproof monitoring equipment, LED lighting systems, smart manufacturing systems, and custom cable assembly applications requiring secure circular connectivity.
Reliable Waterproof and Mechanical Performance
The connector adopts epoxy resin reinforced solder termination technology to help improve wire fixation strength and vibration resistance during industrial operation. Gold-plated brass contacts help improve conductivity and corrosion resistance, while the durable PA nylon housing supports stable waterproof and dustproof protection in harsh industrial environments.
Wide Compatibility for Industrial Systems
Compatible with industrial automation controllers, embedded electronic equipment, industrial communication devices, waterproof power systems, robotics platforms, industrial sensor systems, LED drivers, and custom M12 cable integration projects requiring secure thread-locking connector interfaces.
