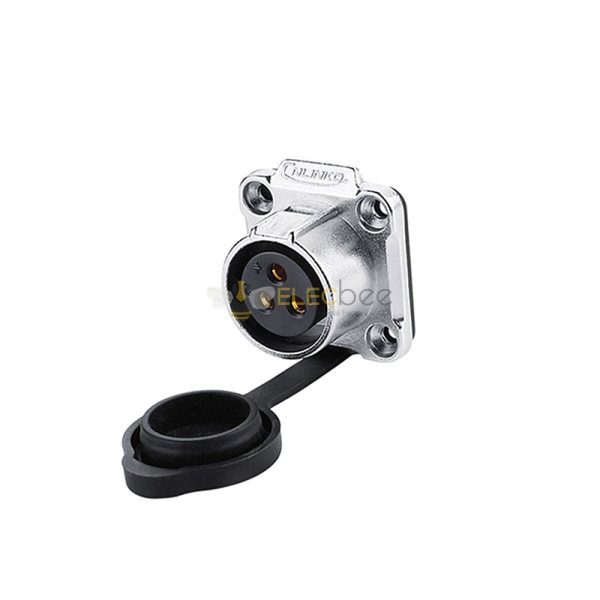

Elecbee LP20 3 Pin Waterproof Socket Flange Socket Panel Circular Connector Welding Wire
SKU: EB-LP20-0013-C
Favorites
Key Features
Packing list: 1 Female Socket.
Easy to Install Electrical Connector:
Cable connection type: Soldering. Cable in-line, threaded coupling, quick connect, solder plug & socket.
Note: Prohibited to charged inserted. The wiring welding temperature requirement is 380℃±40℃
Application:
outdoor electric tools or appliances, medical devices, communications, marine or automatic equipment, underwater equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformers, control box, machines equipment, packing machines, etc
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Female Pin
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+80℃
Ingress Protection
IP67
Rated Current
20A
Rated Voltage
300VAC
Connector Series
LP20
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
14AWG~12AWG
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
A
Perfect for my marine project! The LP20 waterproof socket seals tightly and handles vibration well. Soldering was smooth at 380°C as specified.
M
Good quality connector, easy to install on panel. Threaded coupling works great, but wish it came with installation instructions.
D
Exactly what I needed for a custom lighting rig. The 3-pin circular design saves space and the weld joint holds strong.
W
Works fine, but soldering requires precision. Be careful with heat—almost damaged the housing going above 400°C.
T
Great build and fully waterproof as advertised. Used in an outdoor EV cart—no issues after weeks of rain.
