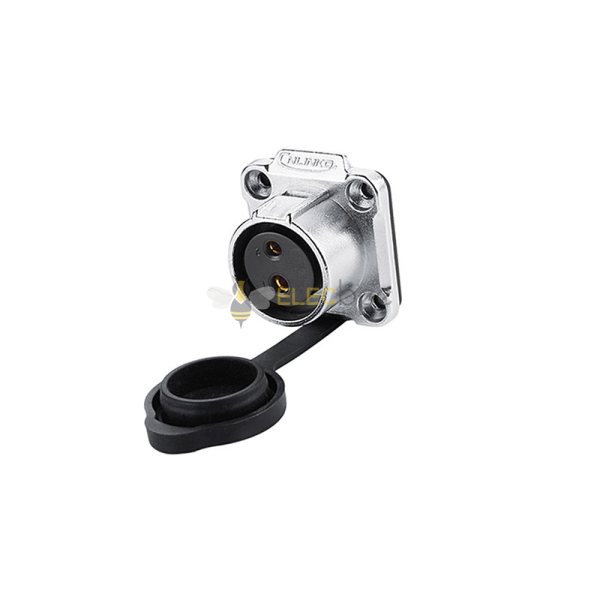

Elecbee LP20 2 Pin Waterproof Female Socket Panel Power Waterproof Aviation Receptacle With Cover
SKU: EB-LP20-0012-C
Favorites
Key Features
Packing list: 1 Female Socket.
Easy to Install Electrical Connector:
Cable connection type: Soldering. Cable in-line, threaded coupling, quick connect, solder plug & socket.
Note: Prohibited to charged inserted. The wiring welding temperature requirement is 380℃±40℃
Application:
outdoor electric tools or appliances, medical devices, communications, marine or automatic equipment, underwater equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformers, control box, machines equipment, packing machines, etc
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+80℃
Ingress Protection
IP67
Rated Current
20A
Rated Voltage
300VAC
Connector Series
LP20
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
14AWG~12AWG
