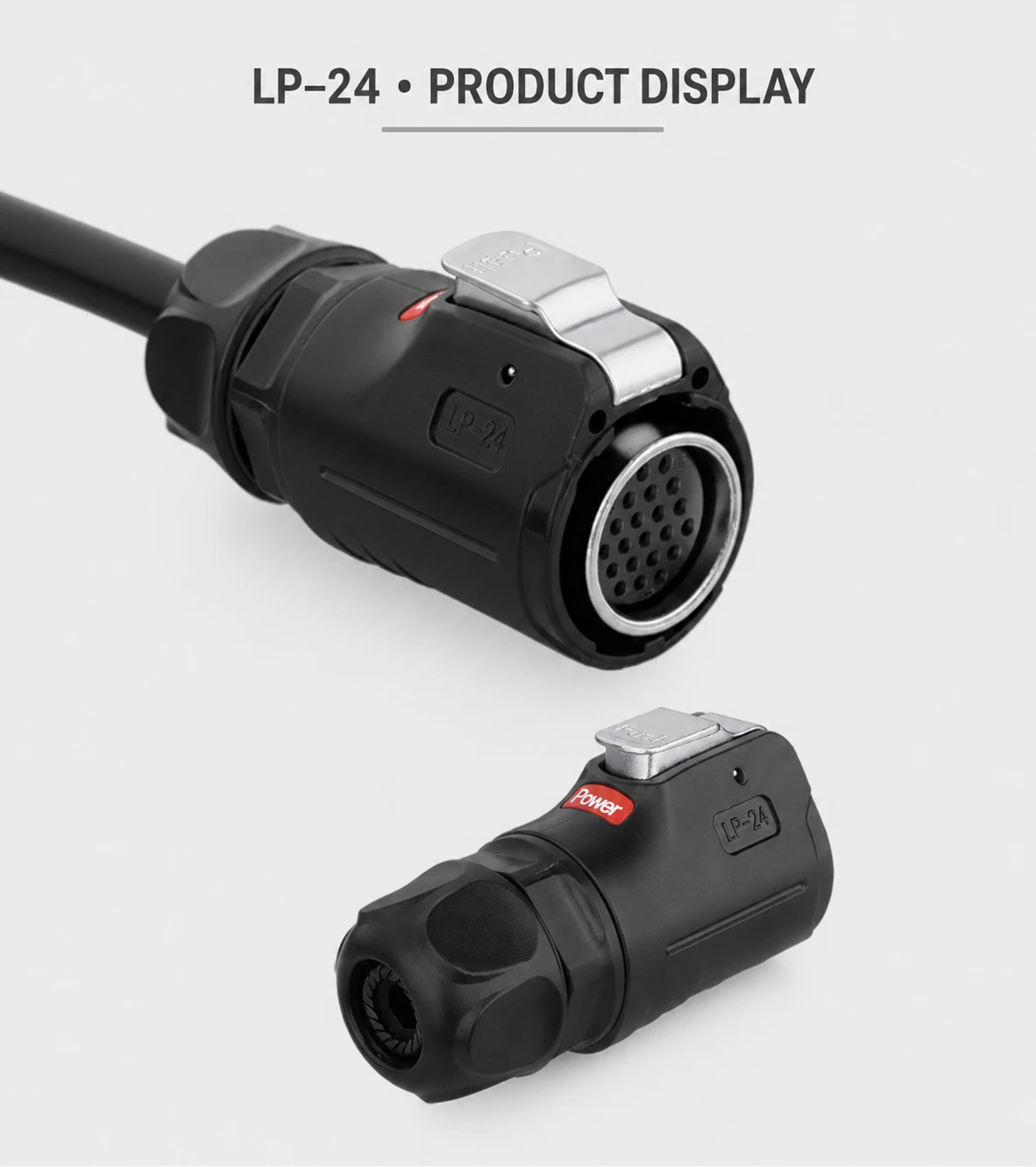

Elecbee LP-24 power connector 24-pin male max. 5 A IP67
SKU: EB-LP-24-C24PE-01-001
Favorites
Key Features
protection class:IP67 certified
Typ:LP-24 Series Cable Connector male
High Quality with 30 days 100% Money back
From the OEM Original Factory, same quality with much better price
Show More
In-Stock
Qty.
1
Unit Price
$ 16.62
Ext. Price
$ 16.62
$ 16.62
Qty.
Unit Price
Ext. Price
10+
$15.79
$ 157.90
20+
$14.96
$ 299.20
100+
$13.30
$ 1330.00

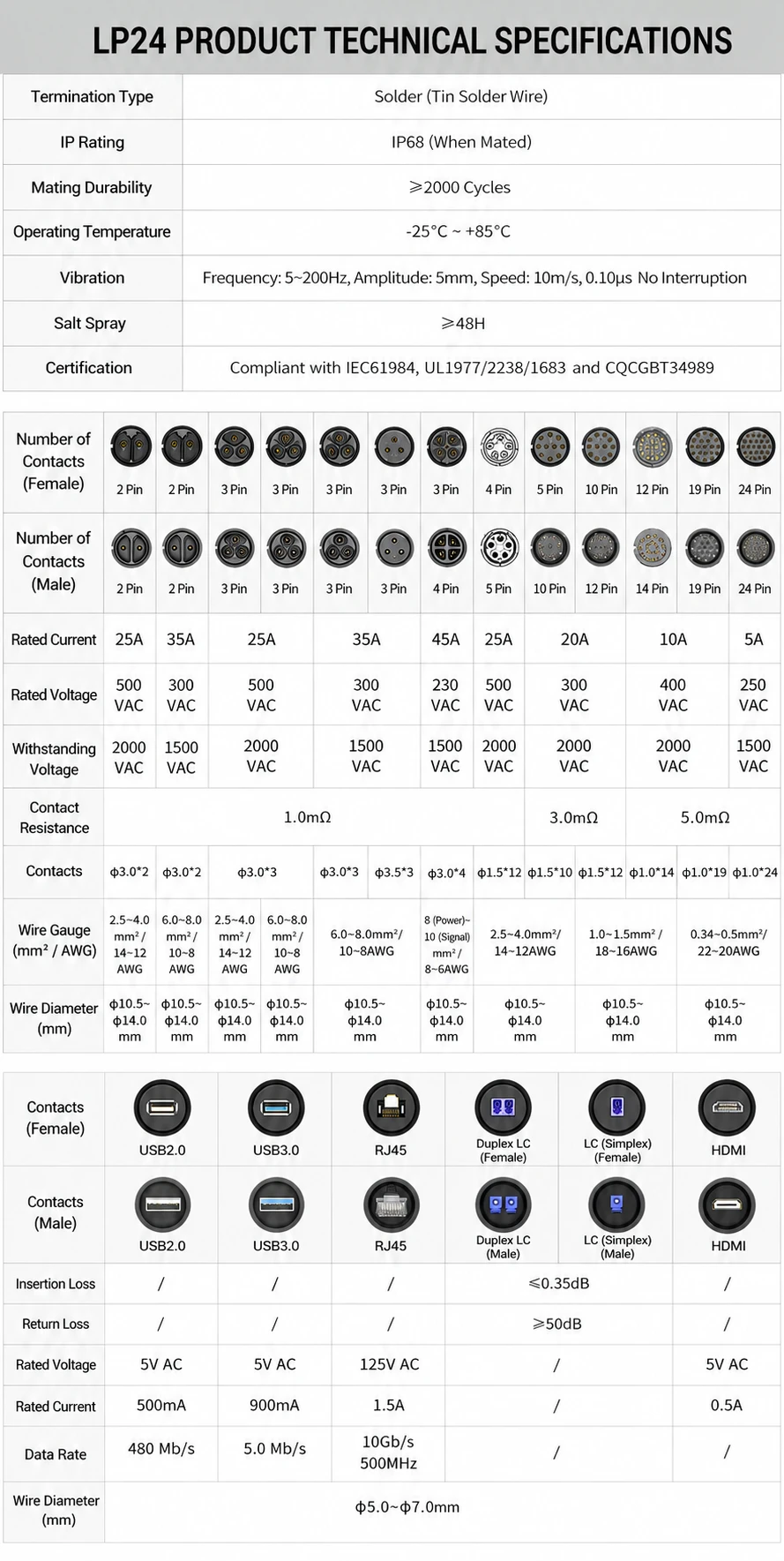

Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Male Pin
Number of Positions
24 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+80℃
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
250VAC
Connector Series
LP24
Color
Black
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy,Plastic
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
22AWG~20AWG
Description
