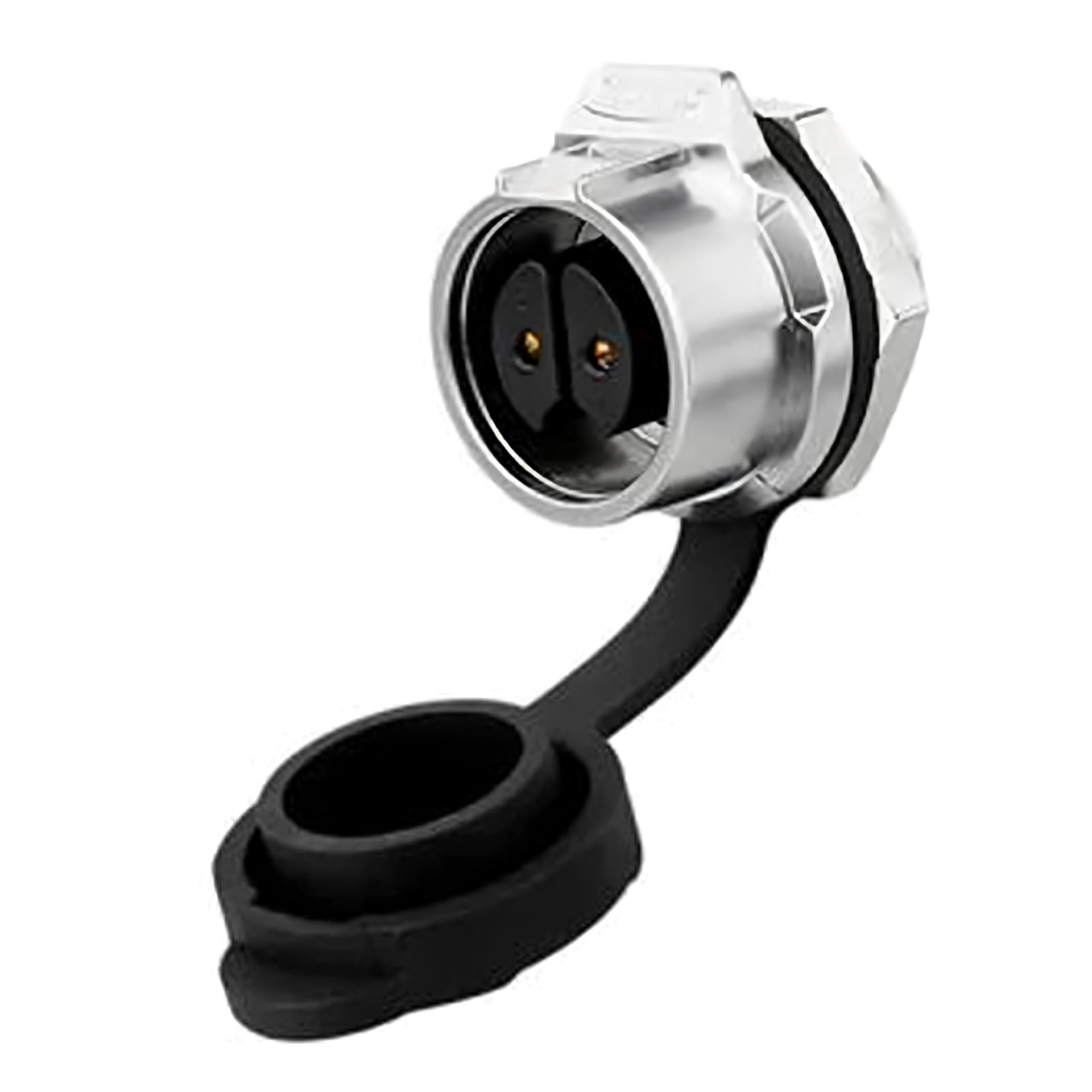

Elecbee LP-16 M16 2-Pin IP67 Power Receptacle – 400V/10A Metal Lock w/ Quick-Connect
SKU: EB-LP-16-J02SX-03-101
Favorites
Key Features
400V/10A High-Current: Heavy-duty 2x Ø1.50mm gold sockets; ideal for motors/transformers.

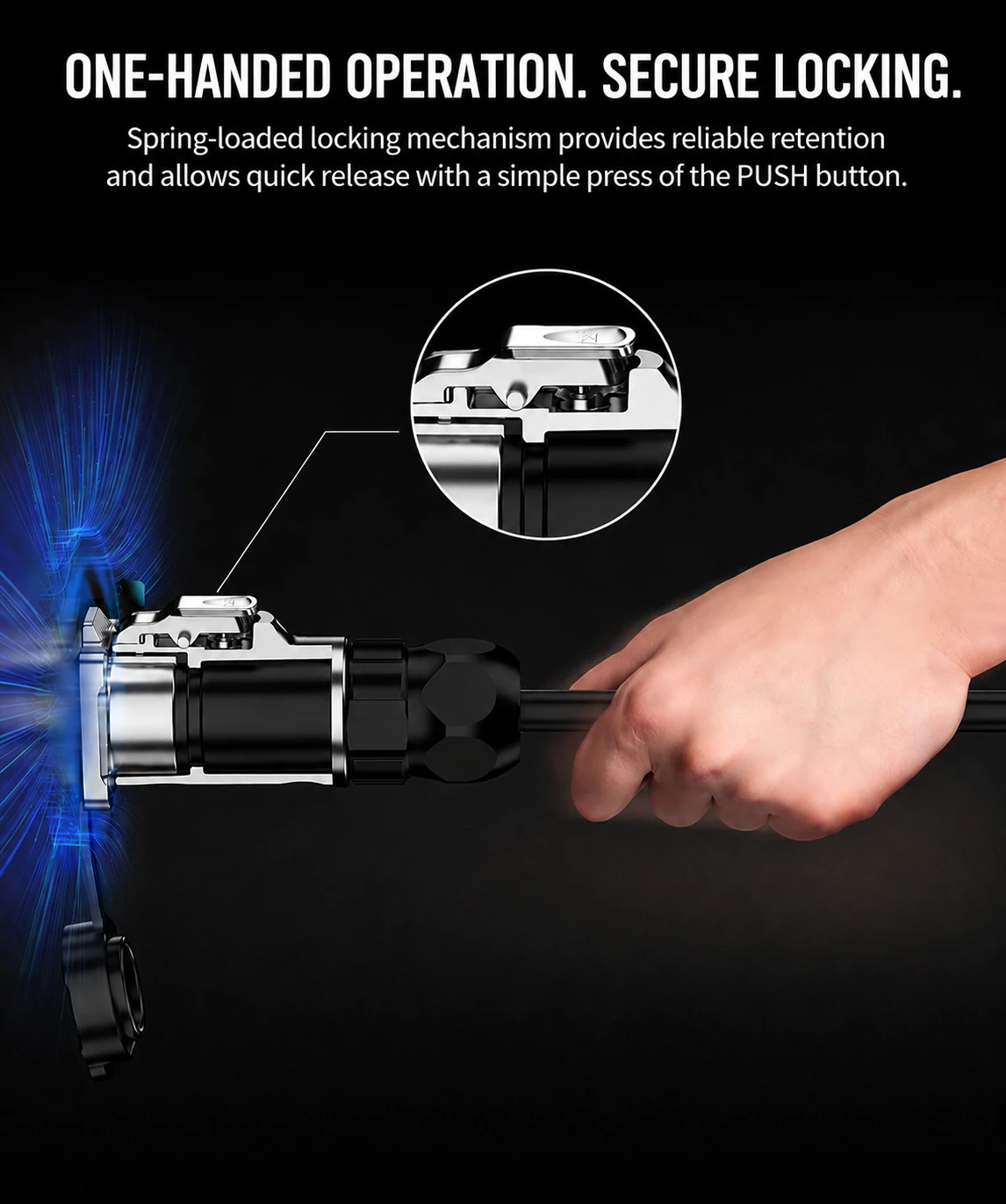

Metal Lock & IP67 Seal: Vibration-proof secure connection; withstands washdown environments.

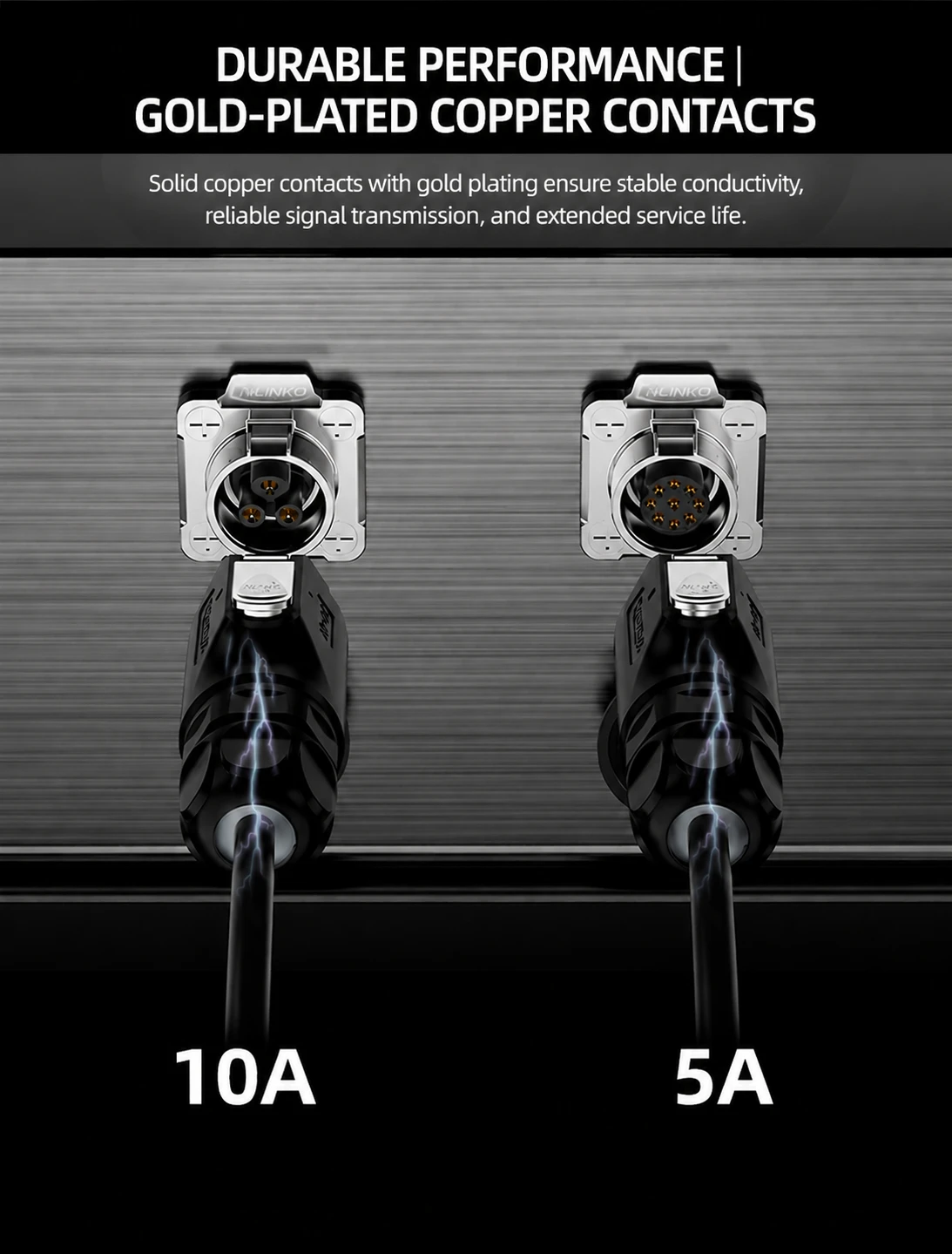

Gold-Plated Zero-Drop Contacts: Corrosion-resistant for stable 10A transmission in humidity.

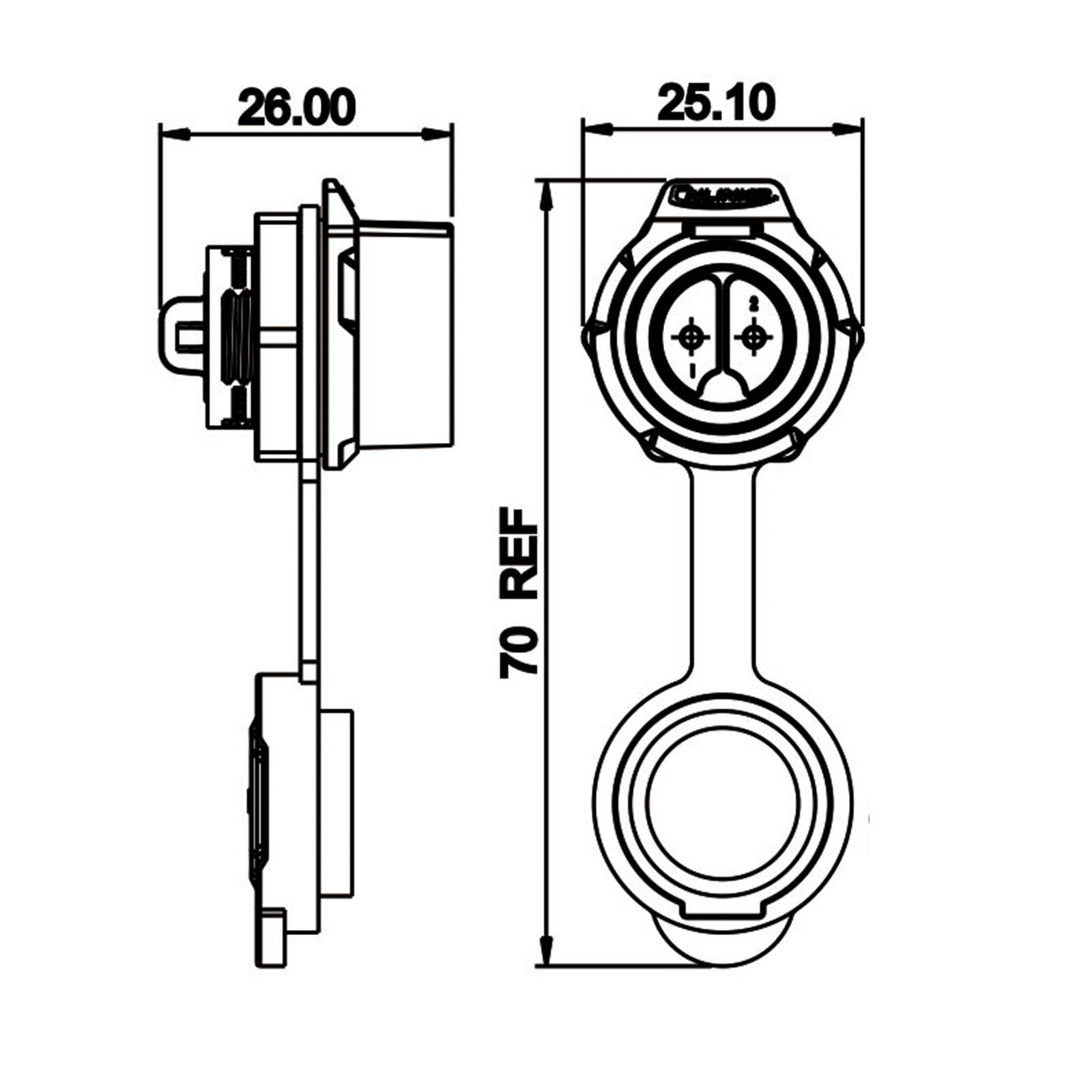

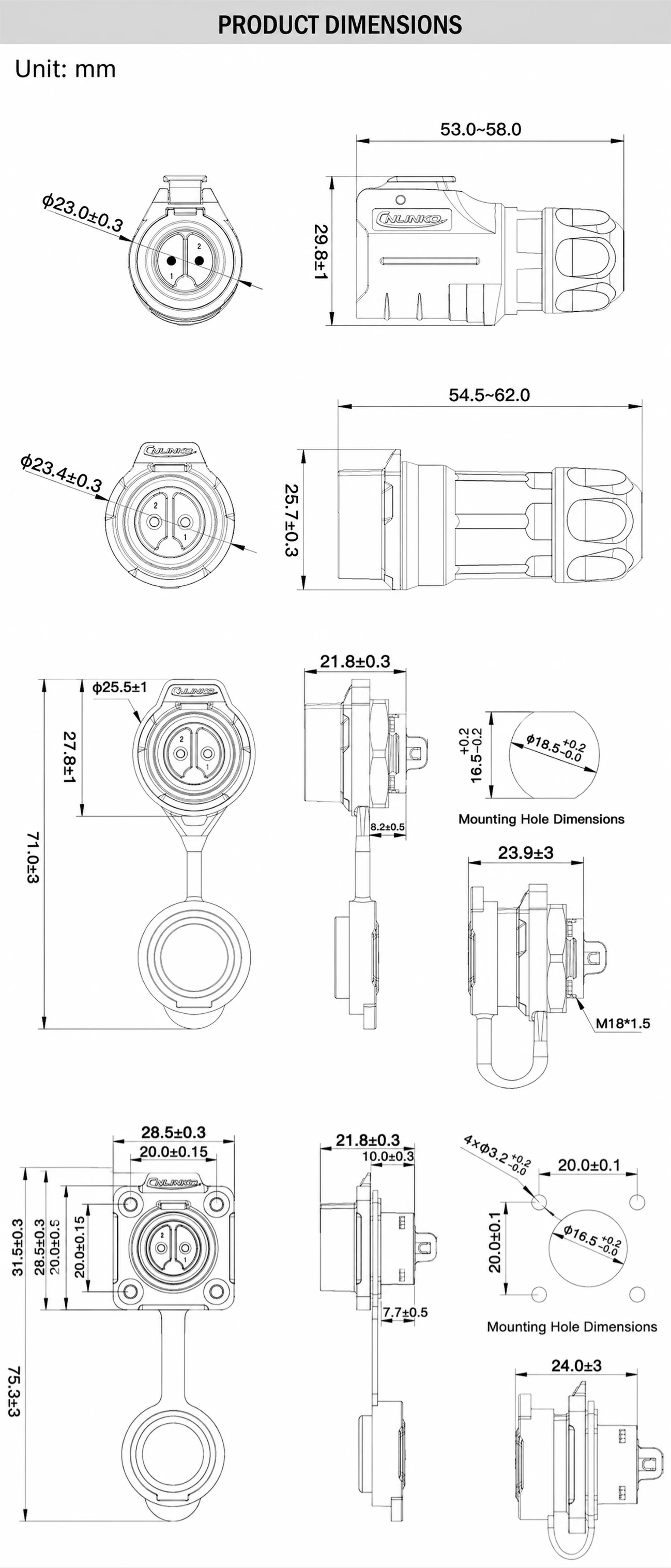

25.1mm Ultra-Slim Profile: 26.1mm height saves panel space vs. standard 30mm+ rivals.
One-Hand Quick-Connect: Tool-free plug/unplug; AWG 16-18 cable compatibility.
Show More
In-Stock
Qty.
1
Unit Price
$ 6.09
Ext. Price
$ 6.09
$ 6.09

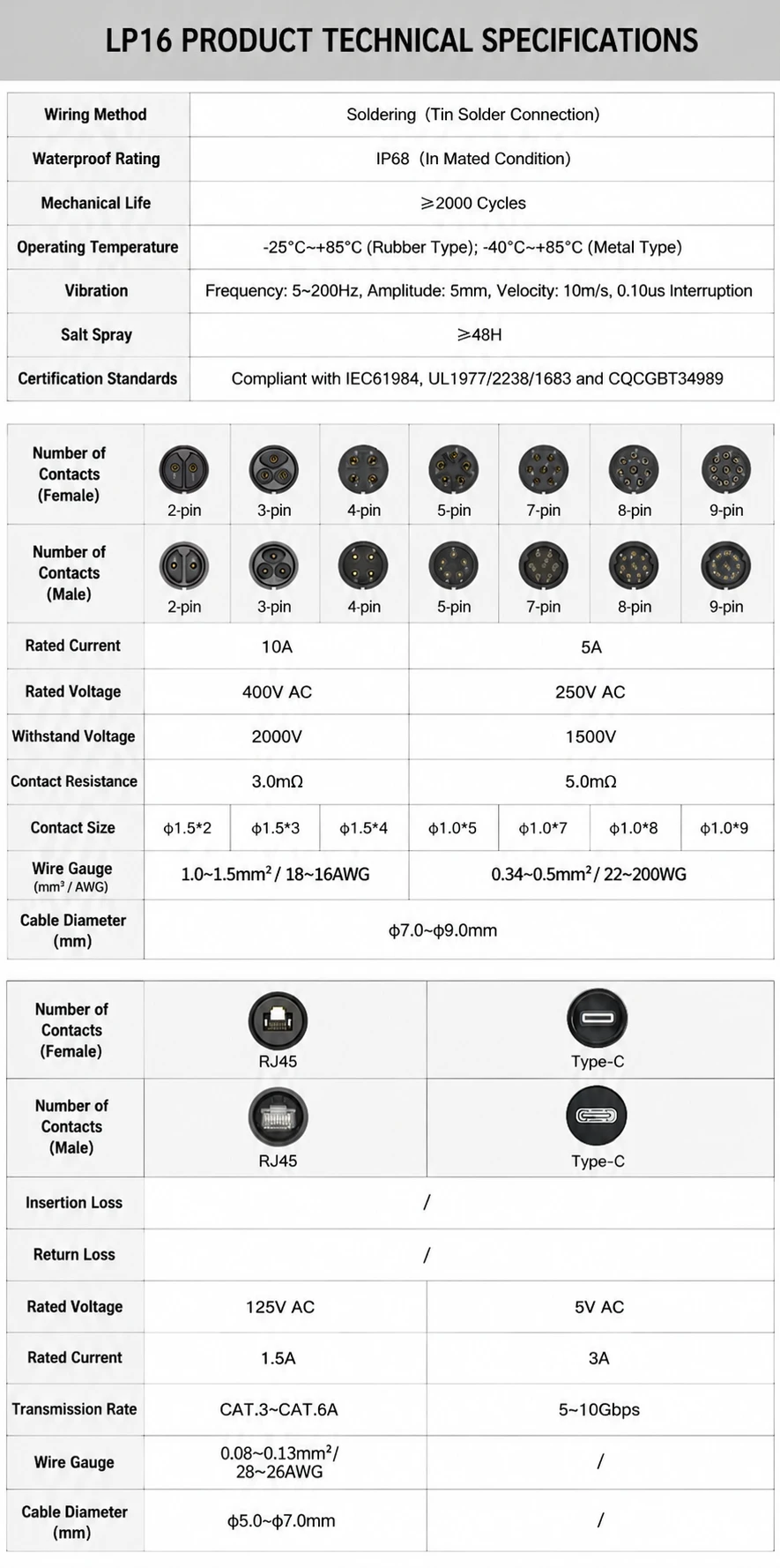

Specifications
Attribute
Value
Search
Connector Type
Receptacle

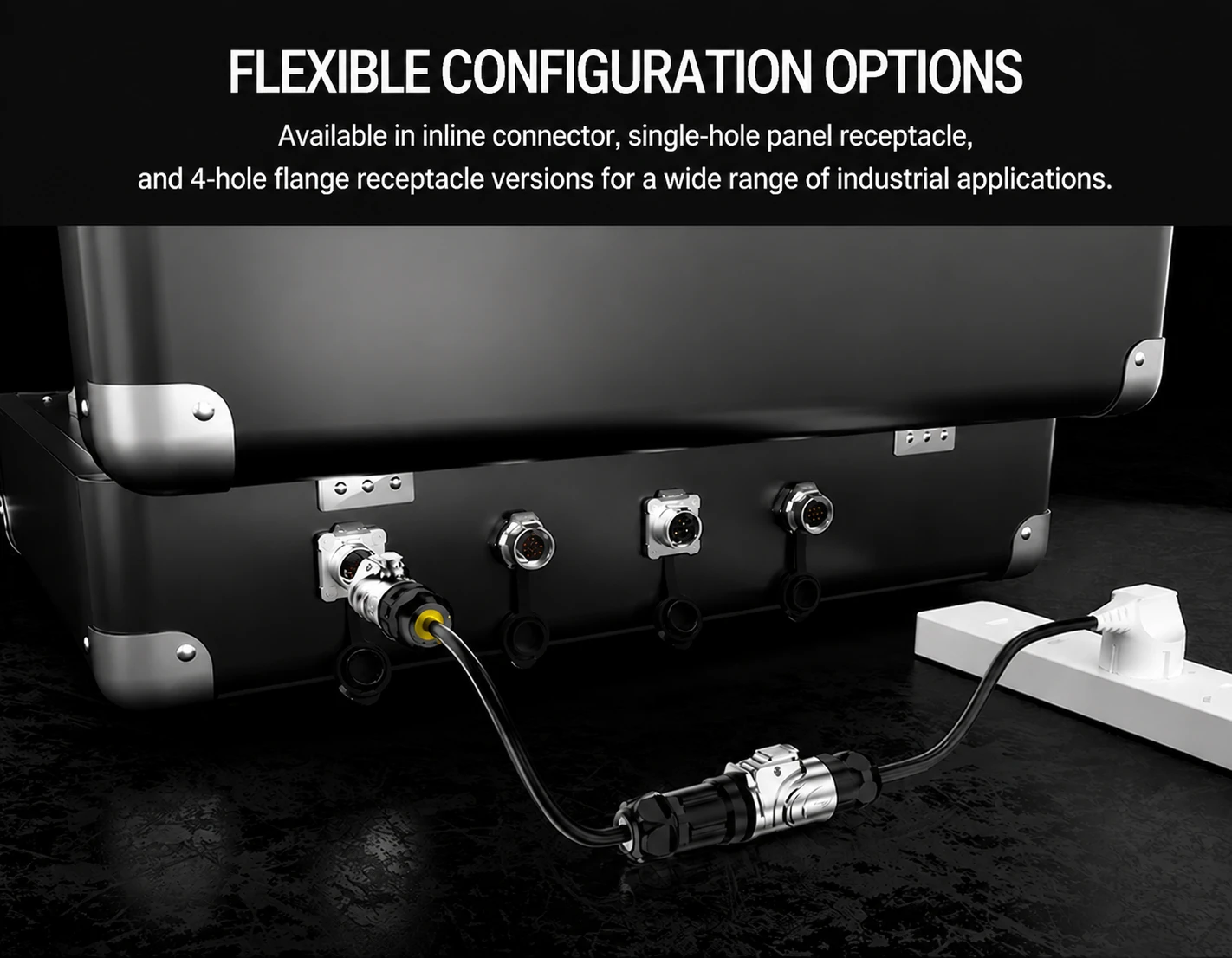

Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+80℃
Ingress Protection
IP67
Rated Current
10A
Rated Voltage
400VAC
Connector Series
LP16
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
18AWG~16AWG
