Elecbee LP-16 IP68 USB-C 3.1 Panel Mount Socket - 24-Pin Industrial Feed-Through
SKU: EB-LP-16-J-TYPE-C31-215-SX-42-101
Favorites
Key Features
IP68 DUST/IMMERSION PROOF: Withstands salt spray (48h), floods, and industrial debris per EN60529.
ONE-CLICK SNAP-LOCK MECHANISM: Faster than threaded types - 3X install speed for robotics/3D printers.
USB 3.1 DATA + 3A POWER: 24 gold-plated pins for 5Gbps & charging in medical/automation gear.
UL94V-0 FLAME-RETARDANT SHELL: Operates at -40°C to +80°C (factory freezers to desert machinery).
3.2MM PANEL FEED-THROUGH DESIGN: Tool-free install for control boxes, digital signage & event rigs.
Show More
Description

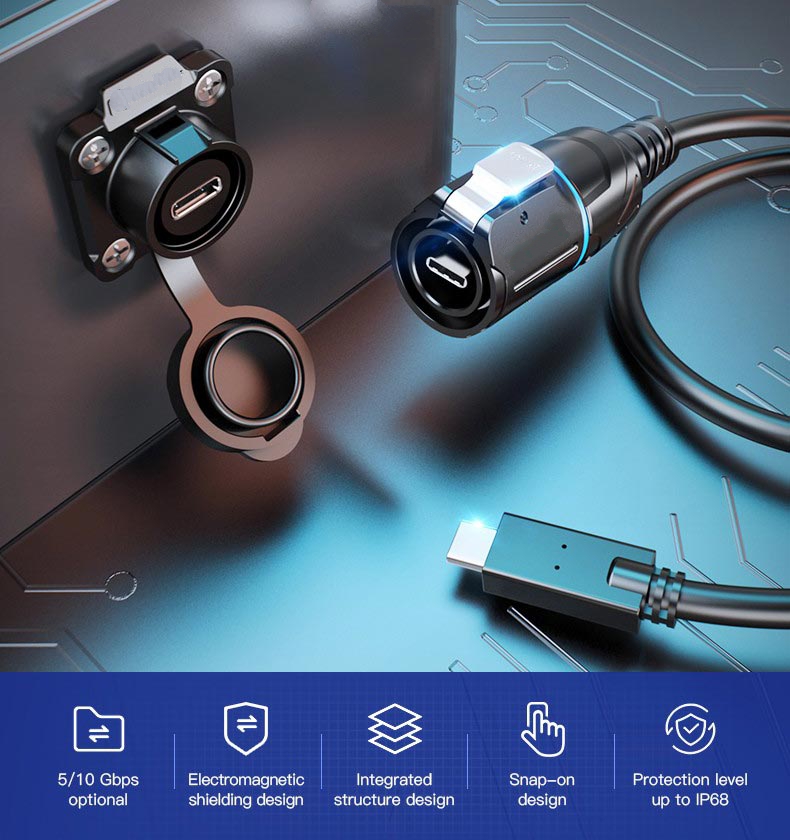

LP16 USB-C3.1 Data Waterproof Connector
High-speed transmission of data & power with the same interface

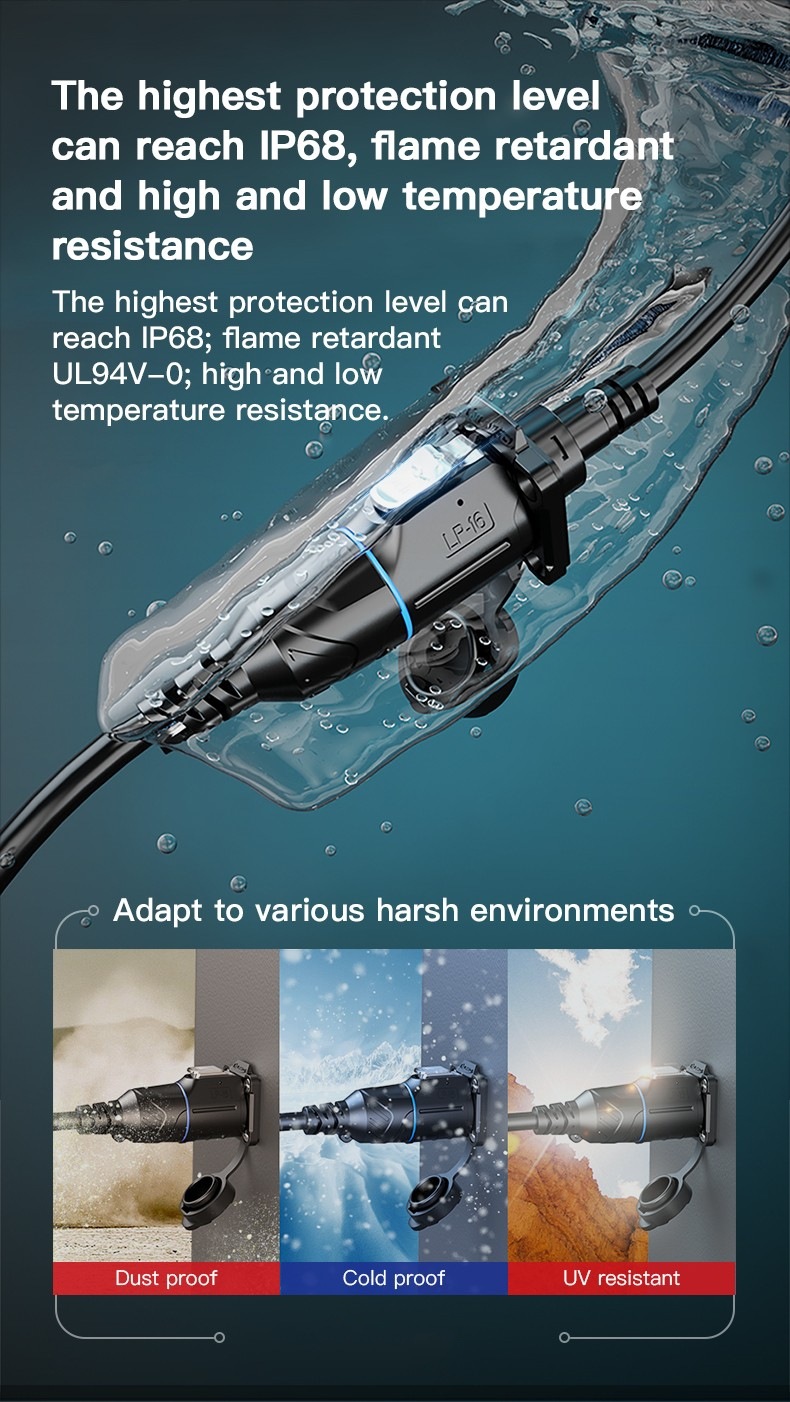

IP68 Protection Level
The highest protection level can reach IP68, flame retardant and high and low temperature resistance
The highest protection level can reach IP68; flame retardant UL94V-0; high and low temperature resistance.

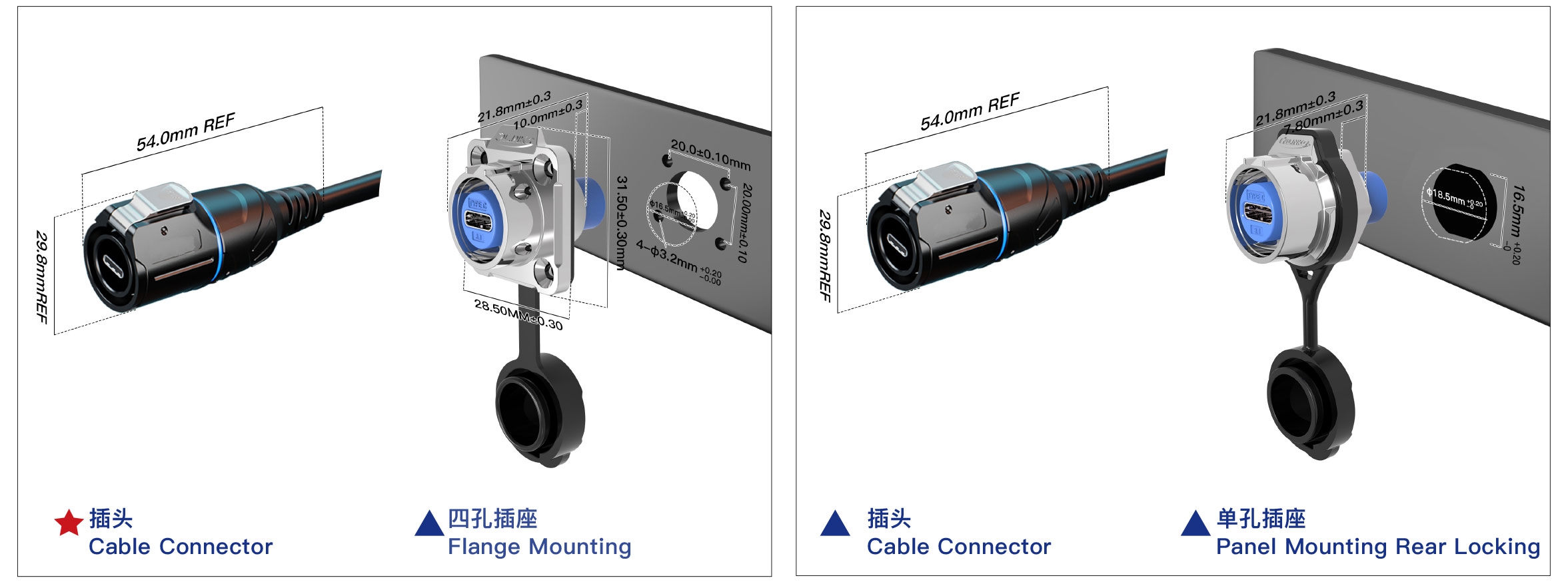

Dimensions
