USB, DVI, HDMI, DP Connector Assemblies

Our portfolio of interface connector assemblies is built for precision and versatility, offering significant benefits for design engineers and manufacturers:

• Complete, Ready-to-Integrate Units: Each product in this category is a fully assembled connector, eliminating the need for complex in-house assembly of multiple loose components. This streamlines your manufacturing process, reduces assembly time, and minimizes potential errors.
• Guaranteed Quality & Performance: As factory-assembled units, these connectors undergo rigorous quality control to ensure proper alignment, secure contact retention, and optimal electrical performance. This consistency is vital for maintaining signal integrity and long-term reliability in demanding applications.
• Broad Compatibility: We offer a wide array of standardized connector types, ensuring universal compatibility and ease of integration into your existing designs and systems. This includes:

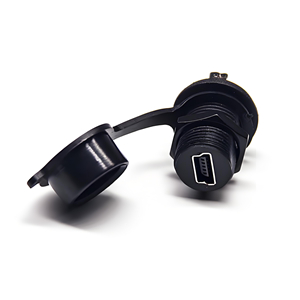

  • USB (Universal Serial Bus) Connector Assemblies: Encompassing USB-A, USB-B, USB-C, Micro-USB, and Mini-USB variants. These assembled units provide versatile ports for power delivery and data transfer, crucial for computers, mobile devices, and consumer electronics. USB-C assemblies, in particular, offer reversible plug orientation and support for high power and alternative modes.

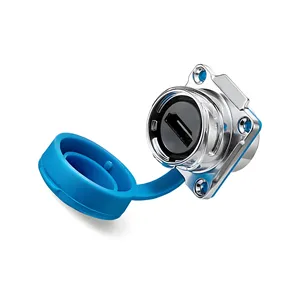

  • HDMI (High-Definition Multimedia Interface) Connector Assemblies: Available in standard, Mini-HDMI, and Micro-HDMI forms. These complete connector units are the industry standard for transmitting uncompressed digital audio and video signals, widely used in TVs, monitors, and multimedia devices.

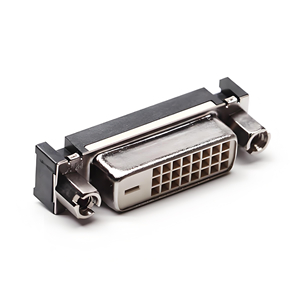

  • DVI (Digital Visual Interface) Connector Assemblies: Including DVI-A (Analog), DVI-D (Digital), and DVI-I (Integrated) types. These assembled connectors primarily provide digital video interface ports for monitors and projectors, ensuring reliable visual output.
  • DisplayPort (DP) Connector Assemblies: Offering high-bandwidth digital display interface units, these are commonly found on modern graphics cards and professional monitors, supporting high resolutions and multiple display configurations.
  • DMS-59 Connector Assemblies: Specialized assembled units primarily used on graphics cards to provide dual DVI or VGA outputs from a single port.
  • FireWire (IEEE 1394) Connector Assemblies: Complete connector units for high-speed data transfer, often used in professional audio/video equipment.
• Key Electrical & Mechanical Characteristics: Each connector assembly is defined by critical specifications essential for proper application and performance:
  • Number of Contacts: Varies by type, influencing data lanes, power lines, and signal grounds.
  • Gender: Available as Male (Plug) Assemblies or Female (Receptacle/Jack) Assemblies, ensuring proper mating.
  • Mounting Type: Offered in diverse options such as Panel Mount, PCB Mount (Through-Hole and Surface Mount), and Cable End Termination Assemblies (designed to be terminated onto a cable by the user), providing extensive design flexibility.
  • Current Rating & Voltage Rating: Crucial electrical parameters defining the maximum safe operating limits.

Applications Across Diverse Electronic Systems:

Our USB, DVI, HDMI, and DisplayPort Connector Assemblies are indispensable components for creating reliable interface ports in a wide range of electronic applications:

• Computing & Peripherals: Integrated into motherboards, graphics cards, external hard drives, and docking stations.
• Consumer Electronics: Used in smart TVs, gaming consoles, set-top boxes, and multimedia players as critical I/O ports.
• Professional AV Equipment: Employed in video switchers, matrix systems, and audio interfaces for robust signal routing.
• Industrial & Commercial Displays: Integrated into digital signage, control panels, and medical imaging equipment.
• Test & Measurement Devices: Providing reliable connection points for diagnostic and analytical instruments.

Explore our comprehensive range of USB, DVI, HDMI, and DisplayPort Connector Assemblies and empower your product designs with reliable, high-quality, and ready-to-integrate interface solutions.
